OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
FC/FCoE
140
Note: Masked LUNs cannot be ExpressLane enabled because they are not presented
to the host. Conversely, ExpressLane LUNs cannot be masked.

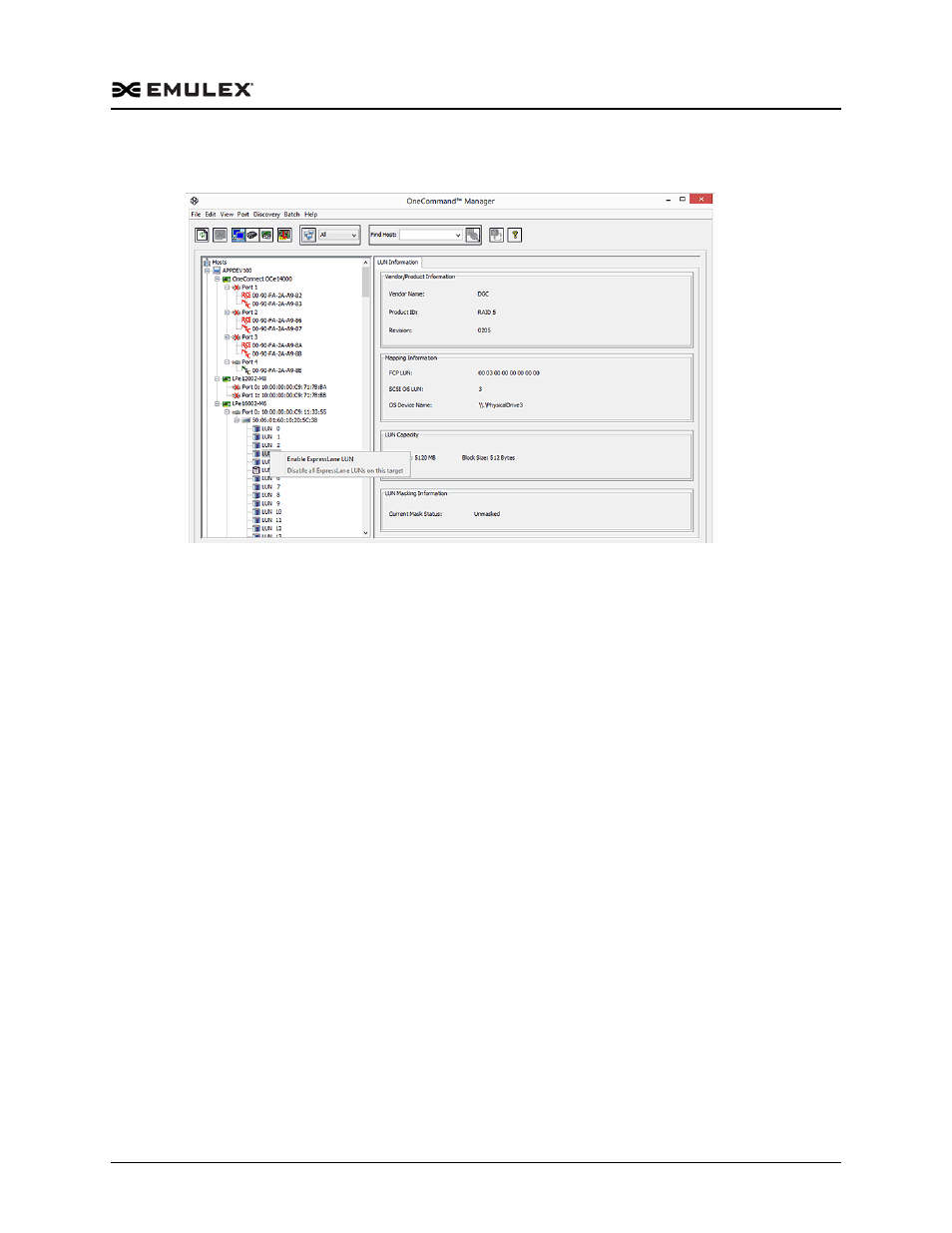

Figure 8-18 Enabling an ExpressLane LUN
To enable an ExpressLane LUN:
1. Select Host, Fabric or Virtual Port view.
2. From the discovery-tree, select an LPe15000 or LPe16000 series adapter.
3. Select the LUN on which you want to enable ExpressLane. The LUN Information
tab appears.
4. Right-click on the selected LUN in the discovery-tree and choose Enable
ExpressLane LUN. The LUN’s icon in the discovery-tree changes to the
ExpressLane LUN icon.
To disable an ExpressLane LUN or LUNs:
1. Select Host, Fabric or Virtual Port view.
2. From the discovery-tree, select an LPe15000 or LPe16000 series adapter.
3. Select the ExpressLane LUN you want to disable. The LUN Information tab
appears.
4. Right-click on the selected LUN in the discovery-tree and choose Disable
ExpressLane LUN to disable the selected LUN or Disable all ExpressLane LUNs
on this target. The ExpressLane LUN’s icon in the discovery-tree changes to the
regular LUN icon.
Changing FC/FCoE World Wide Port and Node Names
The Maintenance tab enables you to change the World Wide Port Name (WWPN) and
the World Wide Node Name (WWNN) of a selected adapter port. For example, you
might want to use an installed adapter as a standby in case another installed adapter
