OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
OCe14000-Series Adapters
236

Bandwidth % – The percentage of available link bandwidth allocated to a
particular Priority Group.
DCB Tab Buttons

Configure DCB – Click to configure DCB parameters. See the instructions
below.
To configure DCB for FCoE adapter ports:
1. From the discovery-tree, select the adapter port whose DCB properties you want to
configure.
2. Select the DCB tab.
3. Click Configure DCB. The Configure DCB dialog box appears.
4. Configure the settings you want and click OK.
Note: An error message is displayed if you try to configure more priority groups
than the adapter supports. The “Max Configurable PGs” field in the ETS
Priority Groups area shows the number of priority groups supported by the
adapter.

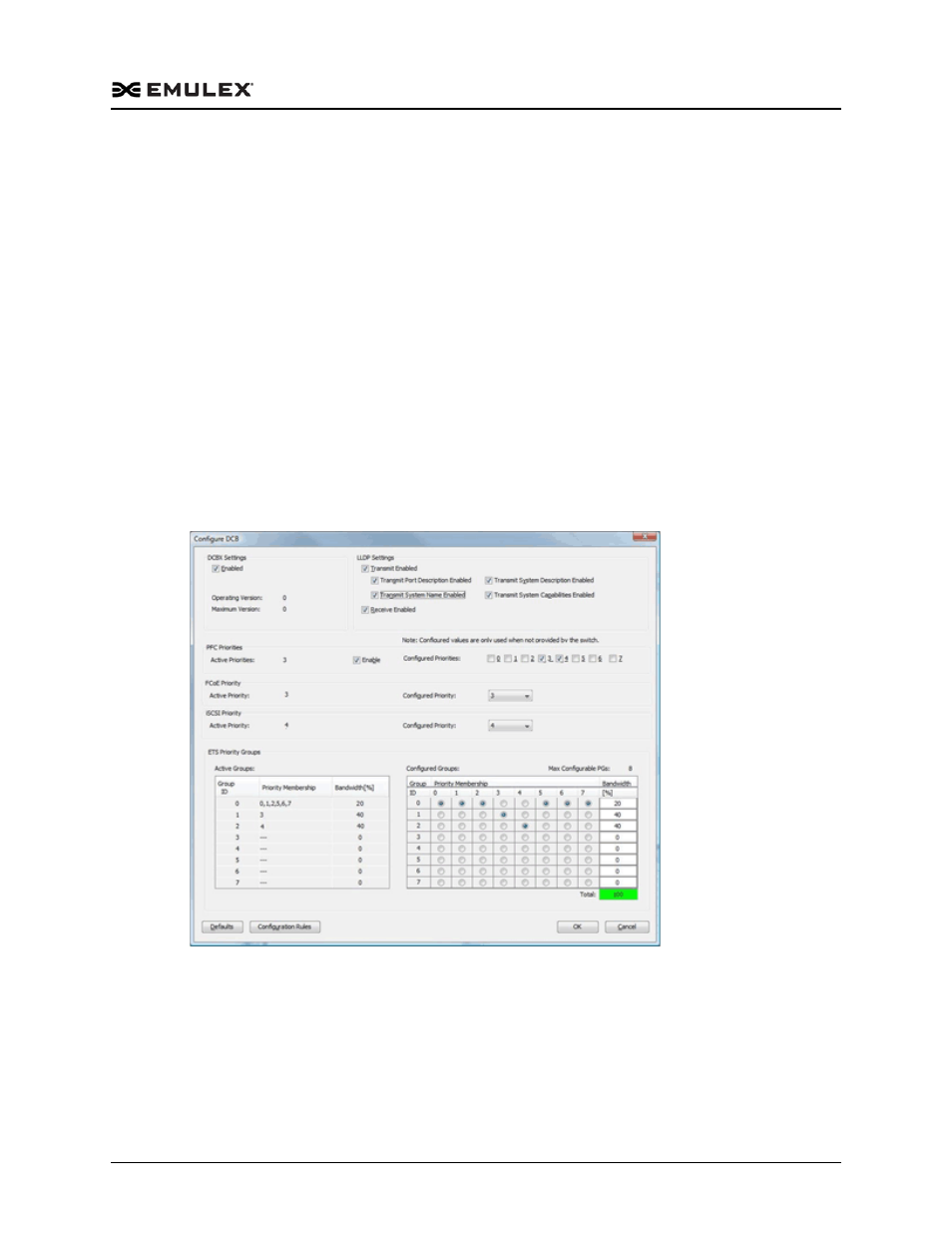

Figure 8-88 Configure DCB Dialog Box for FCoE/iSCSI Adapter Ports (DCBX Enabled)
Configure DCB Dialog Box Field Definitions
DCBX Settings Area
