OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
9. Diagnostics
OneConnect Diagnostic Tests
1322

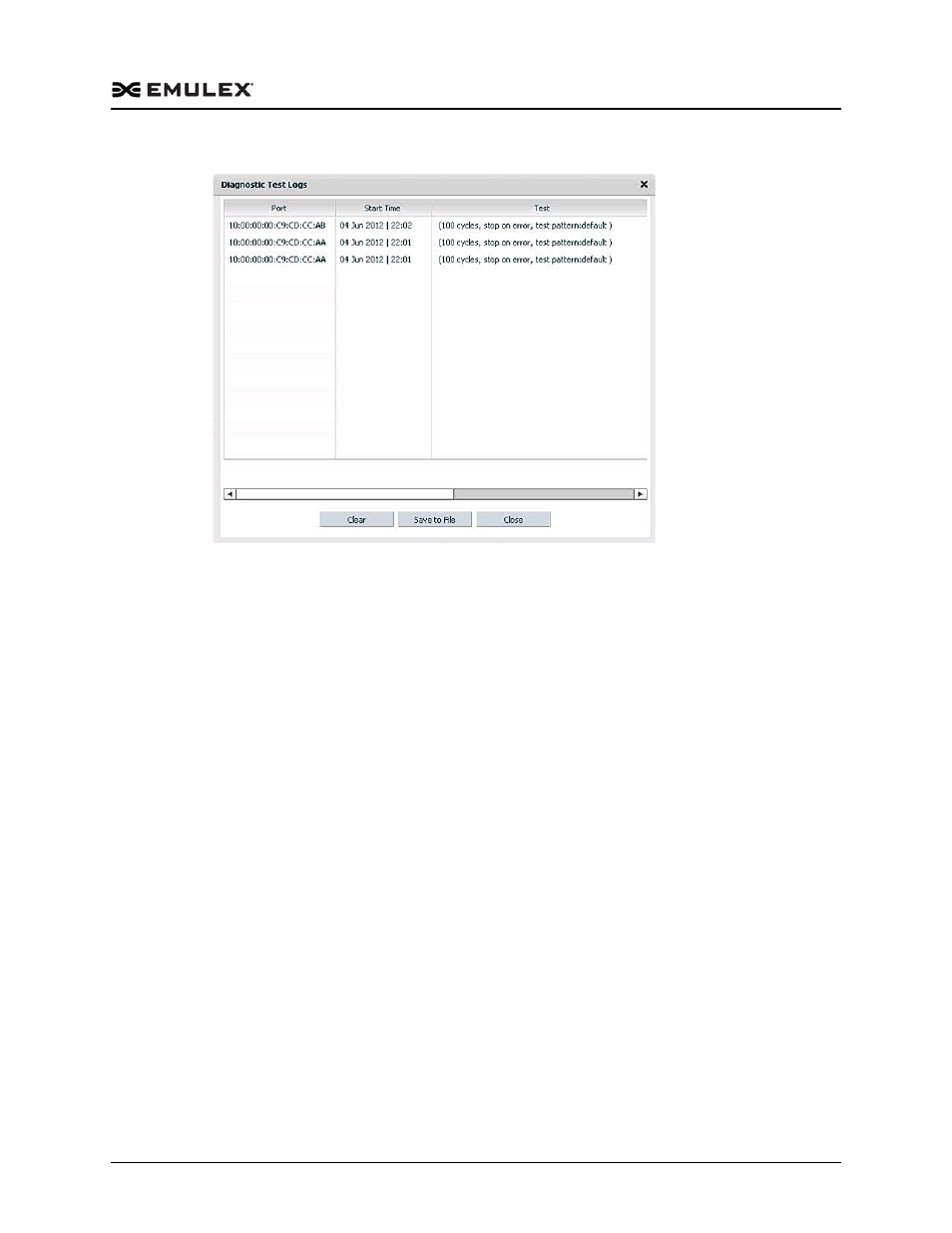

Figure 9-14 Diagnostic Test Log Entries
To save the log file:
1. After running a test from the Diagnostic tab, click Show Test Logs. The Diagnostic
Test Logs dialog box appears. The default name of a saved file is DiagTest.log.
2. Browse to the desired directory, change the log file name if you want and click Save
to File.
Creating OneConnect Adapter Port Diagnostic Dumps
Diagnostic dump enables you to create and manage a diagnostic dump for a selected
OneConnect adapter port. Dump files contain information, such as firmware version
and driver version for example, that is particularly useful when troubleshooting an
adapter.
To start a diagnostic dump:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the port.
3. Select the Diagnostic Dump tab. The Diagnostic Dump information pane appears.
