Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
3. Configuring PXE Boot for NIC on OCe14000-series Adapters
Using the PXESelect Utility
1541
Use the left or right arrow keys to select the desired personality.

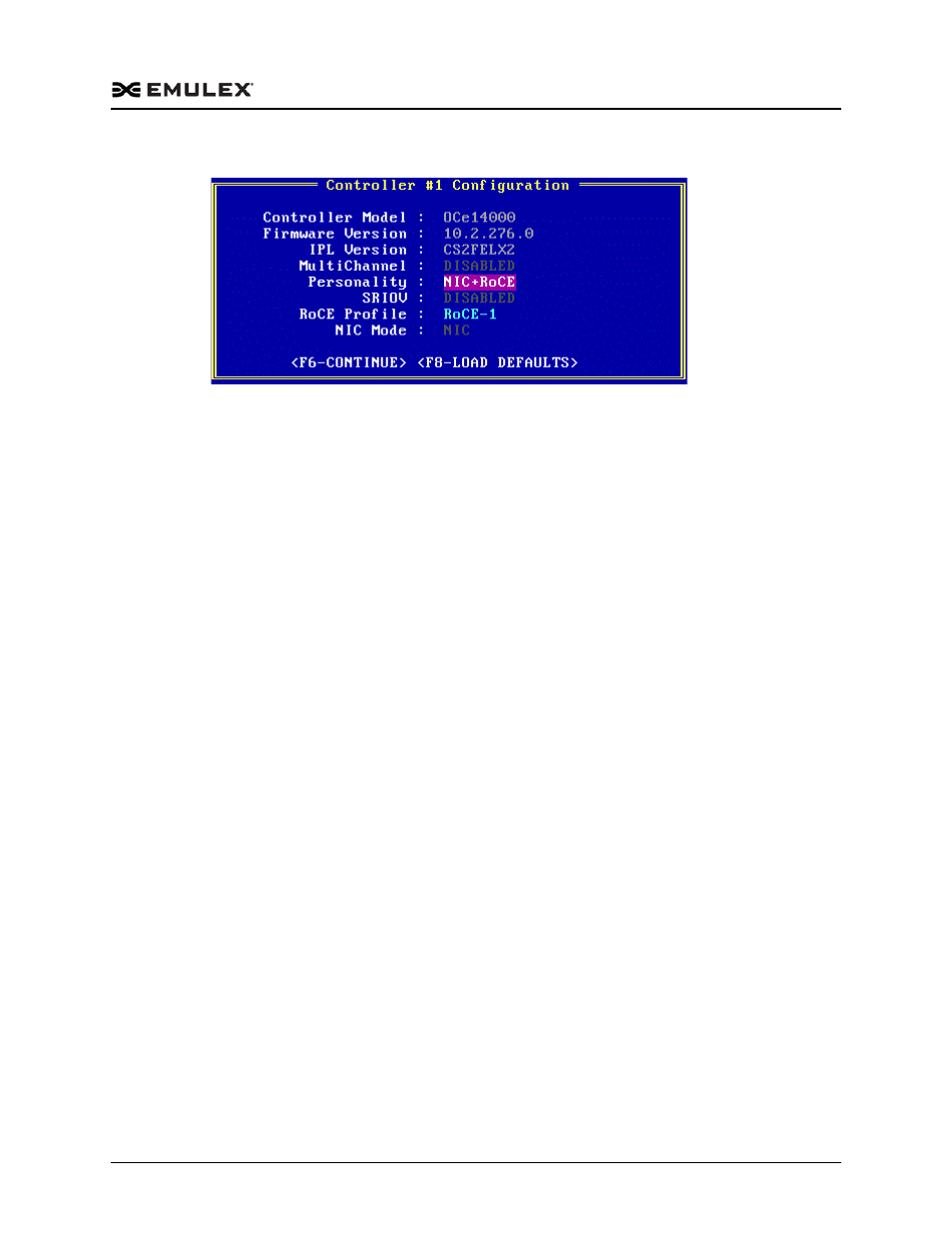

Figure 3-5 Configure Controller Screen – Personality Selection
2. Press to save.
Note: Changing the Personality setting requires a reboot before the change will
take effect. A reboot will occur when you exit the PXESelect utility if the
Personality setting has changed since the last boot.
Configuring the RoCE Profile
Note: The RoCE Profile setting is only available when the NIC+RoCE personality is
selected.
The RoCE profile allows you to select the appropriate profile for your particular system
setup. The RoCE profile choices include:

RoCE-1 – For the RoCE-1 profile, check the Implementer's Lab on the Emulex
website for any updated information on use cases for the RoCE-1 profile.

RoCE-2 – Choose the RoCE-2 profile for SMB Direct on Windows Server 2012
and Windows Server 2012 R2.
To select a RoCE Profile:
1. From the Configure Controller screen, ensure that the NIC+RoCE personality is
selected.
2. Use the up or down arrow keys to select RoCE Profile.
3. Use the left or right arrow keys to select the desired profile and press .
4. Press to save.
Configuring SR-IOV
If your system BIOS supports SR-IOV, you can enable it on the adapter. SR-IOV
support can only be enabled when multichannel is disabled or not supported.
Note: When SR-IOV is enabled, the NIC+RoCE personality setting is unavailable.
To configure SR-IOV:
1. From the Configure Controller screen, use the up or down arrow keys to select
SRIOV.
