Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
3. Configuring PXE Boot for NIC on OCe14000-series Adapters
Using the PXESelect Utility
1543
2. Select the port you want to configure and press . The Port Menu appears.

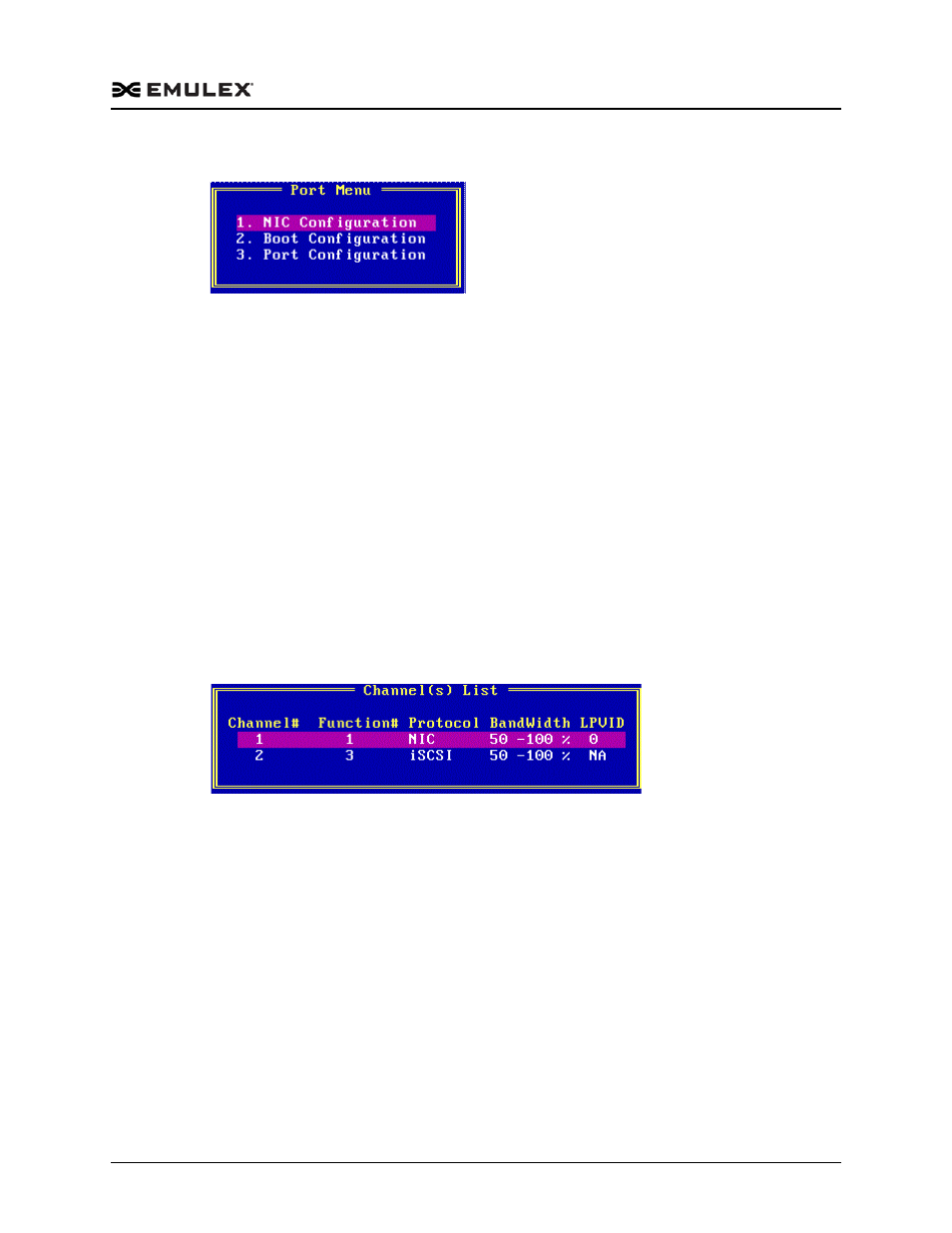

Figure 3-7 Port Menu Screen
The Port Menu screen enables you to perform the following tasks:

View NIC configuration information – see “Viewing NIC Configuration
Information” on page 1543 for additional information.

Configure boot options – see “Configuring Boot Options” on page 1544 for
instructions.

Configure port options – see “Configuring Port Options” on page 1545 for
instructions.
Viewing NIC Configuration Information
To view the NIC configuration information:
1. From the Port Menu screen, use the up or down arrow keys to select 1. NIC
Configuration and press . Depending on the currently selected Personality
setting, one of the following screens will appear.

If the Personality setting is set to iSCSI or FCoE, the Channel(s) List screen
appears.
Figure 3-8 Channel(s) List Screen
Select a channel using the up or down arrow keys and press . The
Configure Channel screen appears.
