Dell Emulex Family of Adapters - Manual (Page 1295)

OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
7. Updating Firmware
Performing a Batch Firmware Update in Cluster View
1295

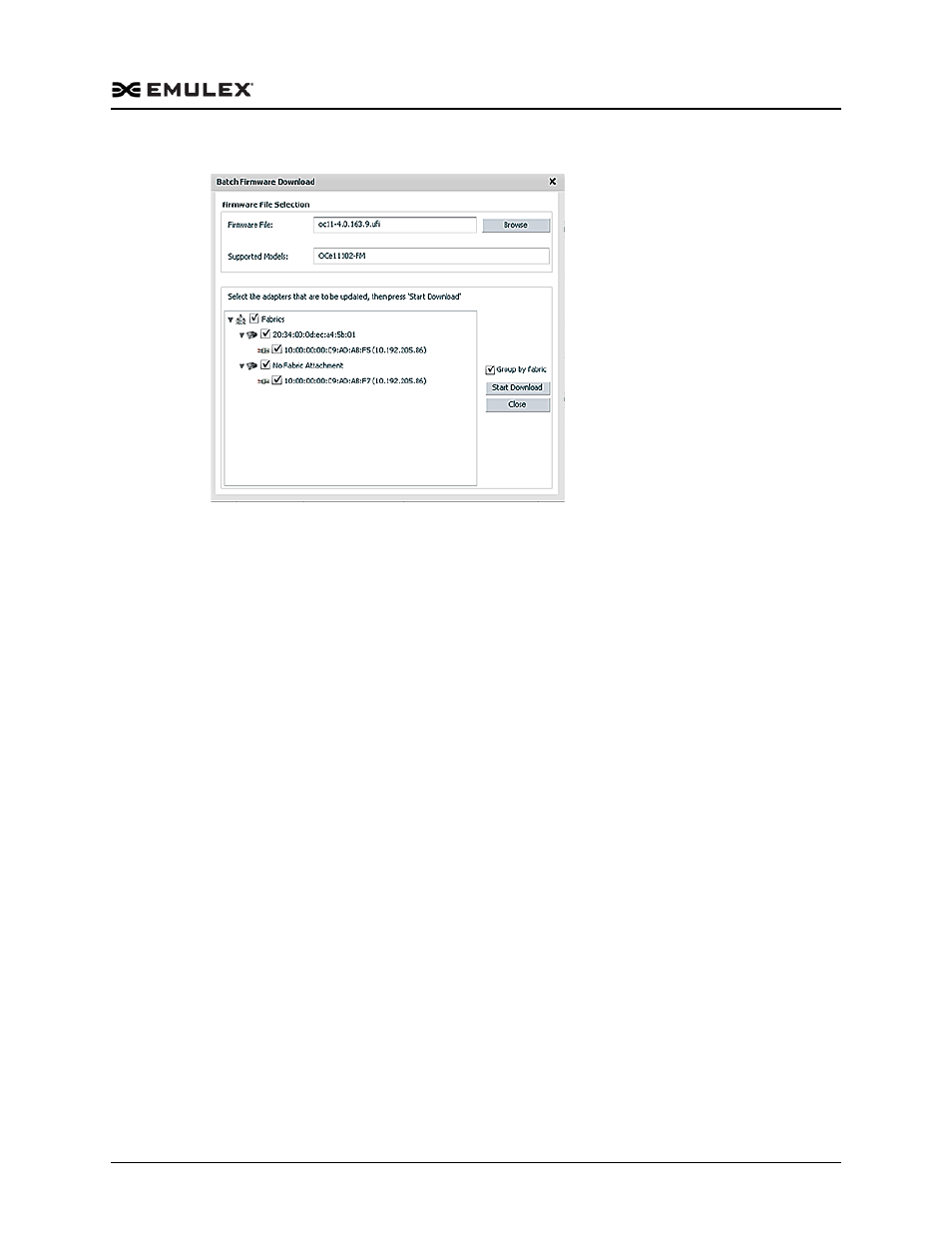

Figure 7-3 Batch Firmware Download Dialog Box, Fabric-Centric View
The tree-view shows all adapters and their corresponding hosts or fabrics for which
the selected firmware file is compatible. Use the checkboxes next to the entries to
select or deselect a host, fabric, adapter or port (if the adapters where the individual
port can have new firmware downloaded).
Note: iSCSI and NIC ports are not attached to any fabric, they are not listed in the
Batch Firmware Download dialog box.
5. Make your selections and click Start Download. A message prompting you to
confirm the firmware update appears, click Yes.
When the download begins the Jobs window is displayed (Figure 7-4). A status
message in the Active Job list shows the progress of the firmware download. The ports
on which the firmware is being downloaded have the status “Job is in progress”, the
other ports have “Waiting in queue to start”. When download is completed, the entry
moves to the Completed Jobs window. The status message field in the Completed Jobs
window shows the status of the completed job.
