Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
6. Using the FCoE Boot BIOS Utility for x86 and x64 Architectures
Enabling an Adapter to Boot from SAN
1579

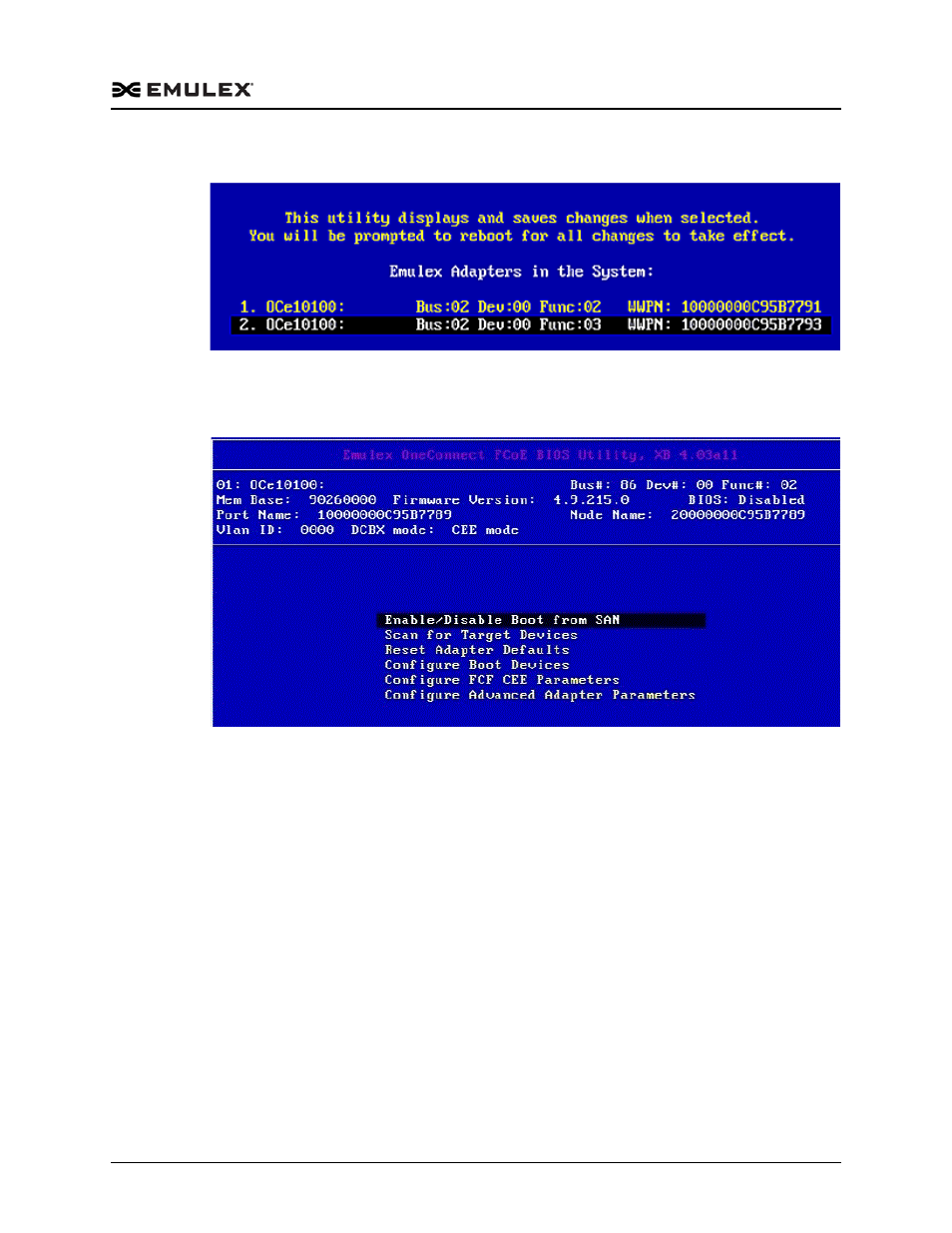

Figure 6-1 Emulex Adapter Listing
2. Select the adapter to configure and press . The main configuration menu is
displayed (Figure 6-2).
Figure 6-2 Main Configuration Menu
Under normal circumstances, you would first configure boot devices using the BIOS
Utility. However, if the adapter is not enabled to boot from SAN, you must first enable
the adapter to do so.
Enabling an Adapter to Boot from SAN
To enable an adapter to boot from SAN, from the Main configuration menu, select
Enable/Disable Boot from SAN and press .
Note: Adapters are disabled by default.
At least one adapter must be enabled to boot from SAN in order to use remote boot
functionality. Once you enable an adapter, the status of the boot BIOS changes as
shown in Figure 6-3.
