Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual

P010097-01B Rev. A

Appendix C. Examples for Configuring and Booting UEFI NIC

UEFI NIC IPv6 PXE Setup Procedure for SLES11 SP2

1757

18. Select Network and click OK. The Network Protocol list is displayed.

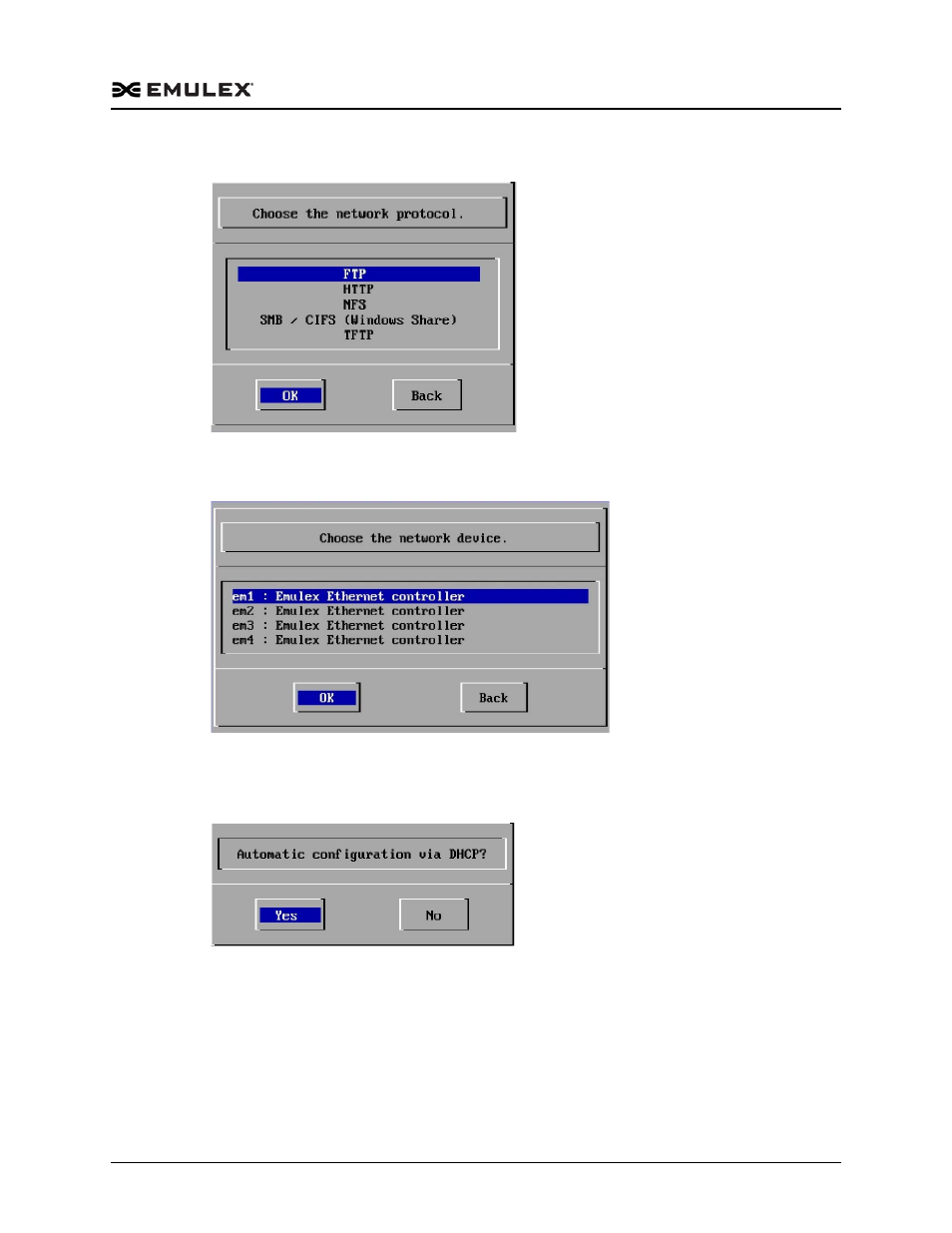

Figure C-28 Network Protocol List

19. Select FTP and click OK. The Network Device list is displayed.

Figure C-29 Network Device List

20. Select the device and click OK. A dialog box prompts you for automatic

configuration via DHCP.

Figure C-30 Automatic Configuration via DHCP Dialog Box
