OneCommand NIC Teaming and VLAN Manager User Manual P009415-01A Rev. A
3. Using the OneCommand NIC Teaming and VLAN Manager
Viewing General Information
759

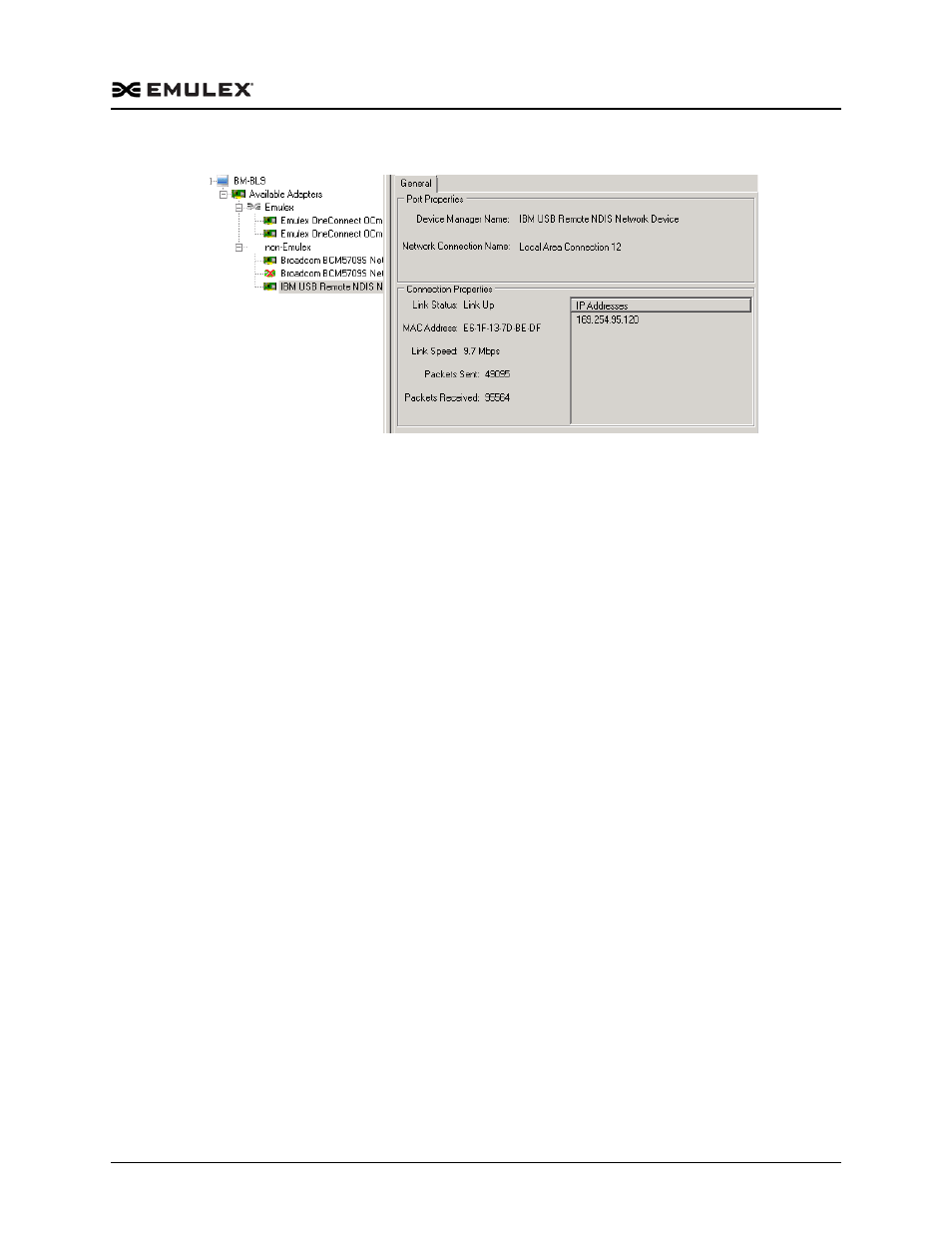

Figure 3-5 General tab Information for a non-Emulex Adapter
General Tab for an Adapter - Field Definitions
Port Properties Area

Device Manager Name – The device manager name

Network Connection Name – The network connection friendly name
Connection Properties Area

Link Status – The status of the link on the selected adapter port

Link Speed – The link speed

MAC Address – The NIC MAC address currently assigned to the selected
adapter port

Packets Sent – The number of packets sent

Packets Received – The number of packets received

IP Address table – IP addresses for the adapter
Viewing General Information for a Team
1. From the Start menu, click All Programs>Emulex>OneCommand Teaming and
VLAN Manager to start the application. The General tab for the host computer is
displayed.
