Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
Appendix G. Configuring PXE Boot for NIC on Dell OCe10100-based Systems
Setting Up a PXE Bootable Network
1785

Press to return to the previous menu or page, cancel a selection or dialog
box, or exit the utility.
Setting Up a PXE Bootable Network
After the PXE boot BIOS initializes, you can use the PXESelect utility to set up a PXE
bootable network by configuring your controllers.
To configure controllers for PXE boot:
1. At the Controller Selection Menu, use the key to select the controller you
want to configure and press .

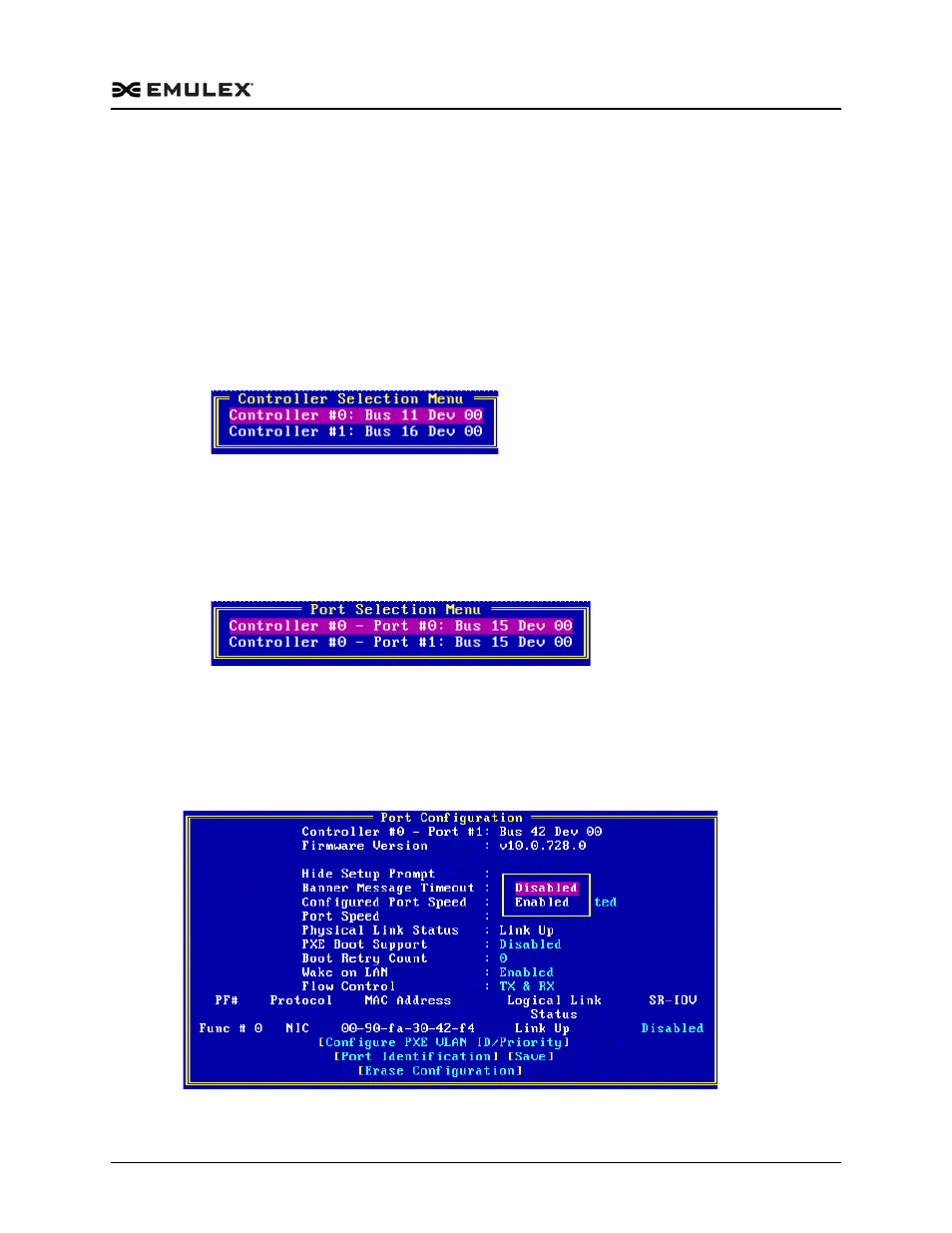

Figure G-1 Controller Selection Menu
Note: The Controller Selection Menu only appears if there are two or more
adapters connected.
The Port Selection Menu appears.
2. Select the port you want to configure and press .
Figure G-2 Port Selection Menu
Note: The Port Selection Menu only appears if there are two or more ports
connected.
The Port Configuration screen appears after you select a port in the Port Selection
Menu.
Figure G-3 Port Configuration Screen
