Emulex Adapter Installation Manual P010288-01A Rev. A
2. Installation
Preparing the Adapter for Installation
1810

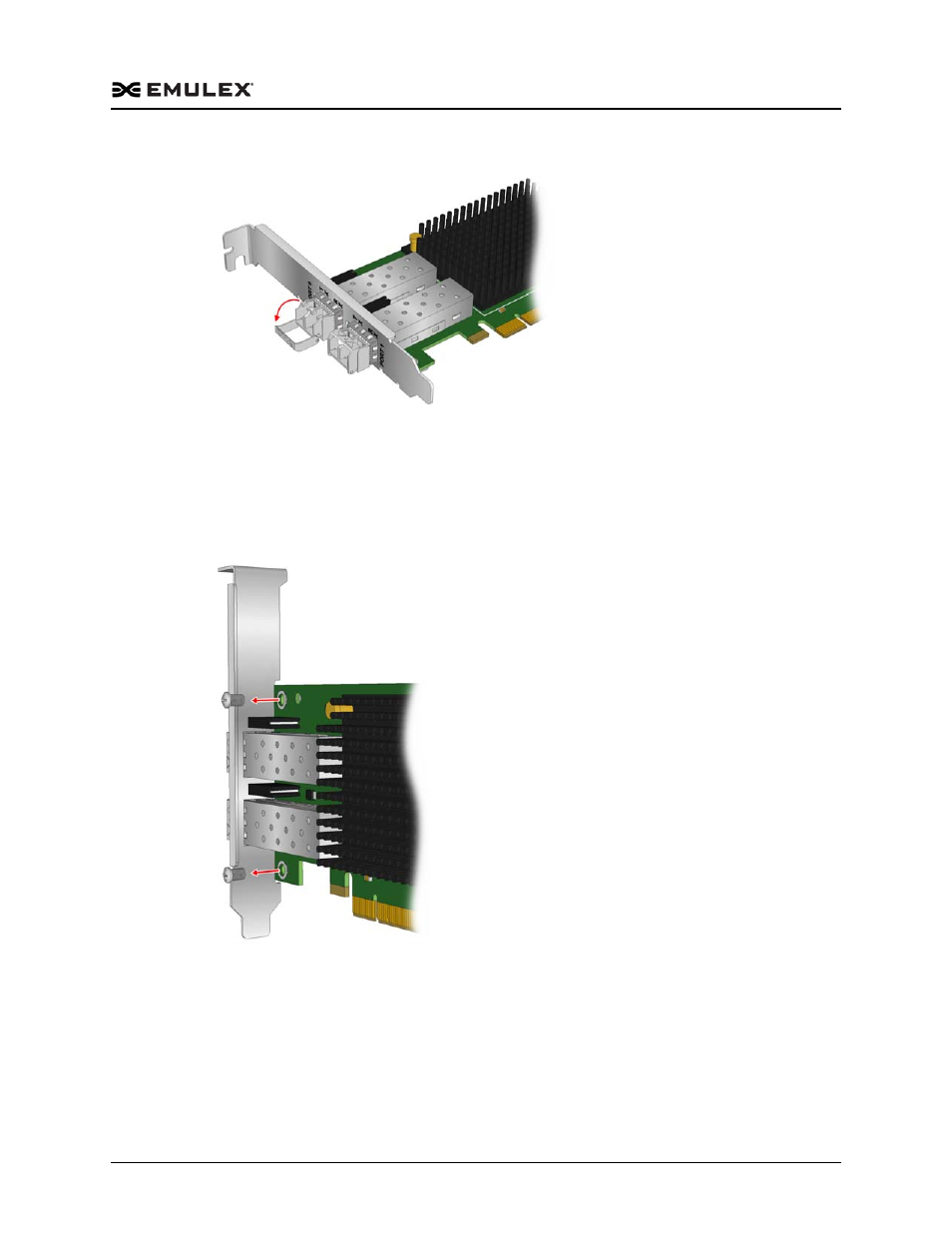

Figure 2-2 Releasing the Latch on an Optical Transceiver
6. Observing Electrostatic Discharge (ESD) precautions, store the transceiver in an
ESD-safe place.
7. Remove the mounting bracket screws from the top of the adapter. Figure 2-3 shows
the screws that are removed from the bracket.
Figure 2-3 Removing the Bracket
8. Remove the bracket and store it for future use.
9. Align the new mounting bracket tabs with the holes in the adapter.
Note: Be careful not to push the bracket past the transceiver or RJ-45 housing's
grounding tabs. Ensure the light emitting diodes (LEDs) are properly
aligned with the holes in the bracket.
10. Re-install the screws that attach the adapter to the bracket.
