6. Managing Adapters and Ports
iSCSI Port
1225

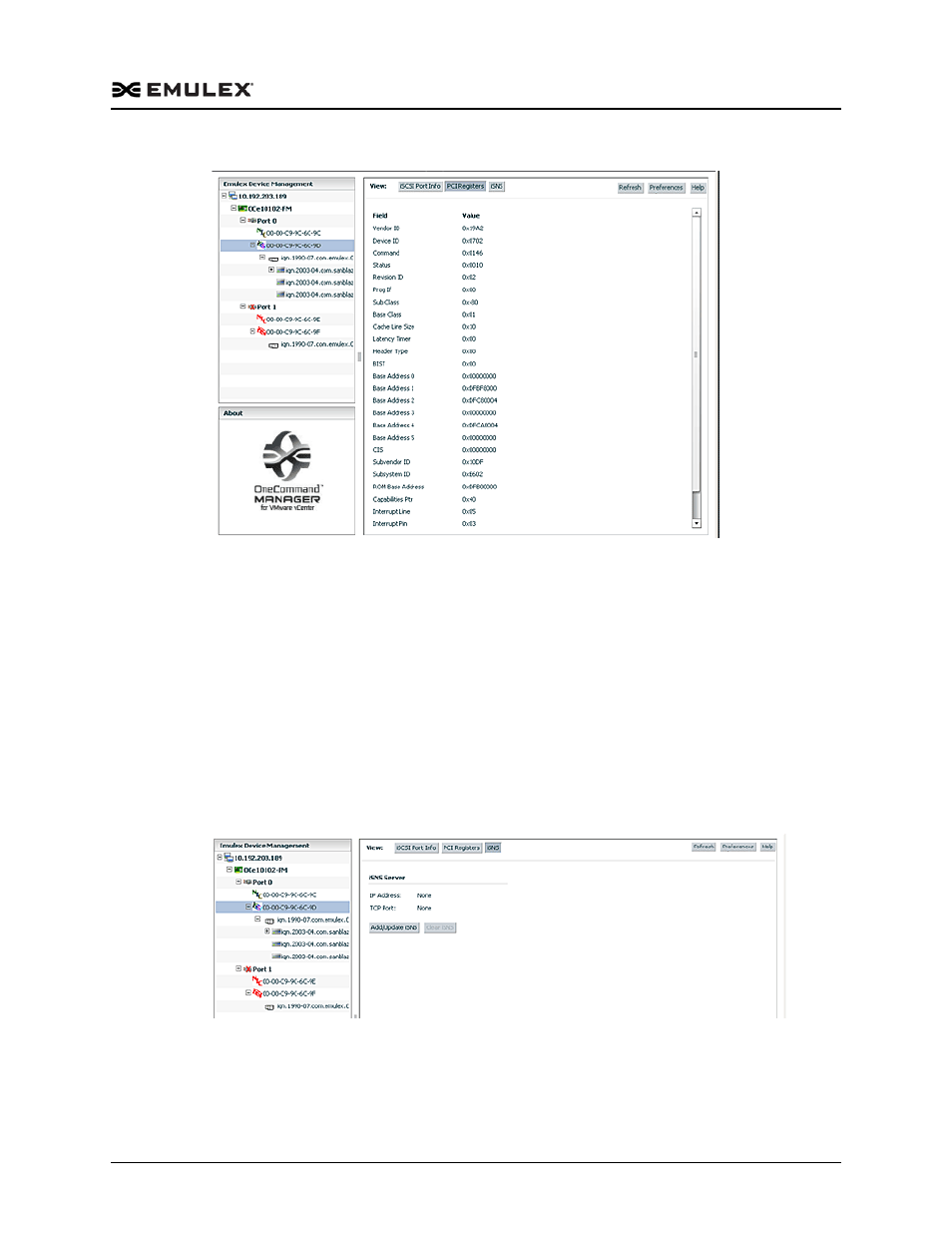

Figure 6-23 iSCSI Port, PCI Registers Tab
Viewing iSCSI iSNS Server Information
If the server has been set up as an Internet Storage Name Server (iSNS), the iSNS tab
shows the IP address and TCP Port for the selected iSCSI port.
To view iSNS server information:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the iSCSI port for which you
want to view iSNS information.
3. Select the iSNS tab.
Figure 6-24 iSCSI Port, iSNS Tab
