12. Configuring UEFI for iSCSI
Configuring the Network
1672
Manually Assigning an IP Address
To manually assign an IP address:
1. On the Configure IPV4 Address screen (Figure 12-8), ensure that the Initiator IP via
DHCP is set to . If you change this setting from to ,
select Save DHCP Settings and press .
2. Select Configure Static IP Address and press . The Configure Static IP
Address screen appears.

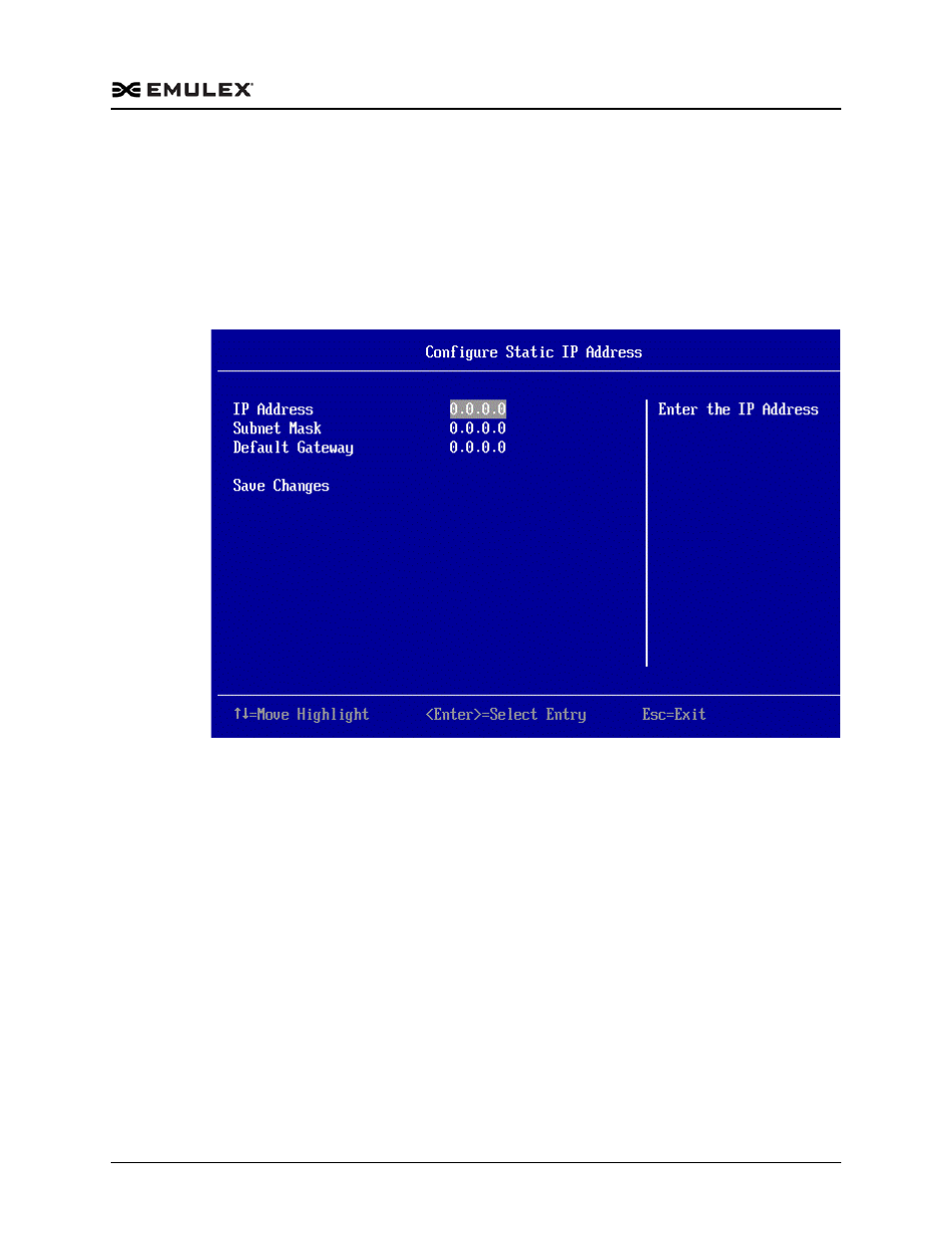

Figure 12-9 Configure Static IP Address Screen
3. Enter the IP address, subnet mask, and default gateway in the corresponding fields.
4. Select Save Changes and press .
Pinging the iSCSI Initiator
To ping the iSCSI initiator, on the Configure IPV4 Address screen (Figure 12-8), select
Ping and press .

If the ping is successful, a reply message is displayed with the iSCSI initiator IP
address.

If the ping is not successful, a failure message is displayed.
