2. Installation
Attaching Devices
1812

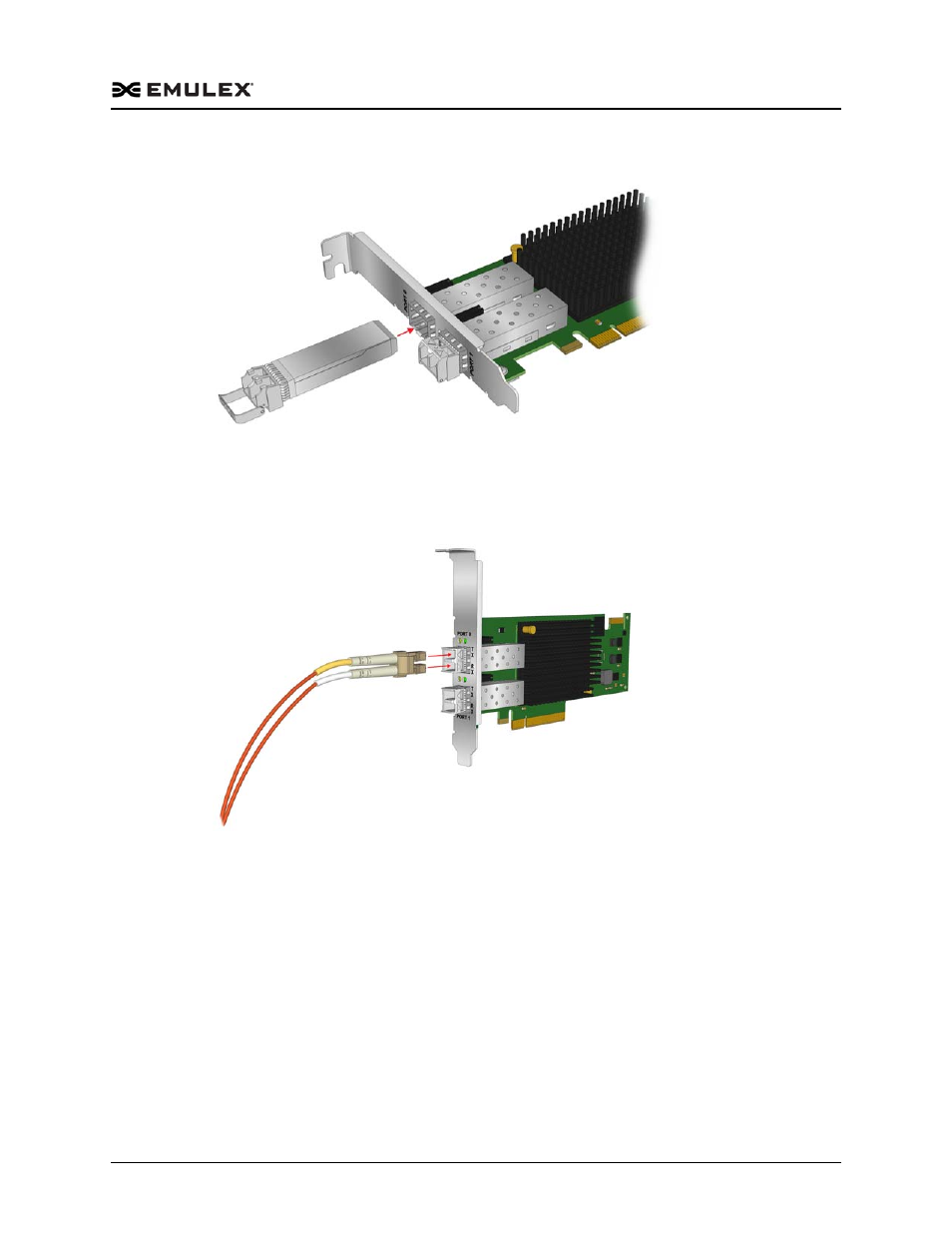

Figure 2-4 Installing an Optical Transceiver
Once the optical transceivers are installed, insert the optical cable into the LC
connectors on the adapter (see Figure 2-5).
Figure 2-5 Connecting a Fiber Optic Cable
When connecting a DAC cable, ensure the SFP+ cages do not have optical
transceivers installed in them. To remove optical transceivers, see step 5 on page
1809. After confirming there are no optical transceivers installed, insert the DAC
transceiver into the SFP+ cage on the adapter (see Figure 2-6).
