2. Configuring PXE Boot for NIC on LPe16202, OCe10100, and OCe11100-series Adapters
Using the PXESelect Utility
1523
3. If multichannel is enabled, on the Multichannel Configuration screen select the
specific function and press . A pop-up menu is displayed.

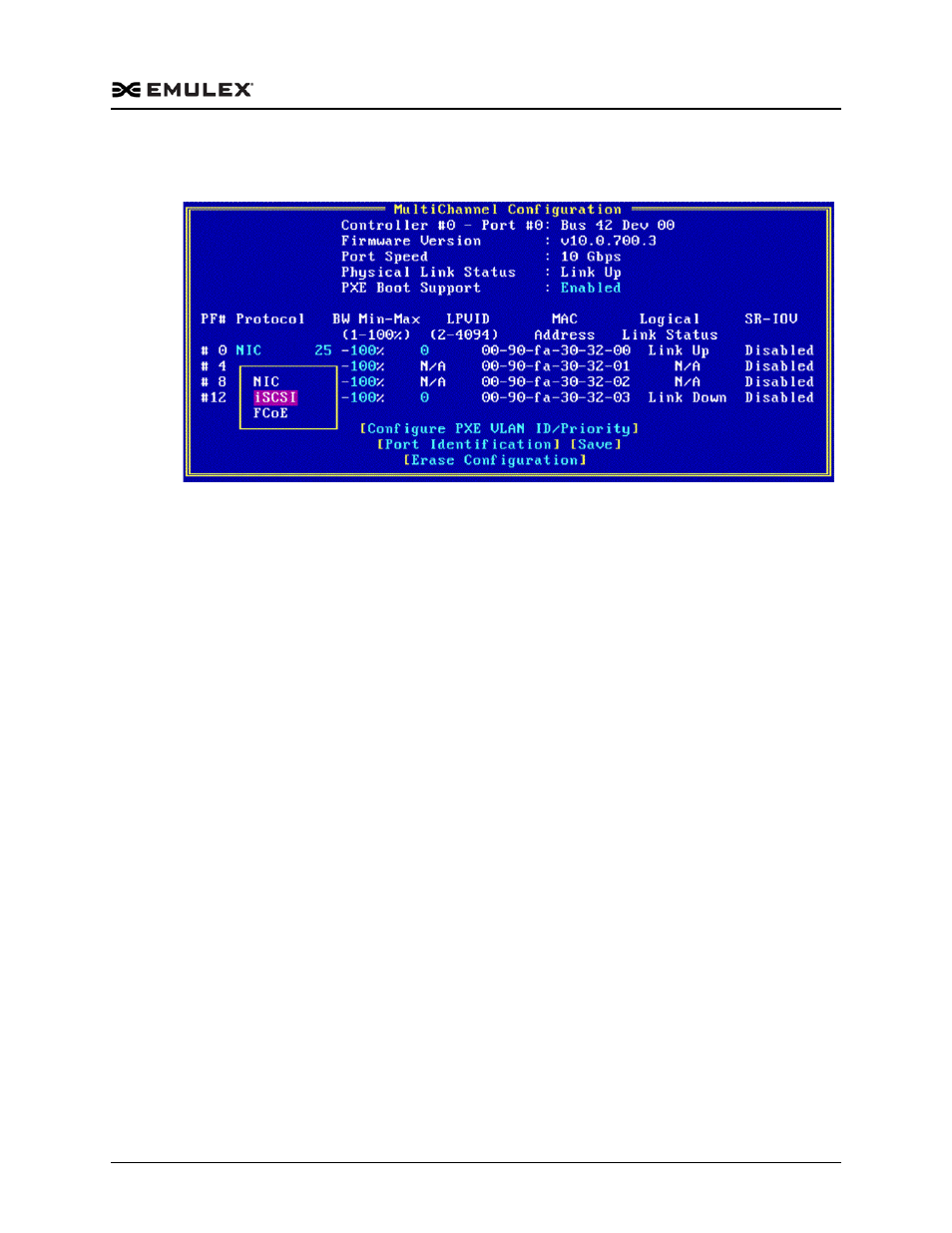

Figure 2-6 Custom Personality Selection on Multichannel Configuration Screen
Note: If multichannel is disabled, on the Port Configuration screen select the
specific function and press . A pop-up menu is displayed.
4. Select the desired personality for the appropriate function and press .
As mentioned previously for the Custom personality, iSCSI and FCoE personalities
may only be enabled on one function per adapter port.
5. Select Save and press .
Note: Changing the Personality setting requires a reboot before the change will
take effect. A reboot will occur when you exit the PXESelect utility if the
Personality setting has changed since the last boot.
Advanced Mode Support
Advanced Mode is a driver compatibility option. With Advanced Mode enabled, you
can run Advanced Mode-aware drivers that provide advanced capabilities as listed in
Table 2-1. With Advanced Mode disabled, you can run older legacy inbox drivers that
are not Advanced Mode-aware with the latest firmware versions.
Note: Advanced Mode support is enabled by default on OCe11100-series 2-port and
4-port controllers and the LPe16202/OCe15100 CFA. On 4-port controllers, the
Advanced Mode setting is not provided in the PXESelect/HII utilities. The
Advanced Mode setting on these platforms is implicitly enabled and Advanced
Mode-aware drivers must be installed. Compatibility with legacy drivers
requires that Advanced Mode support be disabled on 2-port controllers.
