OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
FC and FCoE Ports
1204
To view transceiver information for an FC port:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the FC port whose transceiver
information you want to view.
3. Select the Transceiver Data tab.

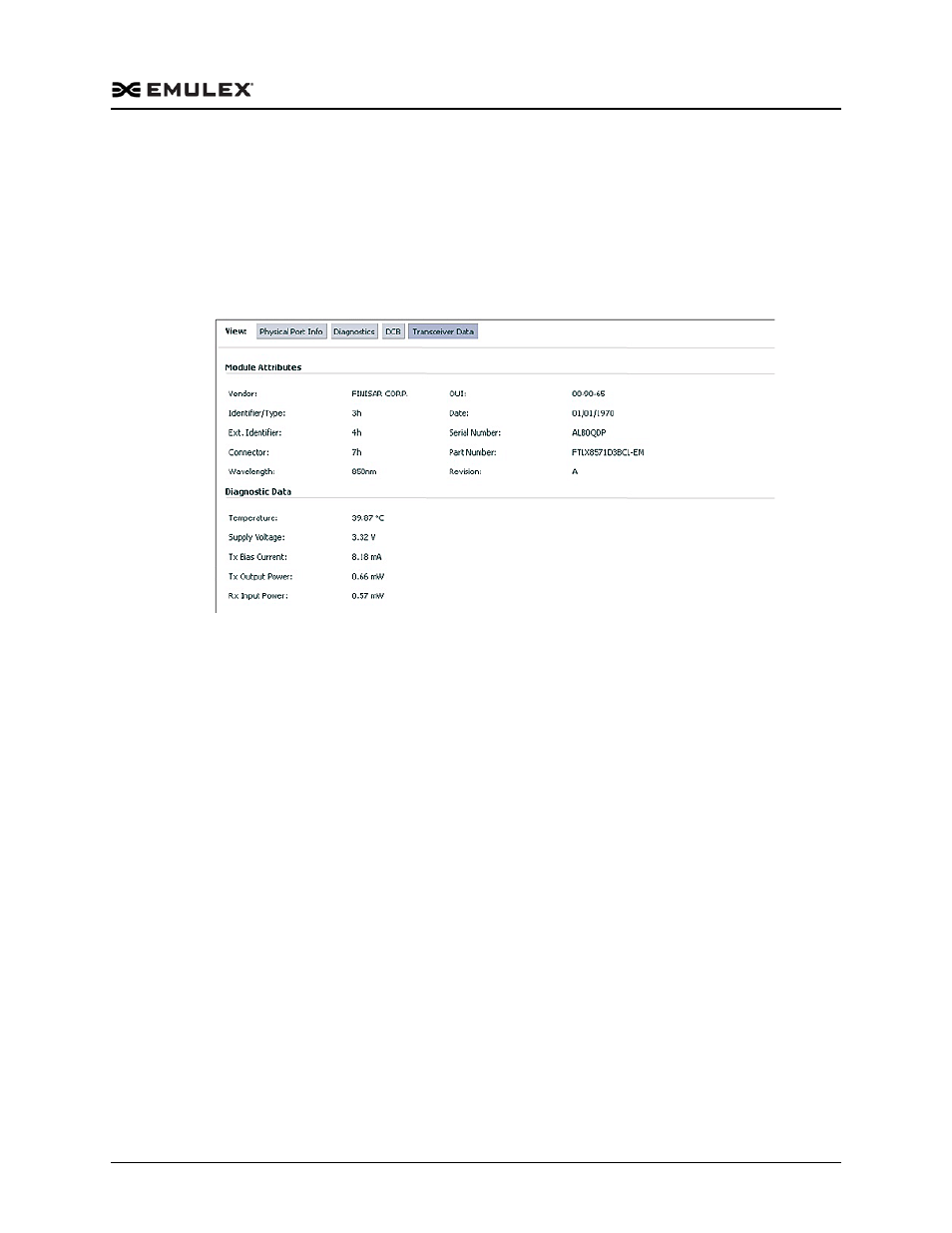

Figure 6-6 FC Port Transceiver Tab
Transceiver Information Field Definitions
Module Attributes Area

Vendor – The name of the vendor.

Identifier/Type – The identifier value that specifies the physical device
described by the serial information.

Ext. Identifier – Additional information about the transceiver.

Connector – The external optical or electrical cable connector provided as the
media interface.

Wavelength – The nominal transmitter output wavelength at room
temperature.

OUI – The vendor’s Organizationally Unique Identifier. It is also known as the
IEEE Company Identifier for the vendor.

Date – The vendor’s date code in the MM/DD/YY format.

Serial Number – The serial number provided by the vendor.

Part Number – The part number provided by the SFP vendor.

Revision – The vendor revision level.
Diagnostic Data Area

Temperature – The internally measured module temperature.
