OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
OneConnect Adapters
202

Minimum BW (%) – The minimum percentage of the port's bandwidth at which
the channel is guaranteed to run.

Maximum BW (%) – The maximum percentage of the port's bandwidth that can
be used by the channel.
Viewing ASIC Information
When you select a OneConnect multi-ASIC adapter from the discovery-tree, the ASIC
Information tab contains general attributes associated with the selected ASIC. You can
also use this tab to view and enable licenses. See “Showing and Installing Licenses for
OneConnect OCe10102 and OCe11102 Adapters” on page 204 for more information.
To view general ASIC information:
1. Select Host view.
2. Select a OneConnect four-port adapter ASIC in the discovery-tree.

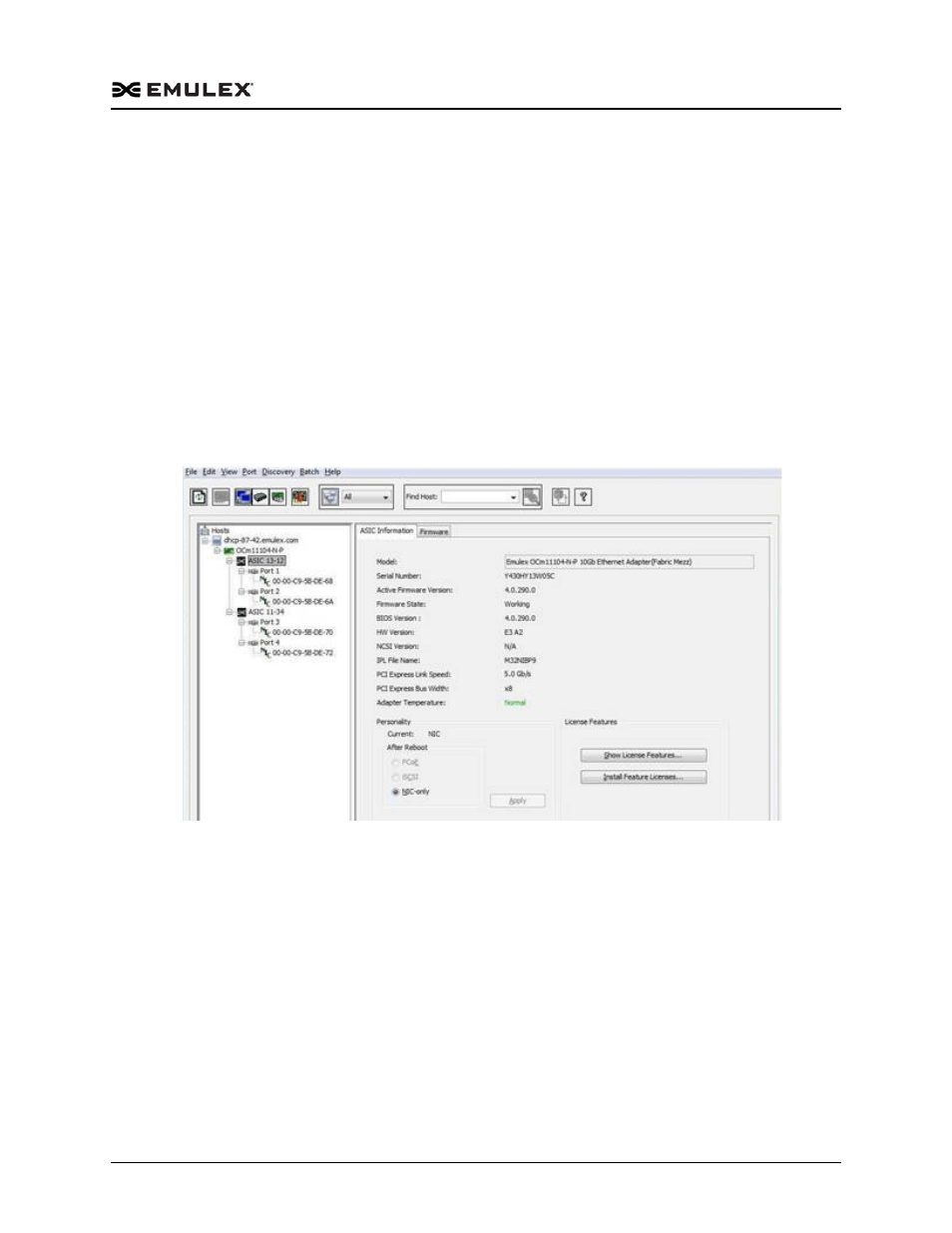

Figure 8-59 ASIC Information Tab
ASIC Information Field Definitions

Model – The model of the selected adapter.

Serial Number – The serial number of the selected adapter.

Active Firmware Version – The version of the firmware running on the selected
adapter.

Firmware State – The condition of the firmware.

BIOS Version – The version of the BIOS in use.

HW Version – The hardware version of the selected adapter.

NCSI Version – The Network Controller Sideband Interface version.

IPL File Name – The name of the IPL (Initial Program Load) file currently
loaded.
