OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
Viewing and Managing FC/FCoE LUNs
1208

Reset – Click to reset the adapter port. Refer to “Viewing FC/FCoE Port Driver
Parameters” on page 57 for more information.
Maintenance Tab Buttons (FC only)

Update Firmware – Click to update firmware on the selected port.
Viewing and Managing FC/FCoE LUNs
Viewing FC/FCoE LUN Information
When you select a LUN associated with an FC/FCoE adapter from the Emulex Device
Management tree-view, the LUN Info pane shows information associated with that
LUN.
To view LUN information:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the FC/FCoE LUN whose
information you want to view. The corresponding LUN Info pane appears.

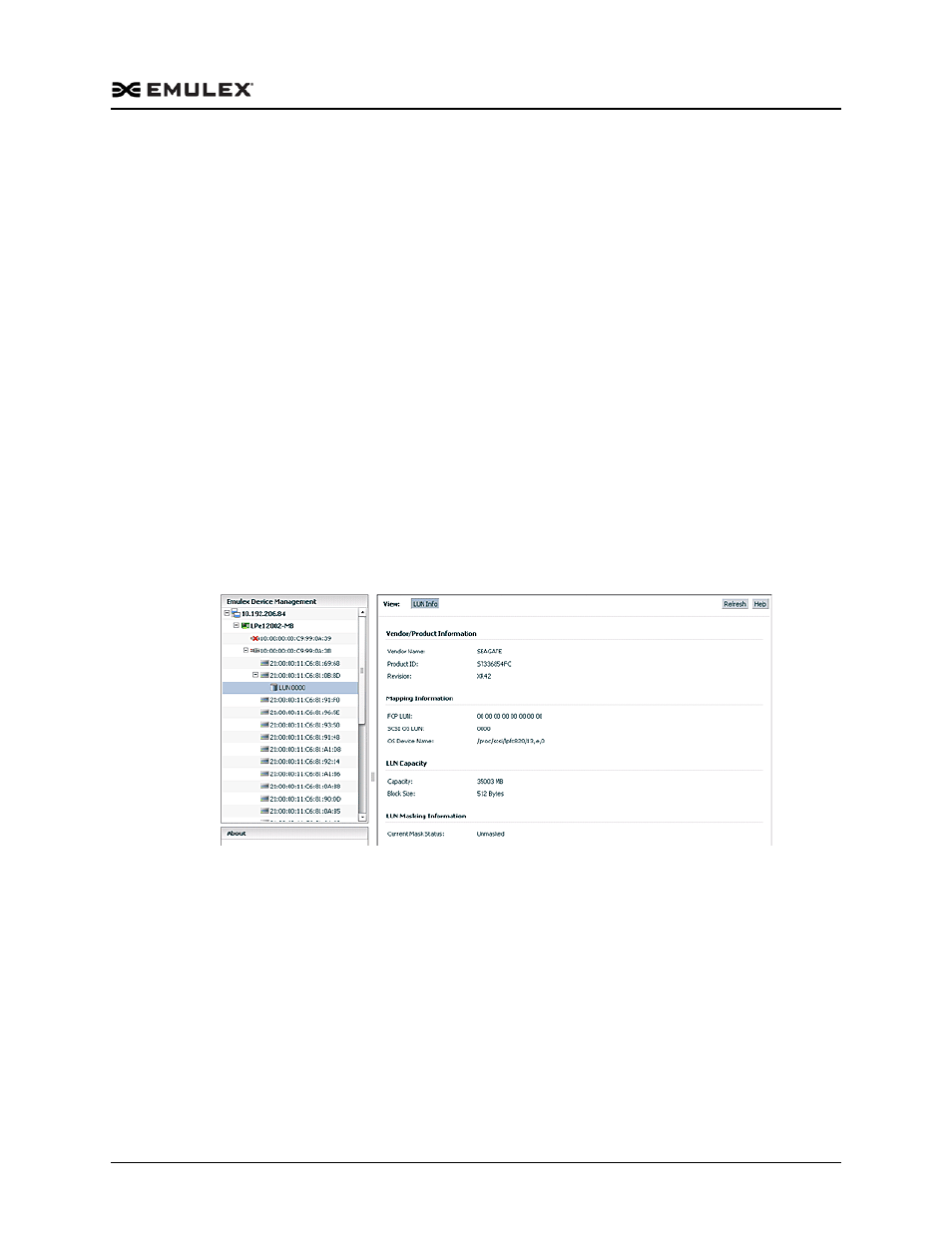

Figure 6-10 FC/FCoE LUN Information Tab
FC/FCoE LUN Information Field Definitions
Vendor Product Information Area

Vendor Name – The name of the vendor of the LUN.

Product ID – The vendor-specific ID for the LUN.

Revision – The vendor-specific revision number for the LUN.
Mapping Information Area

FCP LUN – The FC identifier used by the adapter to map to the operating
system LUN.
