11. Configuring UEFI for Ethernet
Starting the Emulex NIC Configuration Utility
1627
2. Select an adapter and press . The Emulex NIC Selection Screen appears.

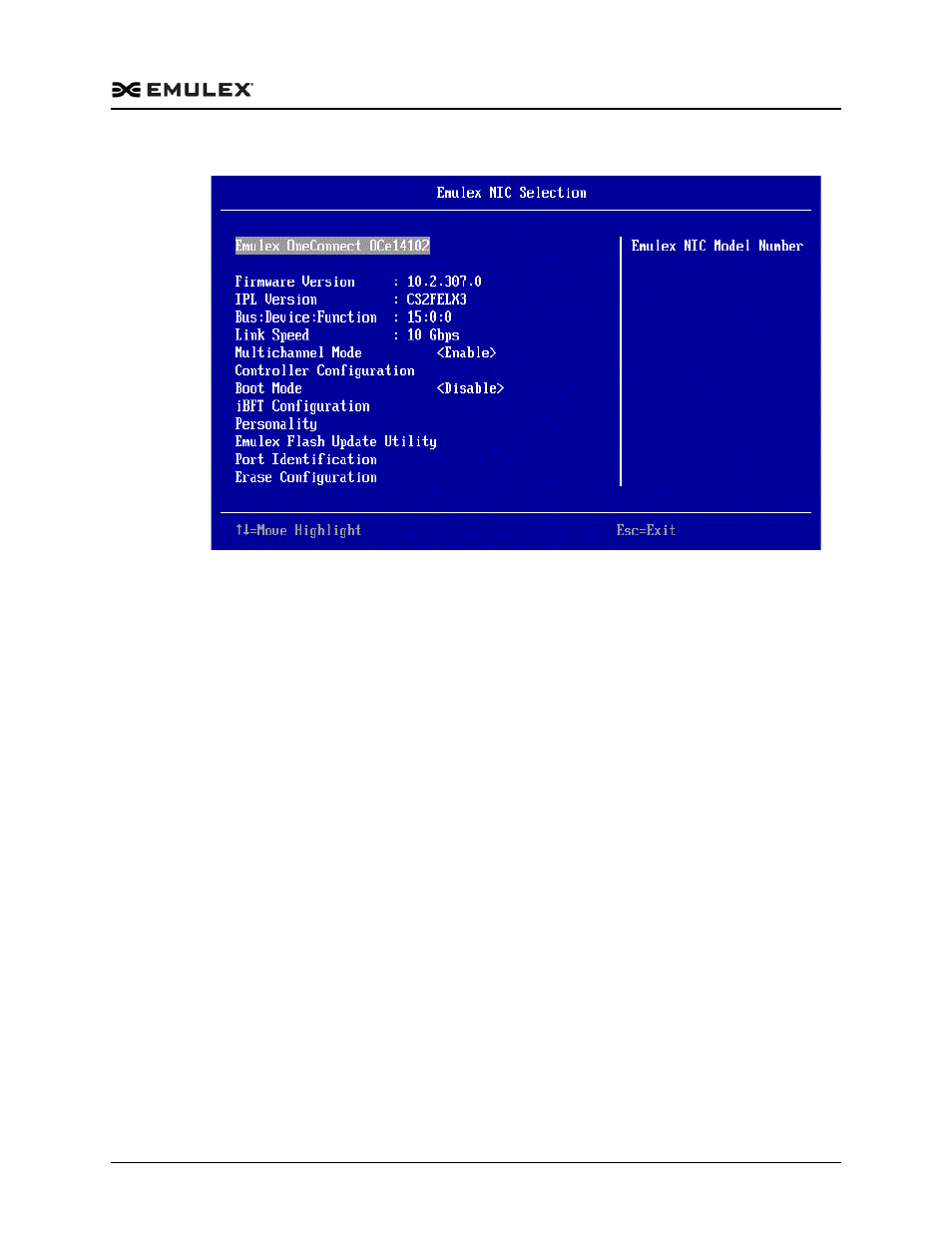

Figure 11-2 Emulex NIC Selection Screen
The Emulex NIC Selection screen displays the following adapter information and
configuration options:

Firmware Version – the current firmware version installed on the adapter.
The firmware version is the same as the boot version.

IPL Version – the current version installed on the adapter.

Bus:Device:Function – the PCI bus, device, and function for the adapter.
This information describes the location of the adapter in the PCI
configuration space.

Link Speed – the current maximum port speed on the adapter.

Advanced Mode (not shown) – for more information, see “Advanced Mode
Support” on page 1628.

Multichannel Mode – for more information, see “Configuring Universal
Multichannel” on page 1644.

Controller Configuration – the available menu options depend on whether
Multichannel Mode is enabled or disabled. For more information, see
“Configuring the Controller When Multichannel is Disabled or Not
Supported” on page 1640 or “Configuring Universal Multichannel” on
page 1644.

Boot Mode – for more information, see “Configuring Boot Mode” on
page 1629.

iBFT Configuration - this menu is only available when Boot Mode is
disabled. For more information, see “Configuring iBFT” on page 1630.

Personality – for more information, see “Configuring Personality” on
page 1636.
