OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
NIC
193
Select the VF in under the Base operating system host in the discovery-tree to display
the Port Information tab. Some of the information displayed in the tab is obtained from
the OneCommand Manager remote management agent running on the guest operating
system.

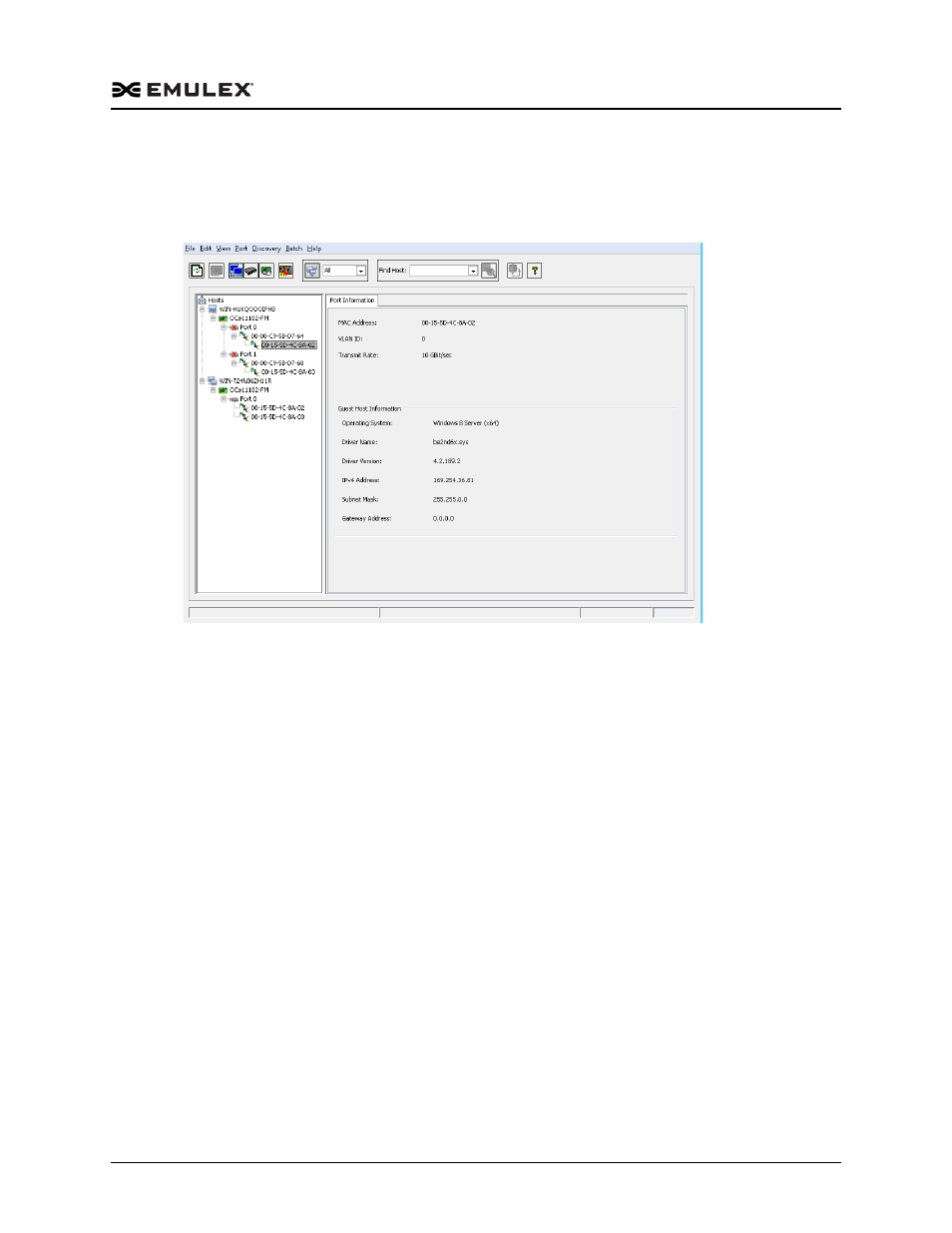

Figure 8-53 VF Selected Showing the Port Information Tab for the Discovered NIC in the Guest Operating
System
Port Information Field Definitions

MAC Address – The NIC MAC address currently assigned to the port.

VLAN-ID – The VLAN identifier used by the NIC port.

Transmit Rate – The rate at which data is transmitted over the port in Mbs.
Guest Host Information Area
Note: The following fields are only available when the OneCommand Manager
application is installed on the guest operating system running on this VF and
the guest host has been discovered (over TCP/IP) by the OneCommand
Manager application running on the base host operating system. See “Discovery
Using the TCP/IP Access Protocol” on page 88.

Operating System – The operating system and version installed on the selected
host.

Driver Name – The NIC driver file name.

Driver Version – The NIC driver version.

IPv4 Address – The IPv4 address for the NIC port.

Subnet Mask – The subnet mask for the NIC port.

Gateway Address – The NIC initiator gateway address.
