OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
4. Managing Clusters
Viewing Information in a Cluster
1188

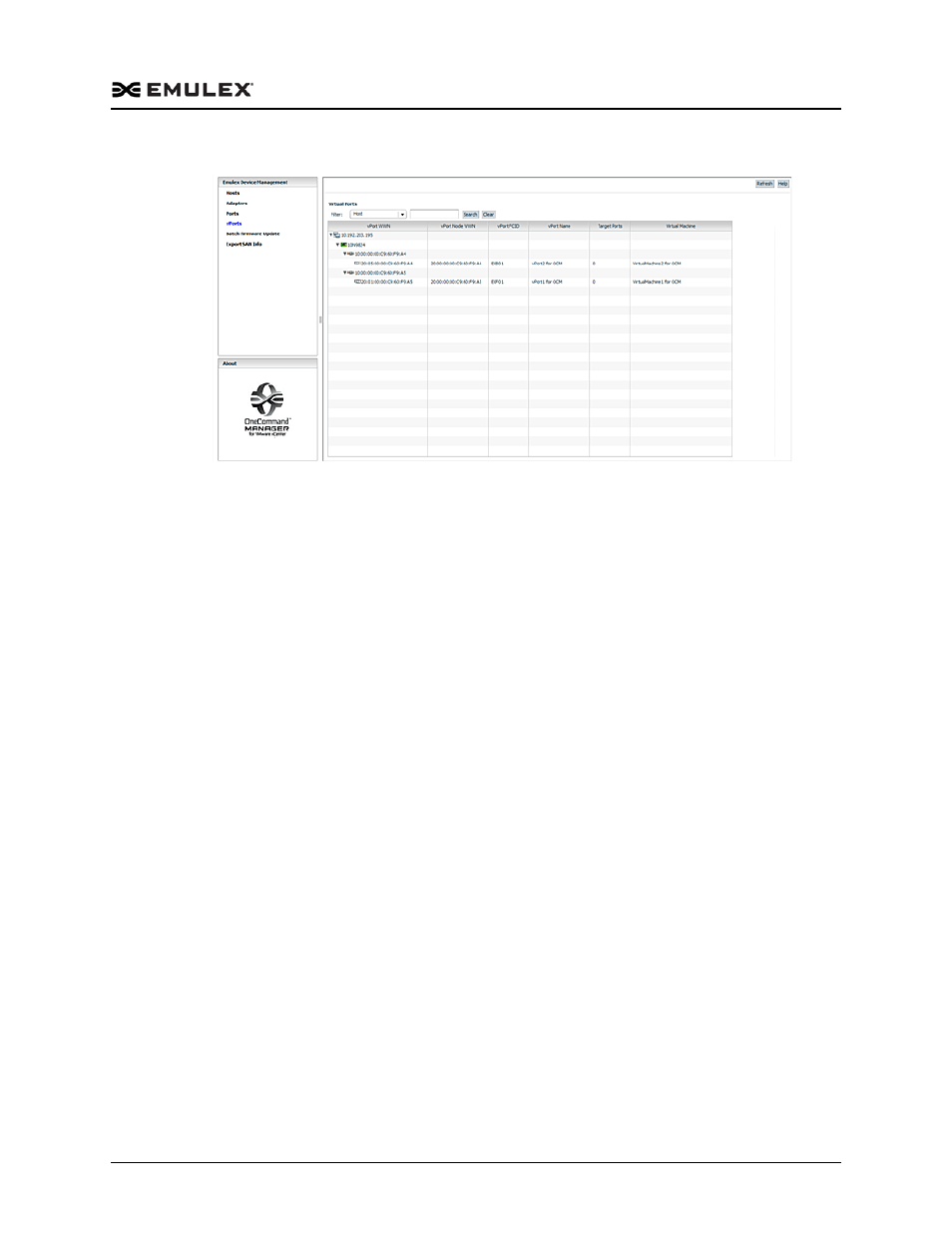

Figure 4-5 Virtual Port Cluster View
Virtual Port Information Field Definitions

vPort WWN – The virtual port World Wide Name.

vPort Node WWN – The virtual port node World Wide Name.

vPort FCID – The virtual port FC ID.

vPort Name – The virtual port name.

Target Ports – The number of target ports.

Virtual Machine – Virtual machine information.
Filtering Host Information
To filter the host information:
1. Use the Filter list to filter the host information.
2. Choose any of the available host information fields from the list and enter a
wildcard for the field and click Search.
3. Click Clear to clear the search criteria.
Viewing Port Information in a Cluster (Fabric centric mode)
To view port information in a cluster in fabric-centric mode:
1. Select a cluster in the vSphere console tree-view.
2. Select the Emulex OneCommand tab, host information is displayed.
3. From the Emulex Device Management options, select Ports. The host-centric
information pane is displayed.
4. Select the Group by Fabric checkbox. Fabric information is displayed.
