Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
2. Configuring PXE Boot for NIC on LPe16202, OCe10100, and OCe11100-series Adapters
Using the PXESelect Utility
1530
Note: LPVIDs also need to be configured on the switch port.
Each LPVID must be unique and is relevant for NIC traffic only. The LPVID is not
supported for storage functions. For iSCSI storage functions, you must configure a
VLAN ID through iSCSISelect or through the host. For additional information, see
“Configuring VLAN ID and VLAN Priority” on page 1604.
During PXE boot when the UNDI Driver (BIOS) is functional, the PXE VLAN is used.
However, once the NIC driver is operational the LPVID is used.
Note: If no PXE VLAN is configured, the LPVID is used.
For example:
PXE Install OS
PXE Server configured with VLAN 5
PXE VLAN=5
LPVID for function 0=5
To configure LPVID:
1. On the configuration screen, use the key to select LPVID and a dialog box
appears.
2. Enter a value and press . The LPVID range is 2-4094. A value of 0 disables
the LPVID.
3. Select Save and press .
Configuring Multichannel for IBM Adapters
Note: This section only pertains to certain Emulex OneConnect adapters that support
IBM Virtual Fabric multichannel or Unified Fabric Protocol.
When you want to enable multichannel on IBM adapters, you must select a
Multichannel Mode.
To select the Multichannel Mode:
1. From the Controller Configuration menu, use the key to select the
Multichannel Mode setting and a pop-up menu appears.

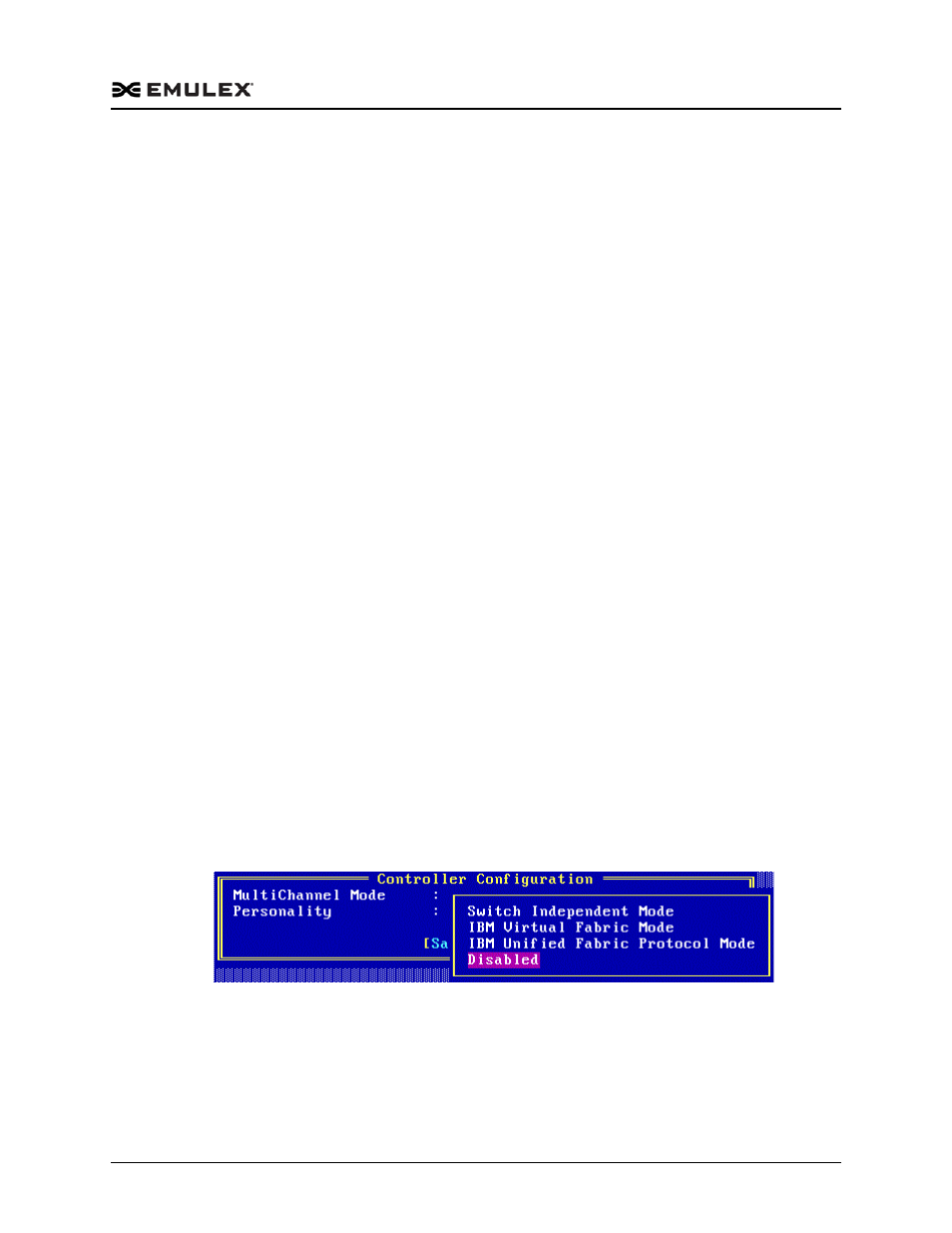

Figure 2-12 Controller Configuration Screen - IBM Adapters
2. Select one of the following settings and press :

Switch Independent Mode

IBM Virtual Fabric Mode

IBM Unified Fabric Protocol Mode
