OneCommand™ Manager Application P010066-01A Rev. A
13. Diagnostics
LightPulse FC HBA Diagnostics
265
Viewing Flash Contents, PCI Registers, and Wakeup
Information
The Diagnostics tab shows PCI register dump information and flash memory contents.
The information is read-only and is depicted below.

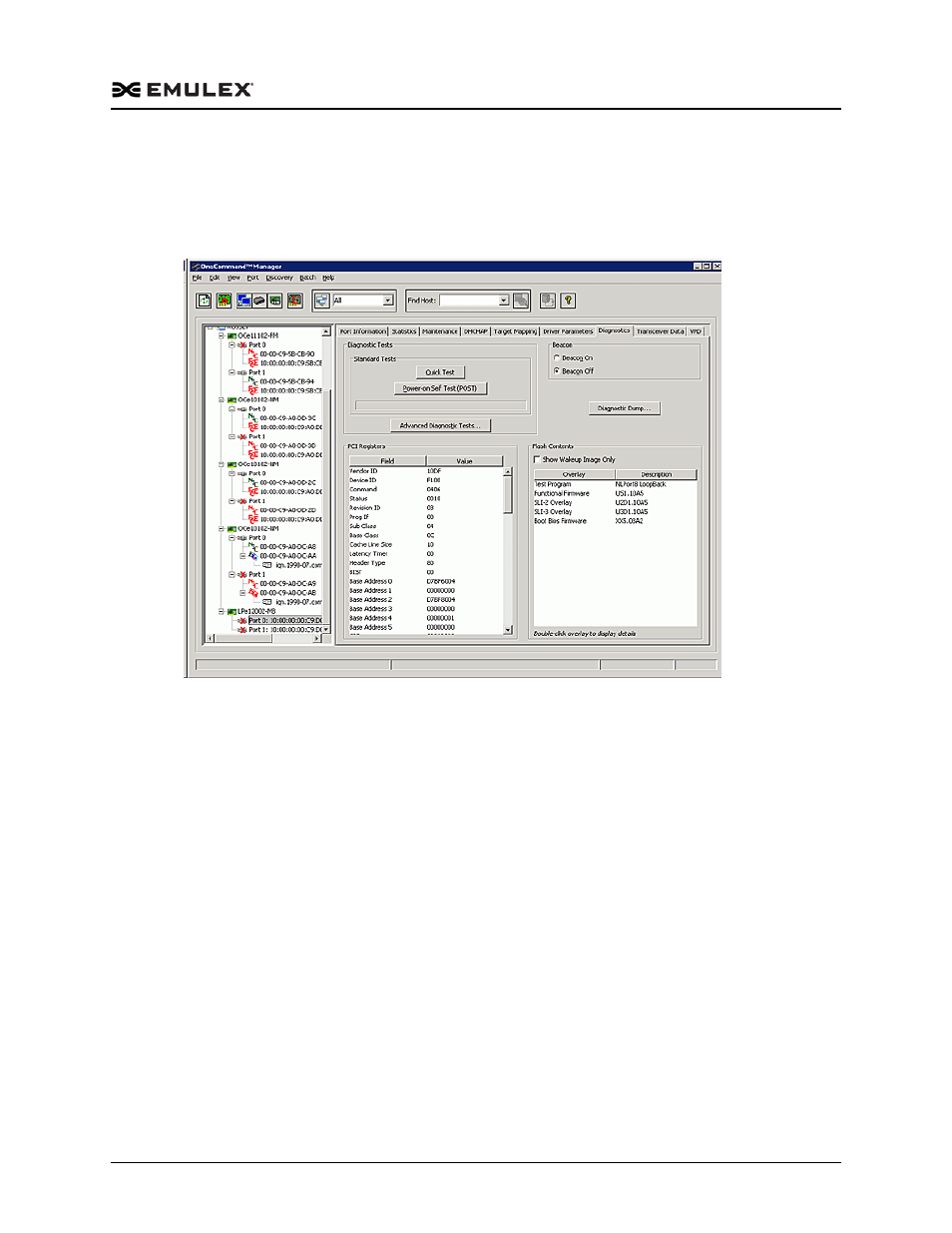

Figure 13-1 PCI Registers and Flash Contents of the Diagnostics Tab
Viewing Flash Contents
If you check the Show Wakeup Image Only checkbox, the flash overlays that are not
loaded when the system is booted no longer display. This checkbox defaults to
unchecked.
