OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
OCe10100–Series and OCe11100–Series Adapters
1266
Viewing Port Transceiver Information for OCe10100–Series and
OCe11100–Series Adapters
The Transceiver Data tab enables you to view transceiver information such as vendor
name, serial number, part number, and diagnostic data. If the adapter/transceiver does
not support some or all of the transceiver data, the fields show N/A.
To view transceiver information:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the physical port whose
transceiver information you want to view.
3. Select the Transceiver Data tab.

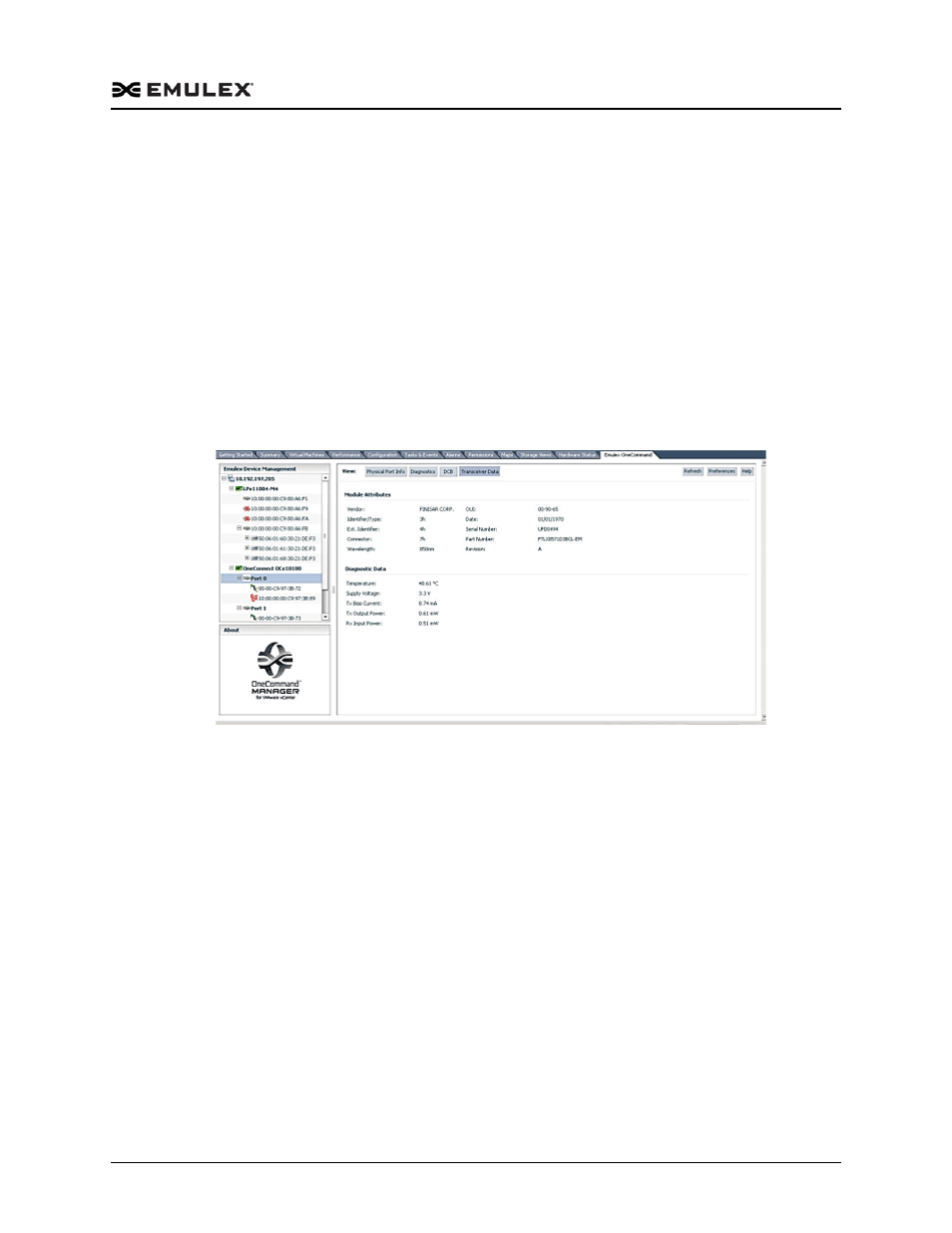

Figure 6-52 OCe10100–Series Port Transceiver Tab
Transceiver Information Field Definitions
Module Attributes Area

Vendor – The name of the vendor.

Identifier/Type – The identifier value that specifies the physical device
described by the serial information.

Ext. Identifier – Additional information about the transceiver.

Connector – The external optical or electrical cable connector provided as the
media interface.

Wavelength – The nominal transmitter output wavelength at room
temperature.

OUI – The vendor’s OUI. It is also referred to as the IEEE Company Identifier
for the vendor.

Date – The vendor’s date code in the MM/DD/YY format.

Serial Number – The serial number provided by the vendor.
