6. Managing Adapters and Ports
FC and FCoE Ports
1205

Supply Voltage – The internally measured supply voltage in the transceiver.

TX Bias Current – The internally measured TX bias current.

TX Output Power – The measured TX output power.

RX Input Power – The measured RX input power.
Viewing FC/FCoE Port Vital Product Data (VPD)
The VPD tab shows vital product data (if available) for the selected FC/FCoE port such
as the product name, part number, serial number, and so on.
To view VPD information for a port:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the port for which you want to
view VPD information.
3. Select the VPD tab.

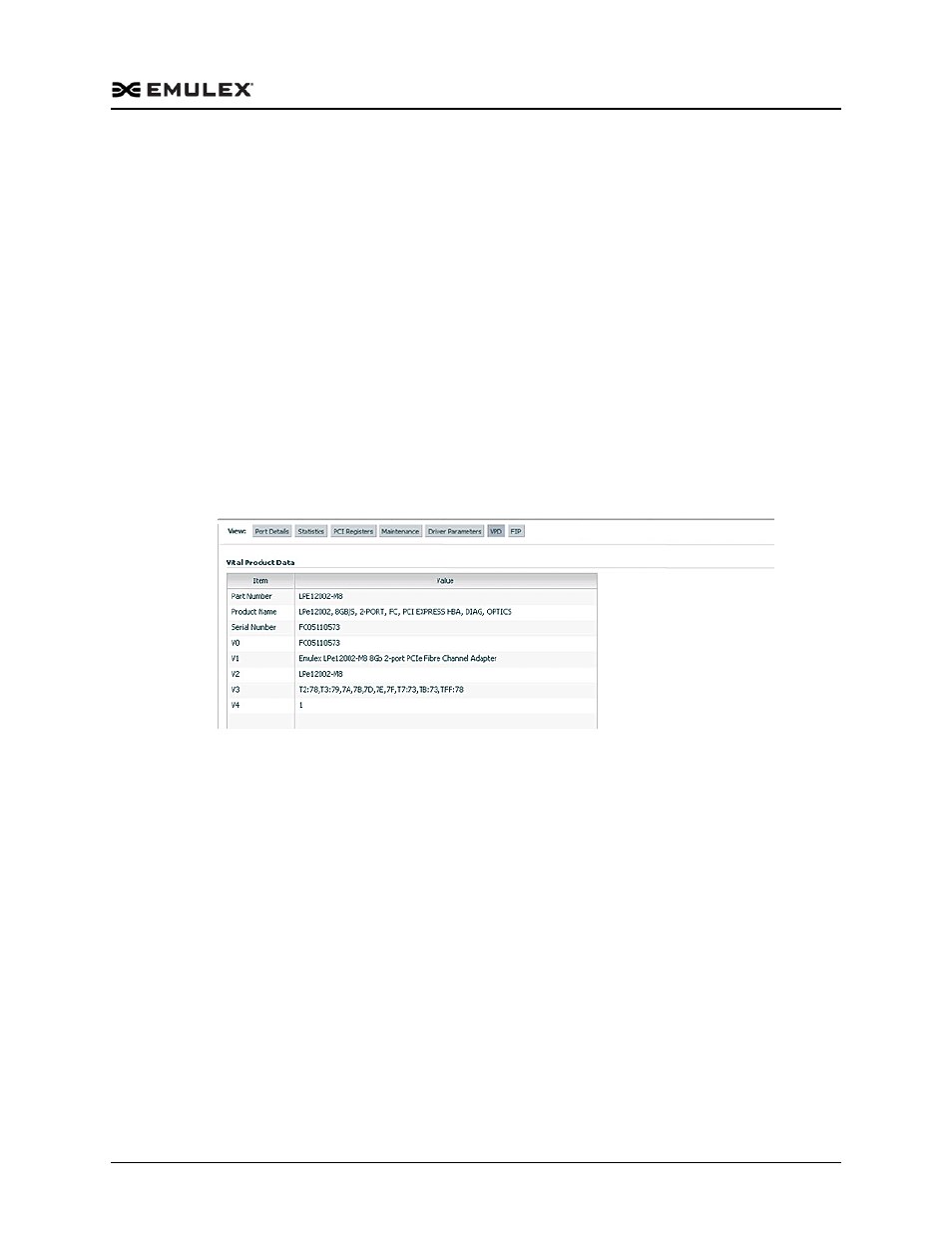

Figure 6-7 Port VPD Tab
VPD Table Definitions

Part Number – The adapter's part number.

Product Name – The product information about the selected adapter port.

Serial Number – The adapter's serial number.

VO – Vendor unique data. “V” indicates a vendor-specific field. An adapter
may have none, one or more of these fields defined. Valid values for this field
are “VO” (the letter “O”, not the number zero) and “Vx” (where “x” is a
number).
Note: Some adapters may show additional VPD information such as
engineering change (EC) level and MN (manufacturer ID).
