OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
OCe10100–Series and OCe11100–Series Adapters
1267

Part Number – The part number provided by the SFP vendor.

Revision – The vendor revision level.
Diagnostic Data Area

Temperature – The internally measured module temperature.

Supply Voltage – The internally measured supply voltage in the transceiver.

TX Bias Current – The internally measured TX bias current.

TX Output Power – The measured TX output power.

RX Input Power – The measured RX input power.
Viewing and Configuring OCe10100–Series and OCe11100–
Series Physical Port DCB Parameters
Viewing Physical Port DCB Parameters
The DCB tab shows the DCB parameters for a physical port.
Note: DCB tab does not appear for OCe10100–series adapters with a NIC only
personality.
To view the DCB parameters for a physical port:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the physical port for which you
want to view DCB parameters.
3. Select the DCB tab.

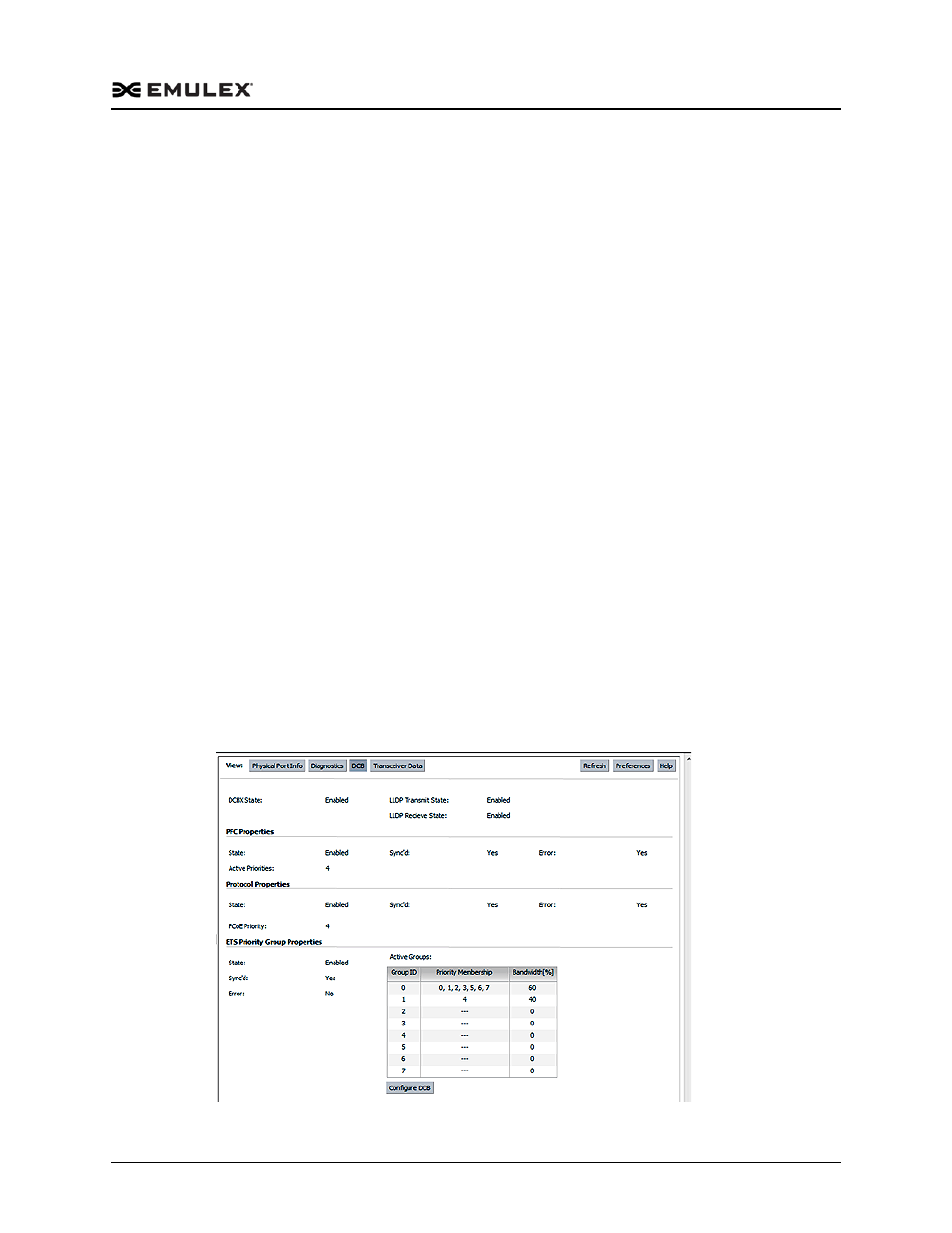

Figure 6-53 FCoE Adapter Port, DCB Tab
