8. Managing Adapters and Ports
OneConnect Adapters
200
Note: vNIC is supported only on IBM virtual fabric adapters. For specific information
as to whether it is supported on a specific adapter, see the release notes that are
available on the IBM adapter pages on the Emulex website.

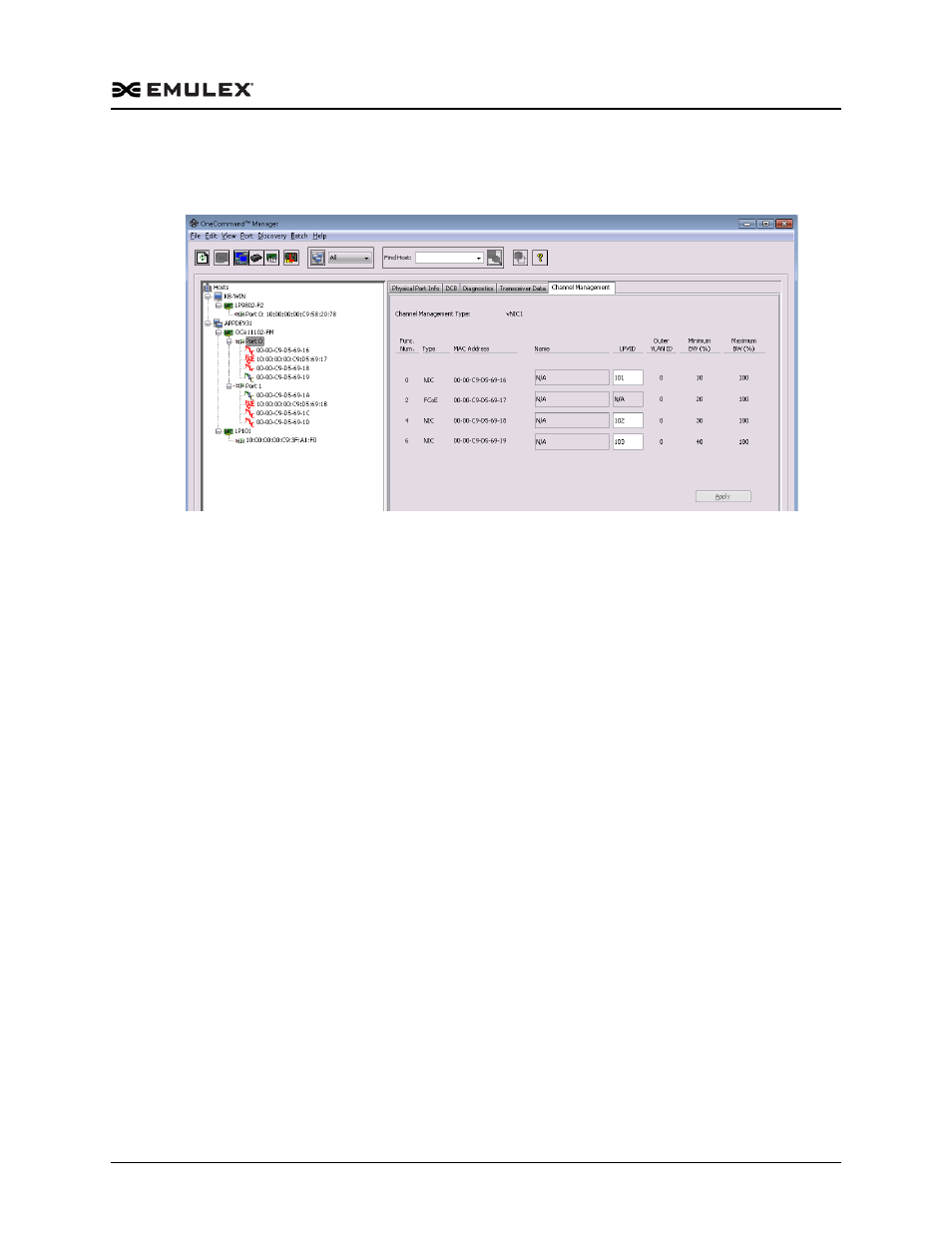

Figure 8-57 Channel Management Tab for vNIC1 (IBM only)
To view vNIC channel management:
1. From the discovery-tree, select the vNIC adapter port whose channel information
you want to view.
2. Select the Channel Management tab.
Channel Management Field Definitions for vNIC1 (IBM only)

Type (Read-only) – The protocol type in use.

Func. Num. (Read-only) – The function number assigned by the system to the
channel.

Type (Read-only) – The protocol type in use by the channel.

MAC address (Read-only) – The MAC address assigned to the channel.

Name – The name assigned to the vNIC by an administrator during switch
configuration.

LPVID – Each channel can be assigned a default VLAN ID. Each egress
untagged packet is tagged with this default value.

Outer VLAN ID – The VLAN identifier used between the NIC port and the
switch. The switch maps this value into the VLAN ID used on the network.

Minimum BW (%) – The minimum percentage of the port's bandwidth at which
the channel is guaranteed to run.

Maximum BW (%) – The maximum percentage of the port's bandwidth that can
be used by the channel.
