OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
Viewing and Managing FC/FCoE LUNs
1214
.

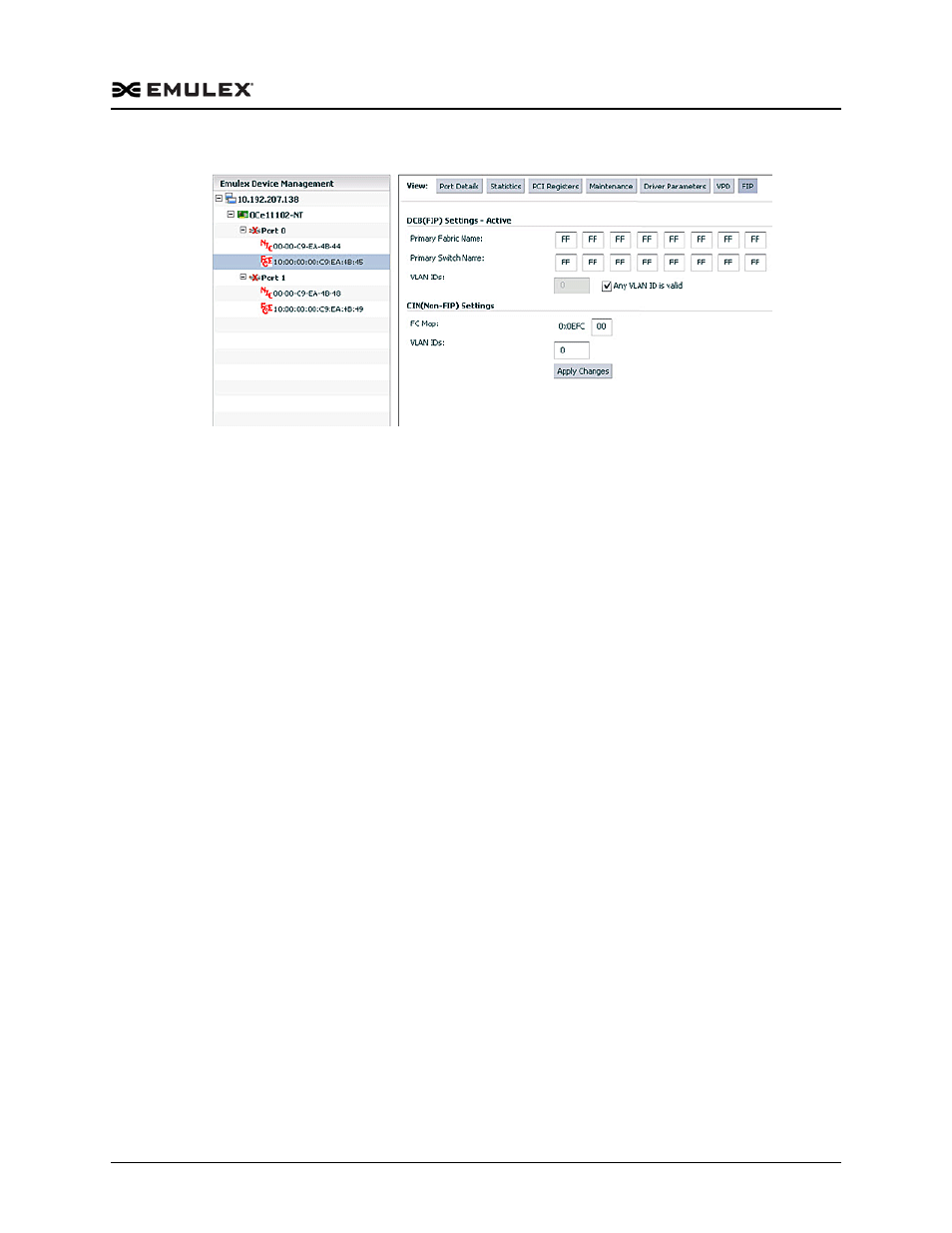

Figure 6-16 FCoE Port FIP Tab
FIP Tab Field Descriptions
DCB Settings Area
DCB settings are only applicable when the DCBX Mode in the DCB tab is set to DCB.
Note: In Figure 6-16, the “DCB (FIP) Settings” area has “Active” in its title. This
indicates that DCB (FIP) is the current DCBX mode (DCBX mode is set from the
DCB tab). If CIN (Non-FIP) was the current DCBX mode, “Active” would be in
the “CIN (Non-FIP) Settings” area.

Primary Fabric Name – Indicates the FC fabric's WWN to which to connect. If
the Primary Fabric Name is wild (all 0xFFs), then connection to any fabric name
is allowed.

Primary Switch Name – Indicates the FC switch's WWN to which to connect. If
the Primary Switch Name is wild (all 0xFFs) then connection to any switch
name is allowed.

VLAN ID – Determines the VLAN where the adapter FCoE services are
available. It can have a value from 0 to 4095 and supports wild card values if the
Any VLAN ID is valid checkbox is selected.

Any VLAN ID is valid checkbox – When checked, the VLAN ID field of the
FCoE forwarder can be any valid value.
CIN Settings Area

FC Map – Enter the bit value that completes the fabric-provided MAC address
(FPMA).

VLAN ID – Determines the VLAN where the adapter FCoE services are
available. It can have a value from 0 to 4095.
FIP Tab Buttons

Apply Changes – Click to set new FIP parameters.
