OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
NIC Port
1250
Displaying Virtual Functions on a Host Operating System
OneCommand Manager for VMware vCenter can discover the VFs running on the
discovered physical functions and display them in the discovery-tree as shown in
Figure 7-41.

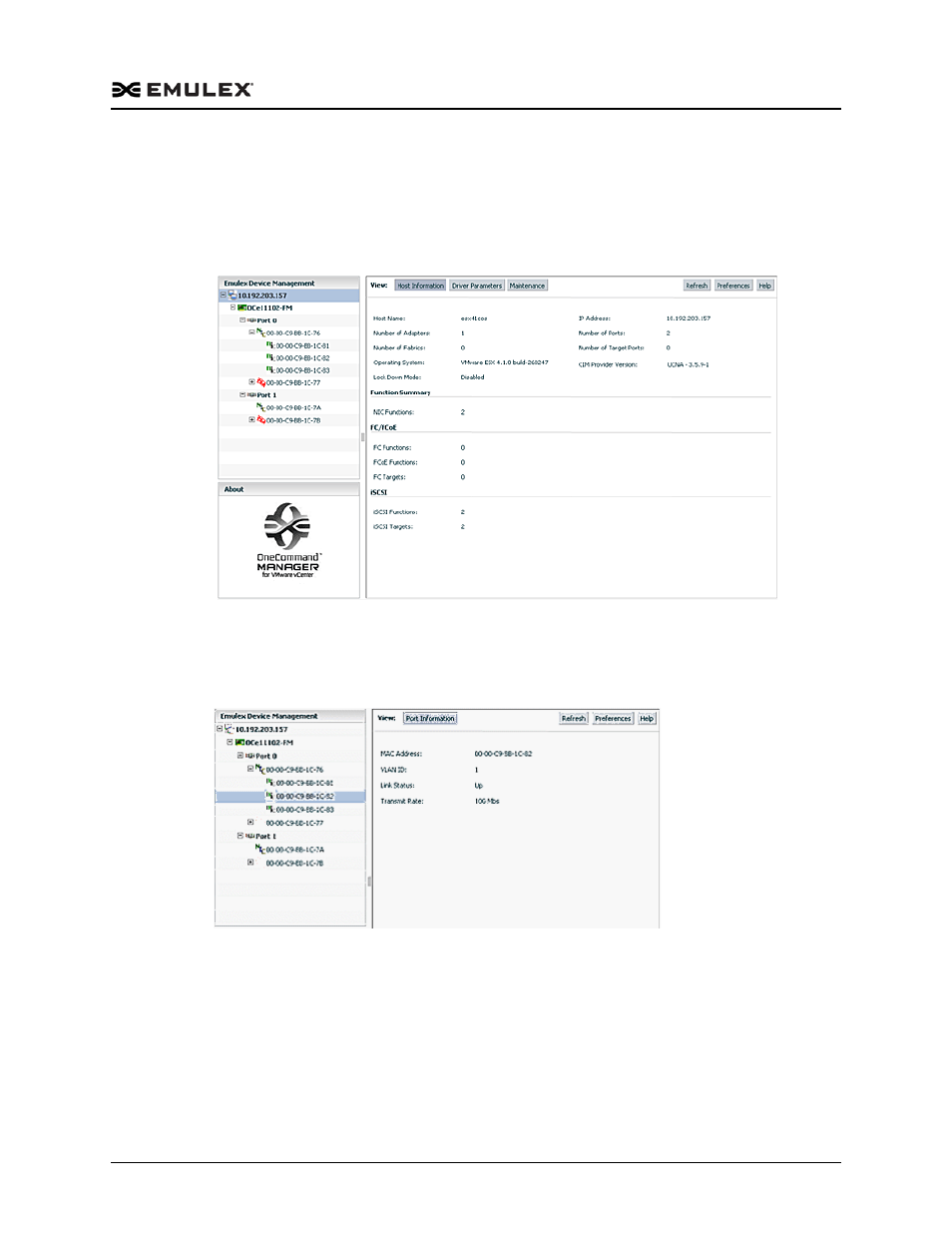

Figure 6-40 Virtual Functions Discovered on the Physical Function on the Host Operating System
Select the VF under the host operating system in the discovery-tree to display the Port
Information tab.
Figure 6-41 Port Information tab for NIC Virtual Function
Port Information Field Definitions for the Virtual Function

MAC Address – The NIC MAC address currently assigned to the port.

VLAN-ID – The VLAN identifier used by the NIC port.

Link Status – The status of the link on the selected port.

Transmit Rate – The rate at which data is transmitted over the port in Mbs.
