Concurrent Mode
When concurrent mode is available, up to three functions per port are configurable.

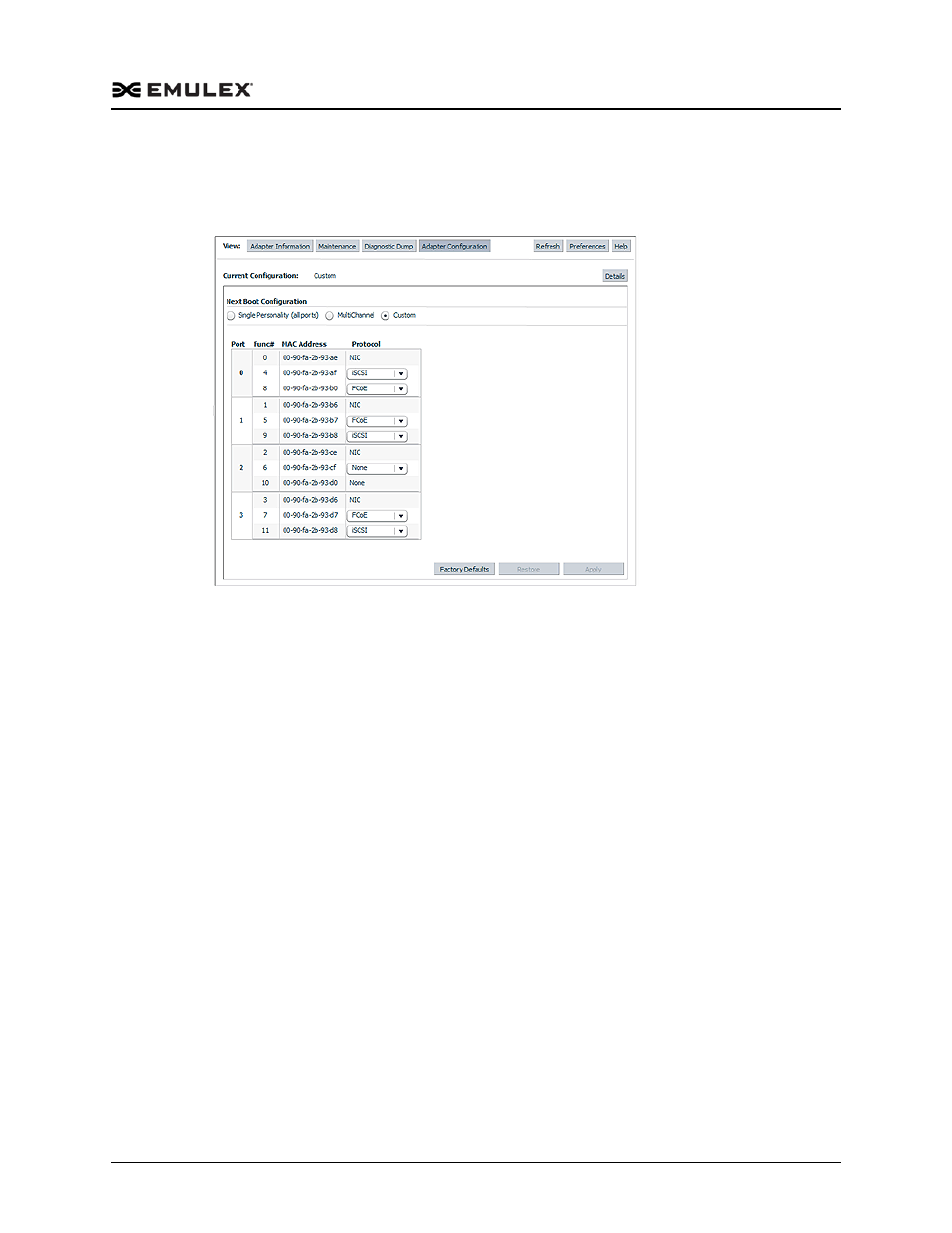

Figure 6-59 Concurrent Storage Configuration View
The pull down menu for selecting a storage protocol to run on the second and third
functions is the same as the pull down menu for mixed mode storage.
Concurrent Storage Configuration is subject to the following rules:

The first function must be NIC.

If two storage functions are configured on a port, they must be different storage
protocols (i.e. concurrent mode).

When you select the storage protocol for the second function, the choices in the
pull down menu for the third function are limited to the other storage protocol
or “None”.
Note: If you select the same protocol or “None” for all second functions on all ports
and “None” for all third functions, you essentially configured a single
personality. In this case, after clicking the Apply button, the tab switches to the
single personality view and the selected personality is shown in the personality
pull down menu.
