Boot for the Fibre Channel Protocol User Manual P010096-01A Rev. A
4. Emulex BIOS Utility
Configure Boot Devices
1421
4. If you select a device, you are asked for the starting LUN. Enter the starting LUN
(Figure 4-6). The starting LUN can be any number from 0 to 255.

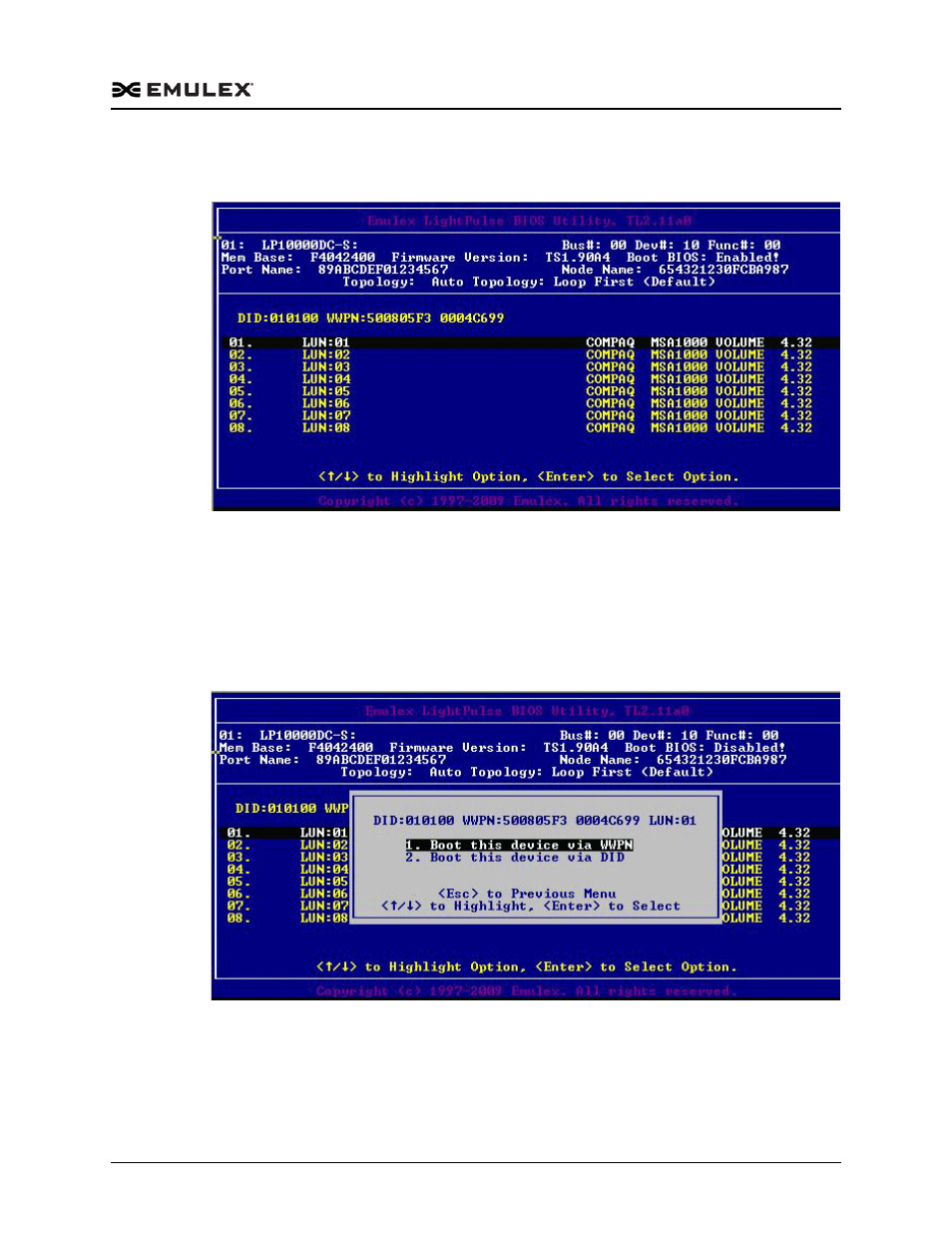

Figure 4-6 LUN listing Screen
You can define 256 LUNs per adapter, but the screen displays only 16 consecutive
LUNs at a time. In front of each entry, B#D or B#W specifies the boot entry number
and whether the device boots by DID or WWPN. For example, B1D means that boot
entry 1 boots from the DID. B2W means that boot entry 2 boots from WWPN.
5. Type the two digits corresponding to the entry you are selecting. The boot devices
menu (Figure 4-7) displays the following options:
Figure 4-7 Boot Devices Menu
6. Select the boot method you want. If you select to boot the device by WWPN, the
WWPN of the earlier selected entry is saved in the flash memory. However, during
the initial BIOS scan, the utility issues a Name Server Inquiry GID_PN (Get Port
