Dell Emulex Family of Adapters - Manual (Page 1449)

Boot for the Fibre Channel Protocol User Manual P010096-01A Rev. A
6. EFIBoot
Configure Adapter Parameters
1449
To change the link speed:
1. On the Adapter Configuration menu, select 4. Force Link Speed and press .
A screen similar to Figure 6-13 is displayed. Possible link speeds depend upon your
adapter model.

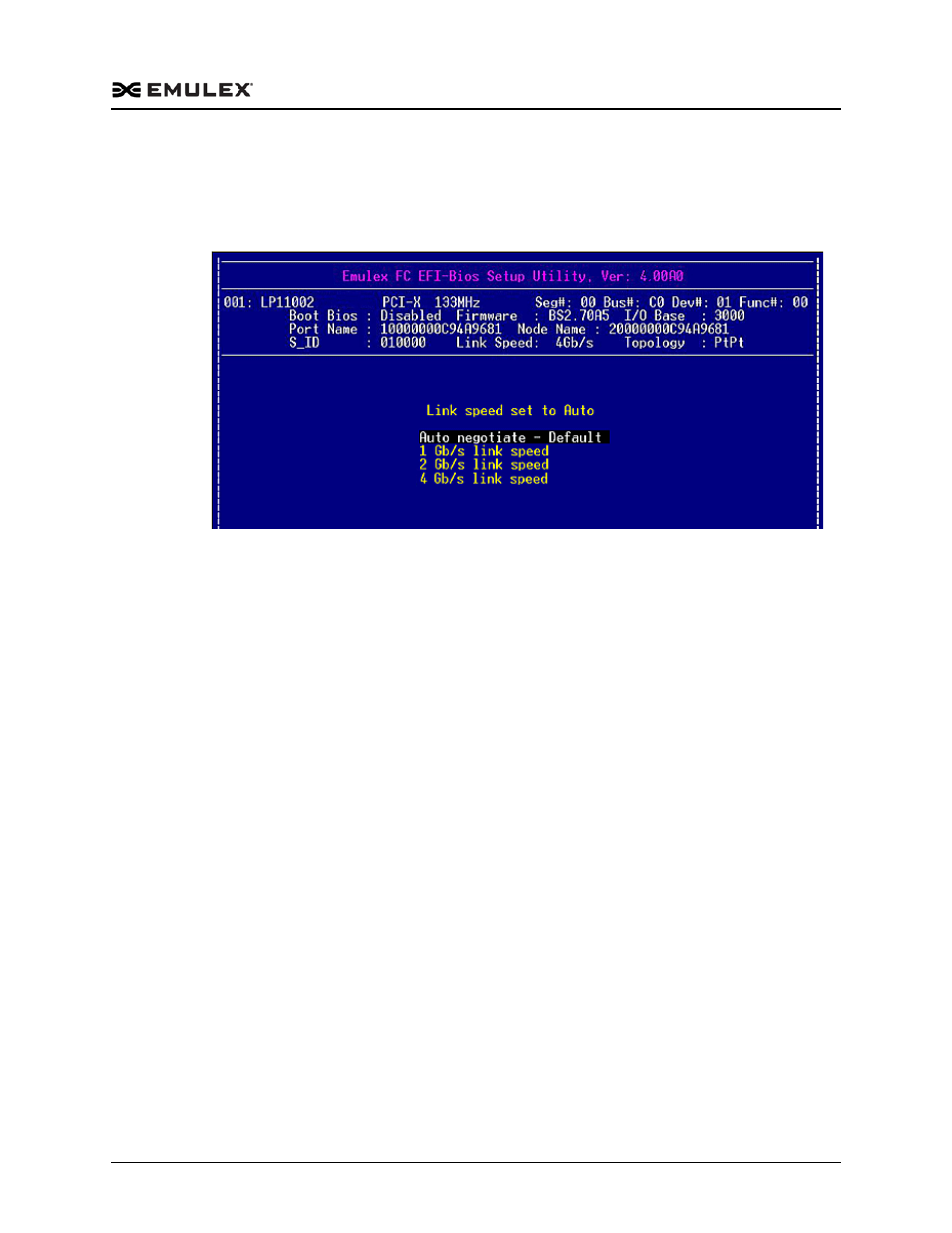

Figure 6-13 Force Link Speed Setup Screen
2. Use the up/down arrows to select a link speed and press .
Possible link speed choices:

1 Gb/s

1 and 2 Gb/s

1, 2, and 4 Gb/s

2, 4, and 8 Gb/s

4, 8, and 16 Gb/s
Note: Emulex 8 Gb/s adapters do not support 1 Gb/s link speed. Emulex 16 G/bs
adapters do not support 1 Gb/s or 2 Gb/s link speed. Additionally, some
older devices do not support auto link speed detection, therefore the link
speed must be forced to match the speed of those devices.
The screen is refreshed with the new value.
3. Press to return to the EFI utility menu.
