Boot for the Fibre Channel Protocol User Manual P010096-01A Rev. A
7. Configure EFIBoot via UEFI HII (Human Interface Infrastructure) in a UEFI 2.1 System
Configure Adapter Parameters
1484
Change the PLOGI Retry Timer
This option allows you to set the interval for the PLOGI retry timer. This option is
especially useful for Tachyon-based RAID arrays. Under very rare occasions, a
Tachyon-based RAID array resets itself and the port goes offline temporarily in the
loop. When the port comes to life, the PLOGI retry interval scans the loop to discover
this device.
You can choose:

Disable – Default

50 Msec

100 Msec

200 Msec
To change timer values:
1. From the Adapter Selection screen, select the adapter whose PLOGI retry timer
information you want to change and press .
2. From the Configure HBA Parameters menu, navigate to PLOGI Retry Timer and
press . The PLOGI Retry Timer menu appears.

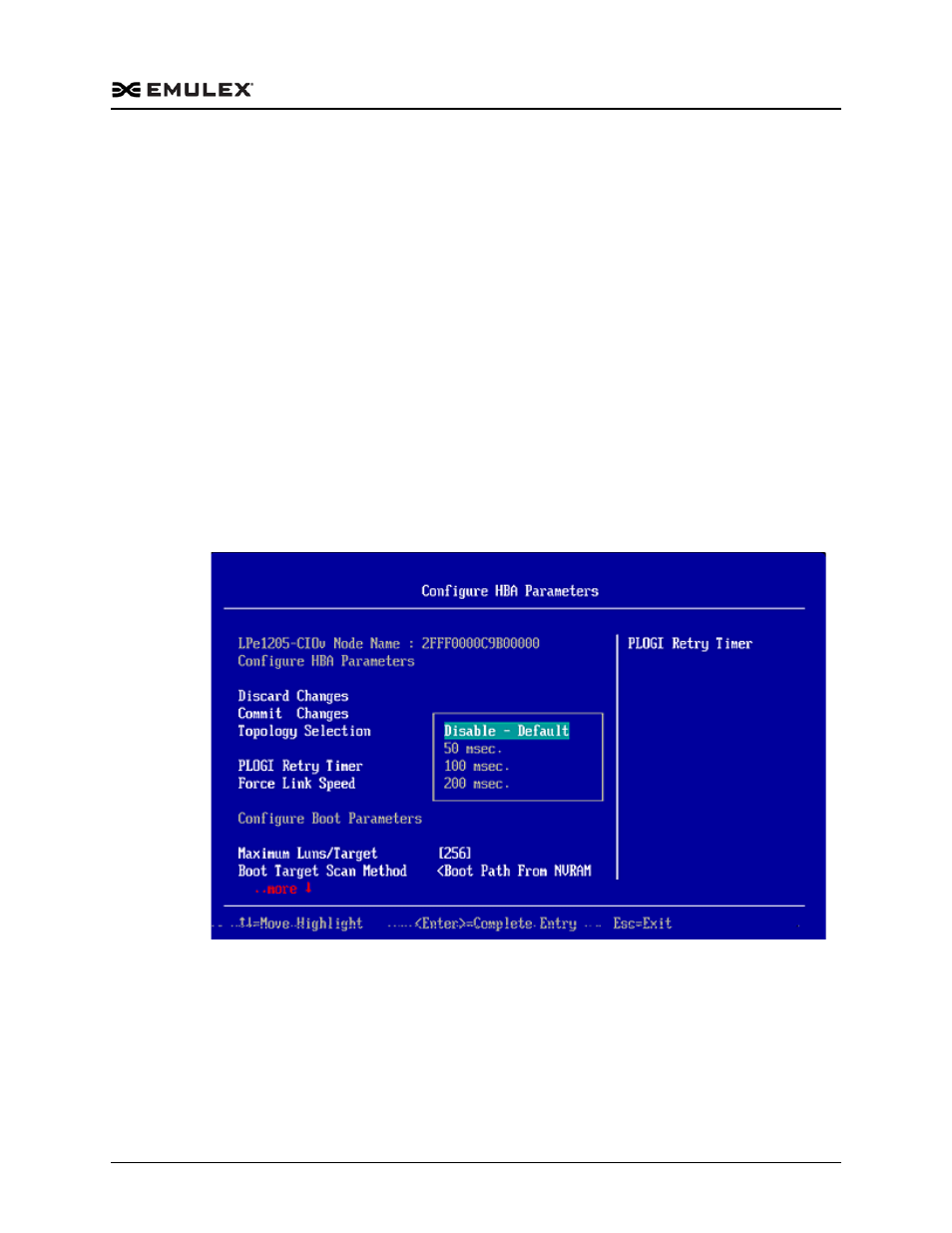

Figure 7-16 PLOGI Retry Timer Menu Screen
3. Select a retry timer option and press . The screen is refreshed with the new
value.
4. Press to return to the EFI utility menu.
5. Select Commit Changes and press .
