Appendix H. Configuring PXE Boot for NIC on Dell OCe14000-based Systems
Setting Up a PXE Bootable Network
1799
Configuring Port Options
To view the Port Configuration screen:
1. From Port Menu (Figure H-4), select 3. Port Configuration and press . The
Port Configuration screen appears.

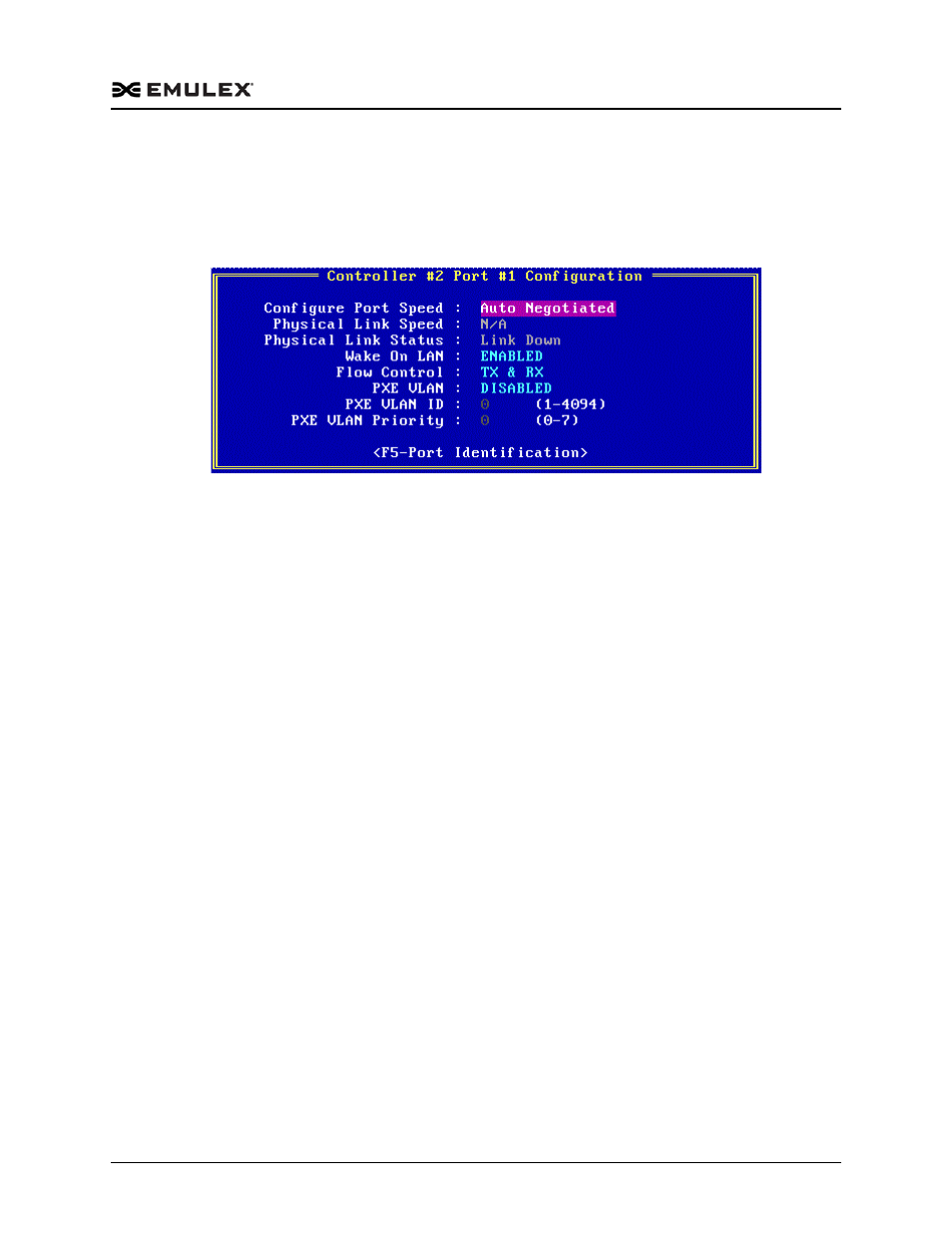

Figure H-9 Port Configuration Screen
2. From the Configure Partition screen, you can perform the following tasks:

Set the configured port speed – see “Setting the Configured Port Speed” on
page 1799 for instructions.

View the physical link speed and link status.

Configure Wake on LAN (WoL) – see “Configuring Wake on LAN” on
page 1799 for instructions.

Configure flow control – see “Configuring Flow Control” on page 1800 for
instructions.

Configure PXE VLAN, including the PXE VLAN ID and priority – see
“Configuring the PXE VLAN ID and Priority” on page 1800 for instructions.

Identify the port – see “Physically Identifying the Port” on page 1800 for
instructions.
Setting the Configured Port Speed
To set the port speed:
1. On the Port Configuration screen, use the left or right arrow keys to select Auto
Negotiated, 10G, or 1G for the Configured Port Speed setting.
2. Press to save.
Configuring Wake on LAN
To configure Wake on LAN:
1. From the Port Configuration screen, use the left or right arrow keys to enable or
disable the Wake on LAN setting.
2. Press to save.
