Dell Emulex Family of Adapters - Manual (Page 91)

OneCommand™ Manager Application P010066-01A Rev. A
5. Configuring Discovery
Discovery Using the TCP/IP Access Protocol
91
To add a single host:
1. From the Discovery menu, select TCP/IP>Add Host. The Add Remote TCP/IP
Host dialog box appears.

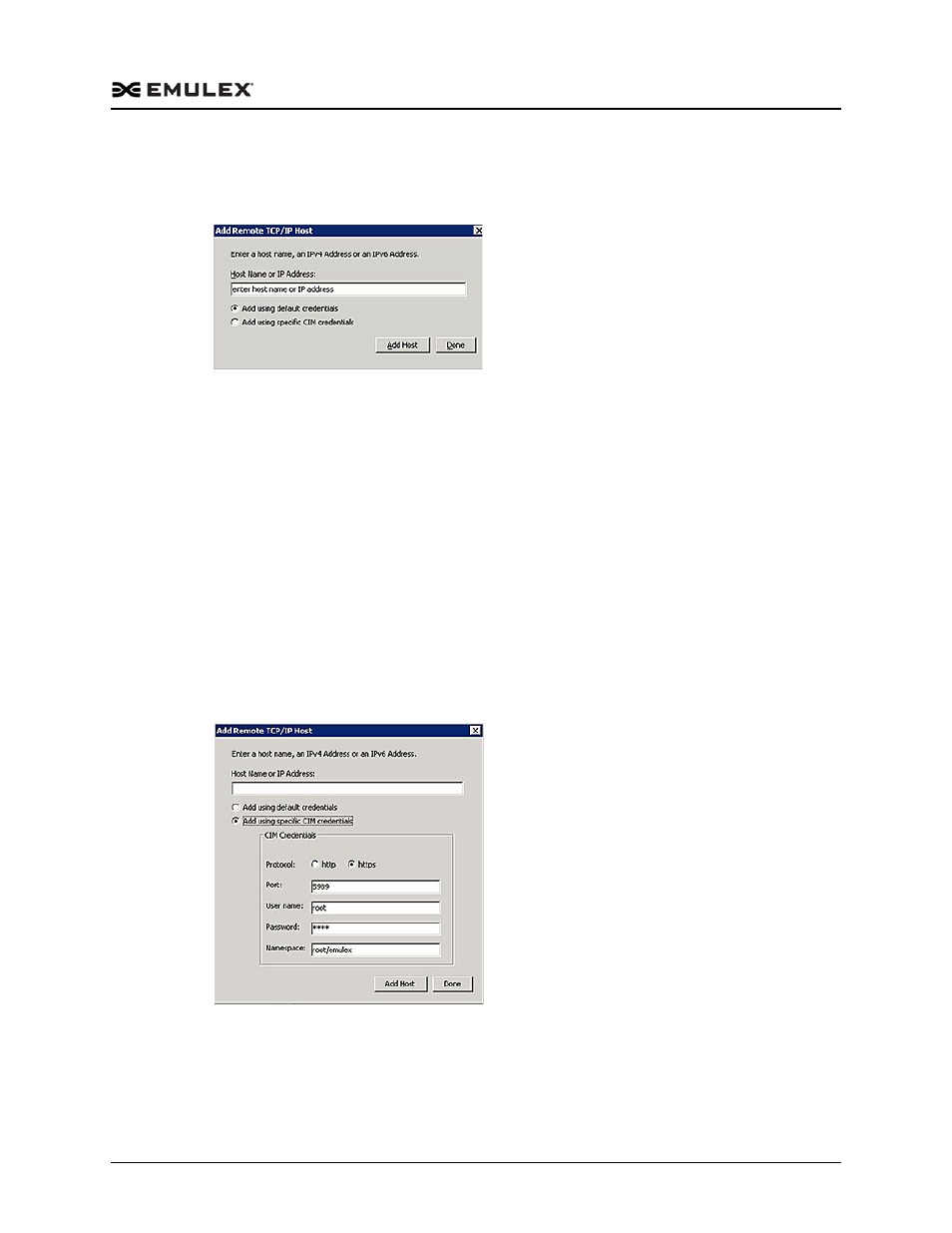

Figure 5-2 Add Remote TCP/IP Host Dialog Box
2. Enter the name or the IPv4 or IPv6 address of the host to be added.
Note: Entering the IP address to identify the host avoids possible name resolution
issues. IPv6 address tuples are delimited by colons and can be entered in a
shortened form suppressing 0's as defined by the IPv6 address specification.
3. Configure the discovery method:

If you want to add the host using default discovery methods, check Add using
default credentials and click Add Host. A message appears indicating whether
the new host was successfully added.

If you want to add the new host using specific CIM credentials, check Add
using specific CIM credentials, modify any additional CIM settings and click
Add Host. The Add Remote TCP/IP Host dialog box appears with default CIM
settings.
Note: Remote CIM hosts can only be managed by Windows client systems.
Figure 5-3 Add Remote TCP/IP Host Dialog Box with CIM Credentials
4. Edit the default CIM settings if necessary and click Add Host. A message appears
indicating the new host was successfully added.
