Selecting the IP Version
To select the IP version:
1. From the Network Configuration screen (Figure 9-8), select IP Version and press
. A pop-up menu appears.

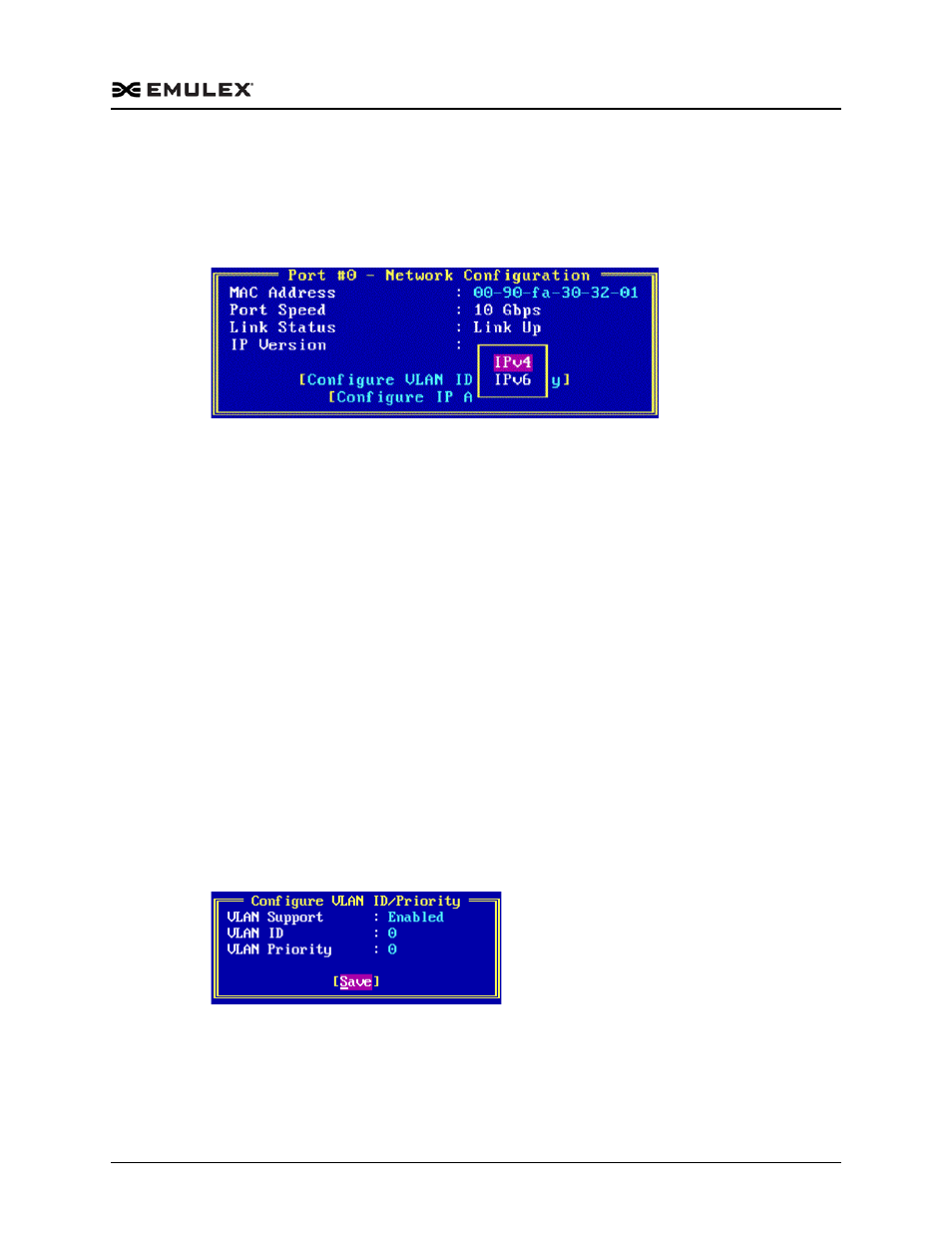

Figure 9-9 Network Configuration Screen with IP Version Pop-up Menu
2. Select IPv4 or IPv6 and press .
Configuring VLAN ID and VLAN Priority
A Virtual Local Area Network (VLAN) is a way of partitioning the network. If the LAN
is made up of all devices within a broadcast domain, a VLAN is a broadcast domain
made up of switches. You first create a VLAN and then assign ports to a VLAN. All
ports in a single VLAN are in a single broadcast domain.
You do not have to configure VLANs unless your network is already using them. Some
reasons why VLANs are used include:

A LAN increases in size with several devices.

A LAN has increased broadcast traffic on it.

Groups of users on a LAN need more security.
A VLAN ID, like an IP address or initiator name, is assigned a value to uniquely
identify it on a network. A VLAN priority is set to determine what packet gets priority
order within a VLAN.
To configure a VLAN ID and VLAN priority:
1. On the Network Configuration screen (Figure 9-8), select Configure VLAN
ID/Priority and press . The Configure VLAN ID/Priority screen appears.
Figure 9-10 Configure VLAN ID/Priority Screen
2. Select the VLAN Support pop-up menu and select Enabled.
3. Set a VLAN ID number. This is a unique value you assign to each VLAN on a single
device. There are a maximum of 4095 possible values ranging from 0-4094.
