9. Diagnostics
LightPulse FC HBA Diagnostic Tests
1316
2. Browse to the desired directory, change the log file name if you want and click Save
to File.
Creating FC Port Diagnostic Dumps
Diagnostic dump enables you to create and manage a diagnostic dump for a selected
FC port. Dump files contain information, such as firmware version and driver version
for example, that is particularly useful when troubleshooting an adapter.
To start a diagnostic dump:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the FC port.
3. Select the Diagnostic Dump tab. The Diagnostic Dump information pane appears.

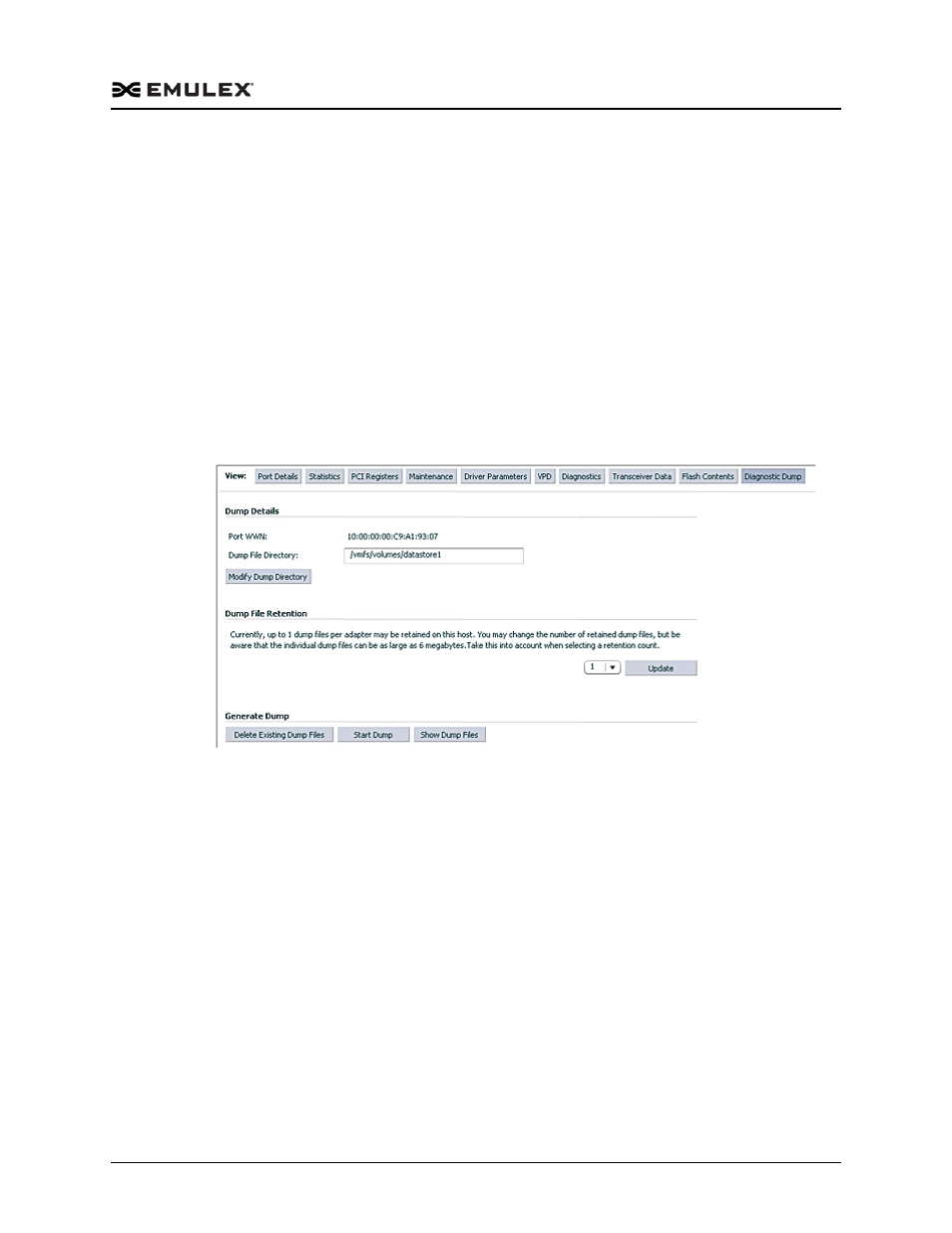

Figure 9-8 FC Port Diagnostic Dump Tab
4. Enter a name in the Dump File Directory field in the Dump Details area to set the
dump file directory. A prefix of /vmfs/volumes is added to the location, if it is not
specified.
5. To specify up to 20 files to retain using the Dump Files Retention counter, enter the
number of files and click Update.
6. Click Start Dump to initiate a diagnostic dump on the selected FC port. Click
Delete Existing Dump Files to remove existing dump files for the selected FC port.
Caution: Disruption of service may occur if a diagnostic dump is run during I/O
activity.
Diagnostic Dump Tab Field Definitions

Serial Number – The port WWN.

Dump File Directory – The location where the dump files are created.

Dump File Retention – The number of dump files per FC port to retain on the
host.
