OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
OCe14000-Series Adapters
219

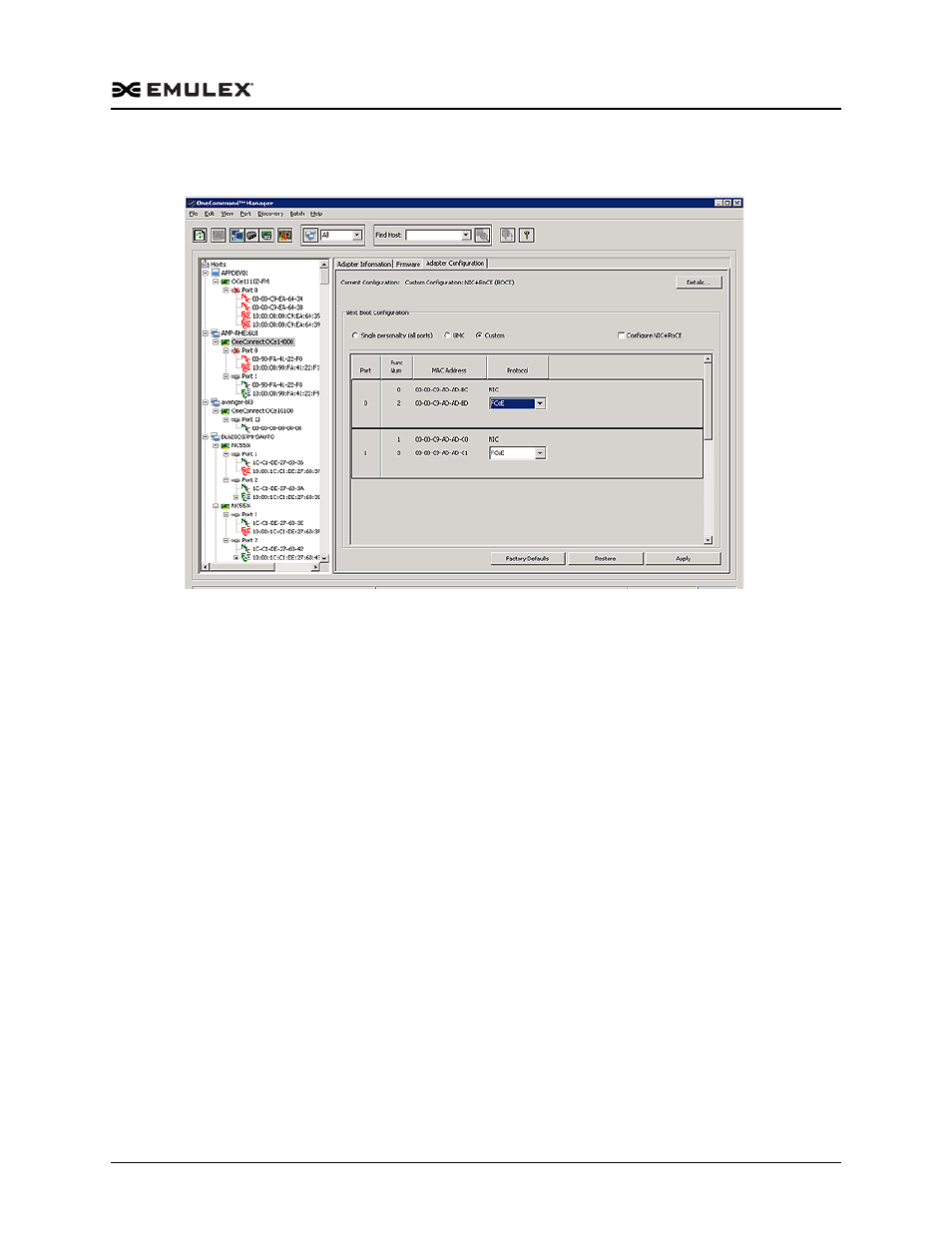

When the Custom radio button is selected, the Adapter Configuration tab looks like the
following:
Figure 8-73 Custom View
Note: Custom configurations are only available if the adapter supports mixed or
concurrent mode storage.
Note: If you configure all ports the same, you essentially configured a single
personality.
To set up a custom configuration:
1. From the discovery-tree, select the OCe14000-series adapter whose personality you
want to configure.
2. From the Adapter Configuration tab, check the Custom radio button.
3. Select the personality you want to apply from the Protocol pull-down menu for
each port.
4. Click Apply. A message appears notifying you of the profiles activation
requirements. Not all selections require a reboot.
Mixed Mode Configuration
When mixed mode is available, up to two functions per port can be configured. The
first function is always NIC. The second function can be a storage protocol or “None”.
