Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual

P010097-01B Rev. A

Appendix C. Examples for Configuring and Booting UEFI NIC

Configuring the IBM HS22 Blade with e-Raptor MEZZ

1741

9. The Driver Update Medium Selection listing is displayed. Select a medium and

click OK.

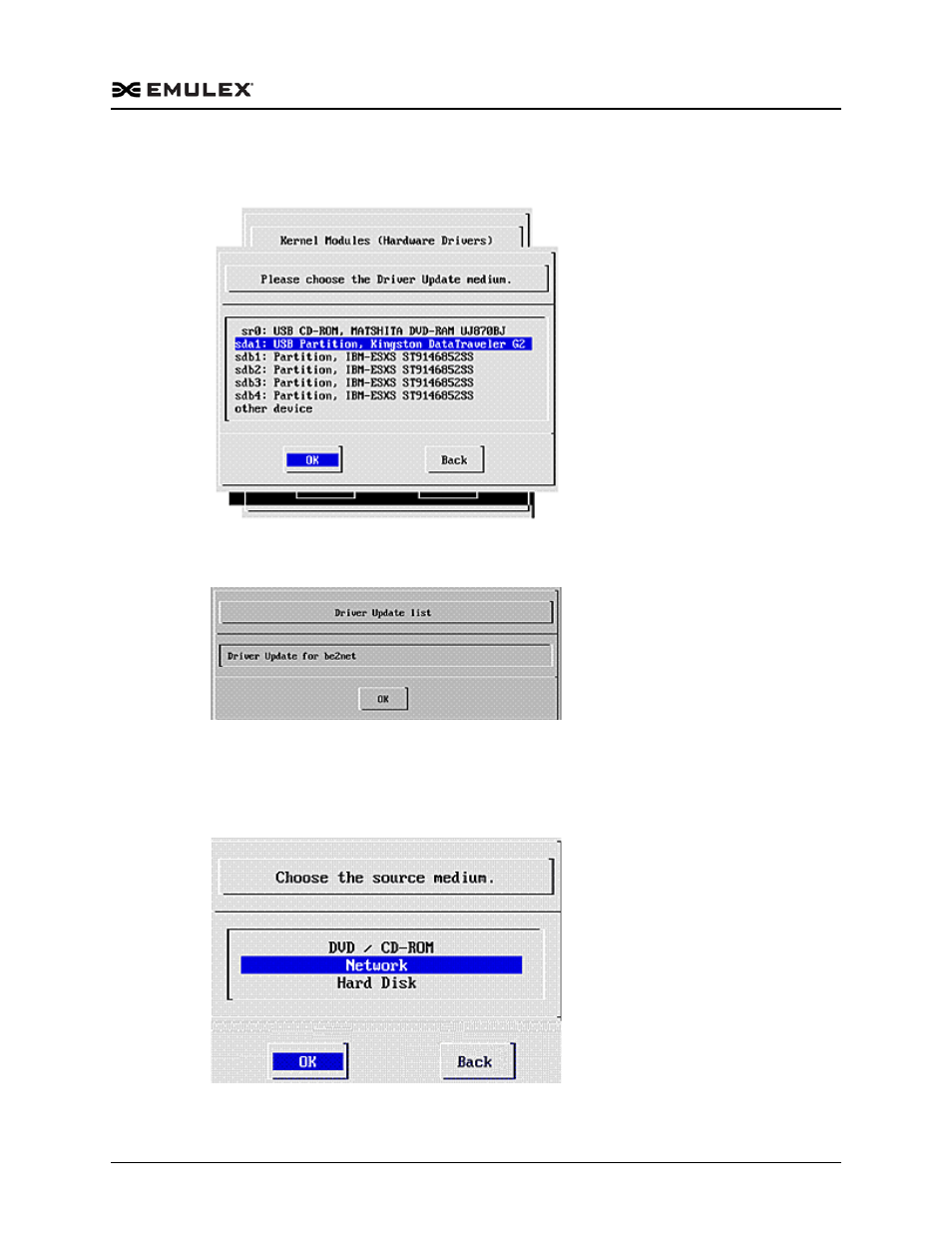

Figure C-9 Driver Update Medium Selection Listing

10. The Driver Update List confirmation dialog box is displayed. Click OK.

Figure C-10 Driver Update List Dialog Box

11. The Expert menu (Figure C-7) is displayed. Click Back.
12. The Main menu (Figure C-6) is displayed. Select Start Installation and click OK.
13. The Source Medium Selection menu is displayed. Select Network and click OK.

Figure C-11 Source Medium Selection Menu
