Max. BW – Maximum bandwidth at which the port is guaranteed to run.
Viewing the Channel Management Tab for UFP
For adapters that support UFP, the UFP properties are displayed in the Channel
Management tab when UFP is enabled. The Port Channel Management tab for UFP is
read-only with specific attributes listed in the table as shown in Figure 6-47.
Note: UFP is supported only on IBM virtual fabric adapters. For specific information
as to whether it is supported on a specific adapter, see the release notes that are
available on the IBM adapter pages on the Emulex website.
To view UFP channel management:
1. From the discovery-tree, select the UFP adapter port whose channel information
you want to view.
2. Select the Channel Management tab.

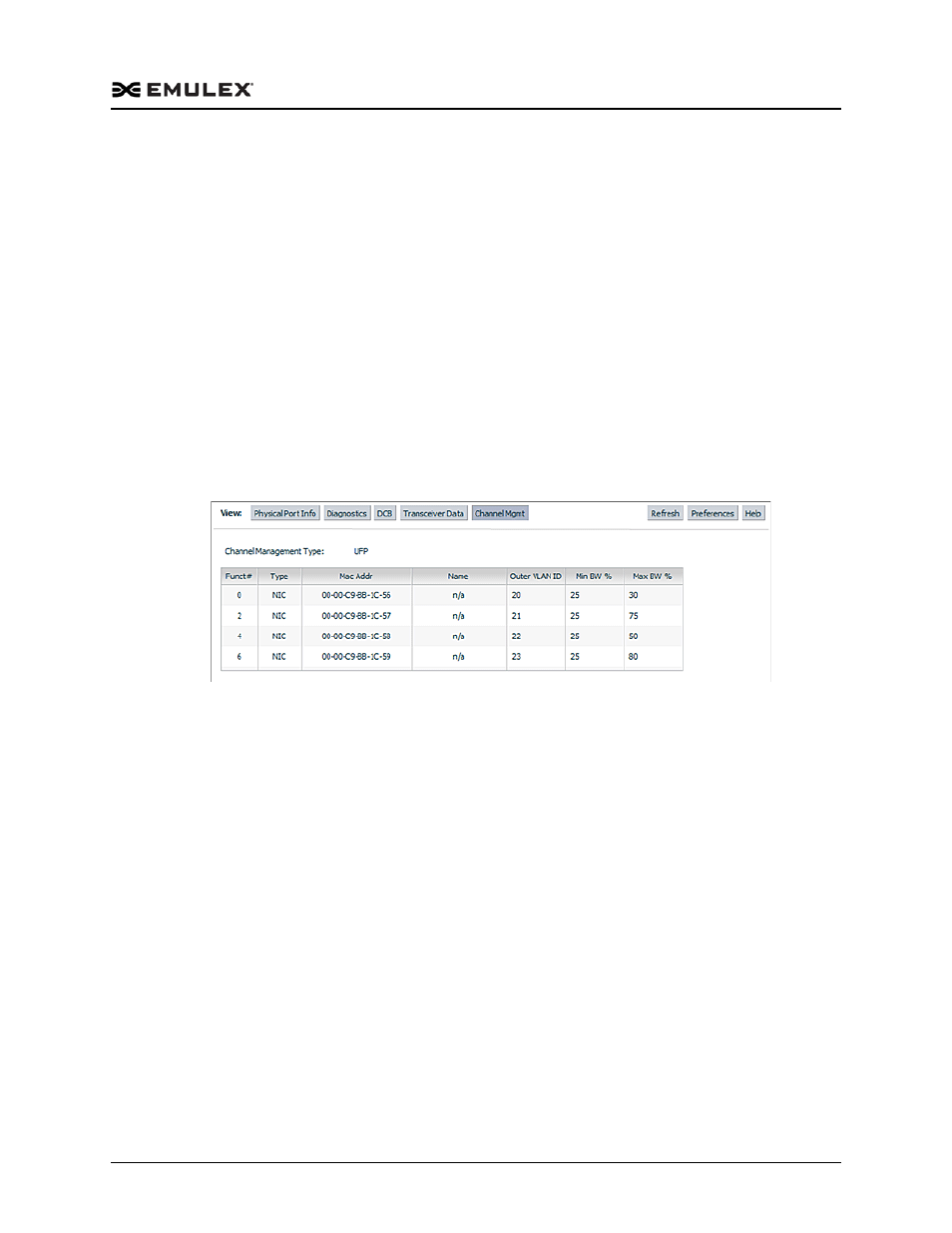

Figure 6-47 Channel Management Tab in UFP Mode
Channel Mgmt Field Definitions for UFP

Channel Management Type – The channel management protocol type in use.

Function Number – The function number assigned by the system to the channel.

Type – The protocol type in use.

MAC address – The MAC address assigned to the channel.

Name – The name assigned to the UFP by an administrator during switch
configuration.

Outer VLAN ID – The VLAN identifier used between the NIC port and the
switch. The switch maps this value into the VLAN ID used on the network.

Min. Bandwidth – The minimum bandwidth at which the port is guaranteed to
run.

Max. Bandwidth – The maximum bandwidth at which the port is guaranteed to
run.
