OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
NIC
192

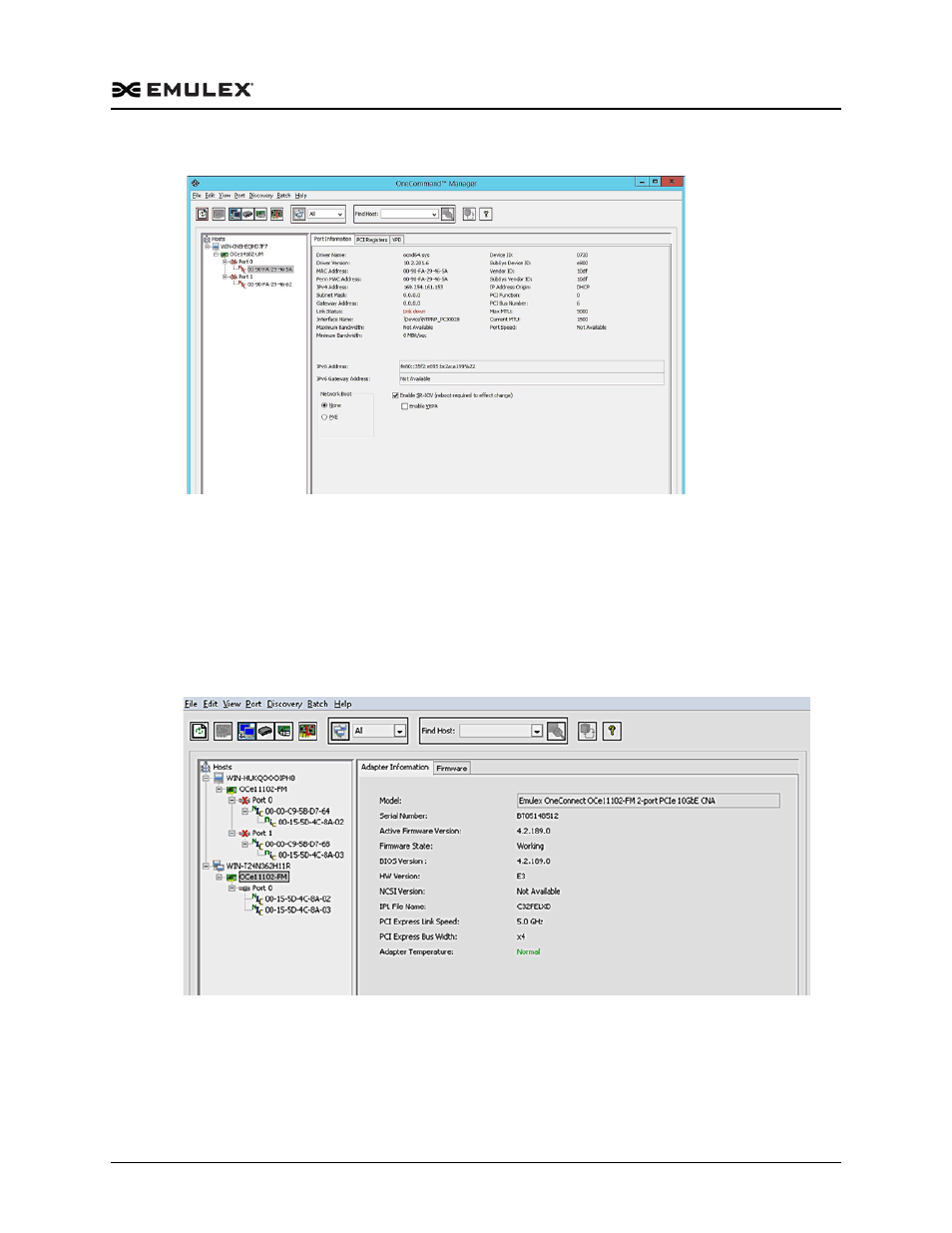

Figure 8-51 Port Information Dialog Box with NIC VF selected (OCe14102 adapter selected)
Guest Operating System Discovery and Management from
the Base Host Operating System
When the OneCommand Manager application is installed on a guest operating system,
the guest operating system and VF are discovered by the OneCommand Manager
application running on the host operating system. The guest operating system host
appears as a remote host in the discovery-tree.
Figure 8-52 OneCommand Manager Application Running on the Base Host Operating System after
Discovering the Guest Host
The NIC for the discovered guest operating system matches one of the VFs in the base
host operating system as seen in Figure 8-53.
