OneCommand NIC Teaming and VLAN Manager User Manual P009415-01A Rev. A
3. Using the OneCommand NIC Teaming and VLAN Manager
Configuring a VLAN
775
3. Select the VLANs tab. The VLANs tab is displayed.

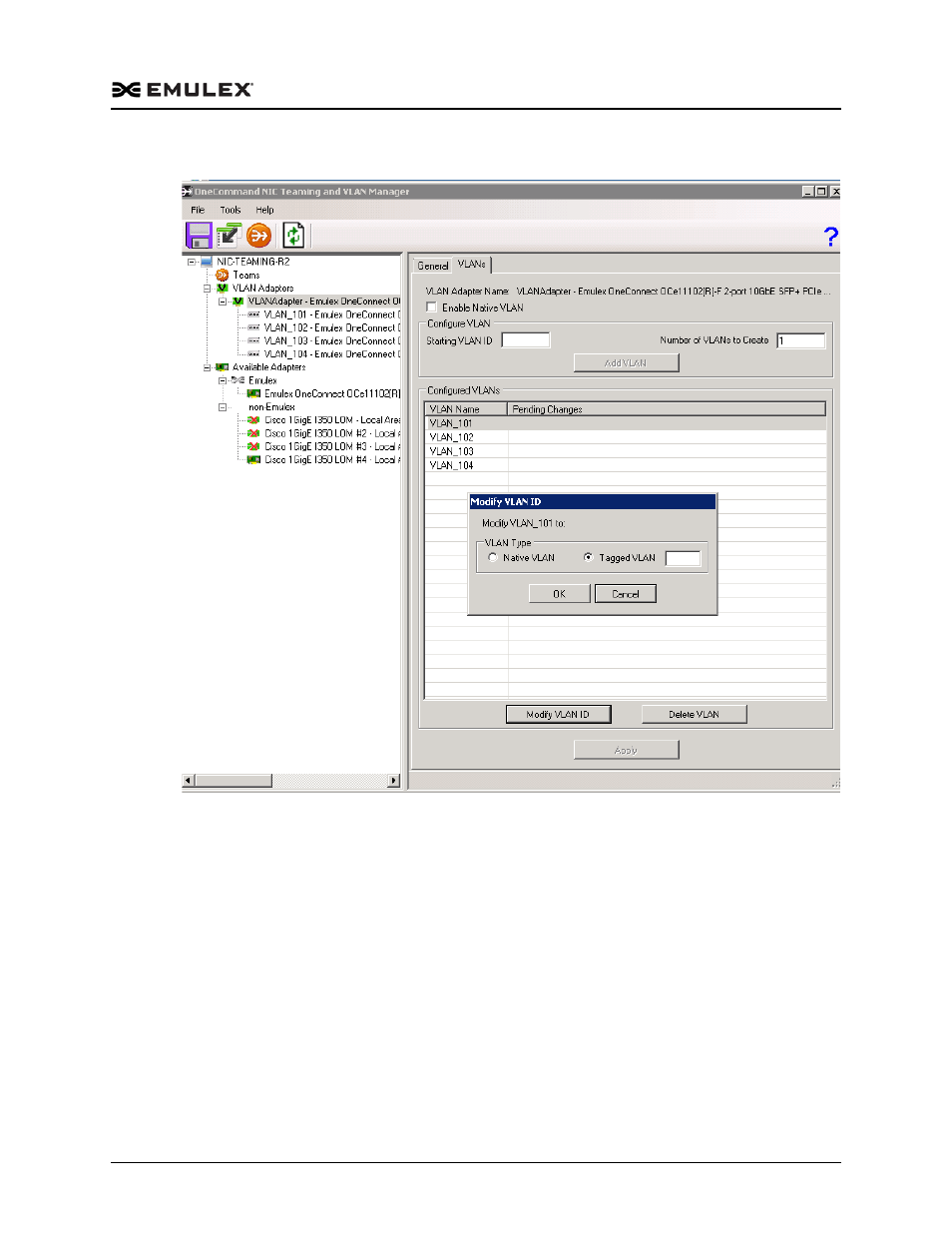

Figure 3-14 VLANs Tab
4. Enter a Starting VLAN ID. Valid tag values are from 1—4094.
5. Enter the number of VLANs to create.
6. Click Add VLAN to add the VLAN to the team. You can create up to 48 VLANs for
a team. The Configured VLANs area shows the list of VLANs configured for the
team.
The VLAN Name shows the VLAN Name in the format VLAN_.
7. Click Apply. The VLAN is added to the selected team.
