OneCommand™ Manager Application P010066-01A Rev. A
10. Updating Adapter Firmware
Updating Firmware for a Single Adapter
250
3. Select the Maintenance or Firmware tab and click Download Firmware. If the
warning screen appears, click Yes. The Firmware Download dialog box appears.

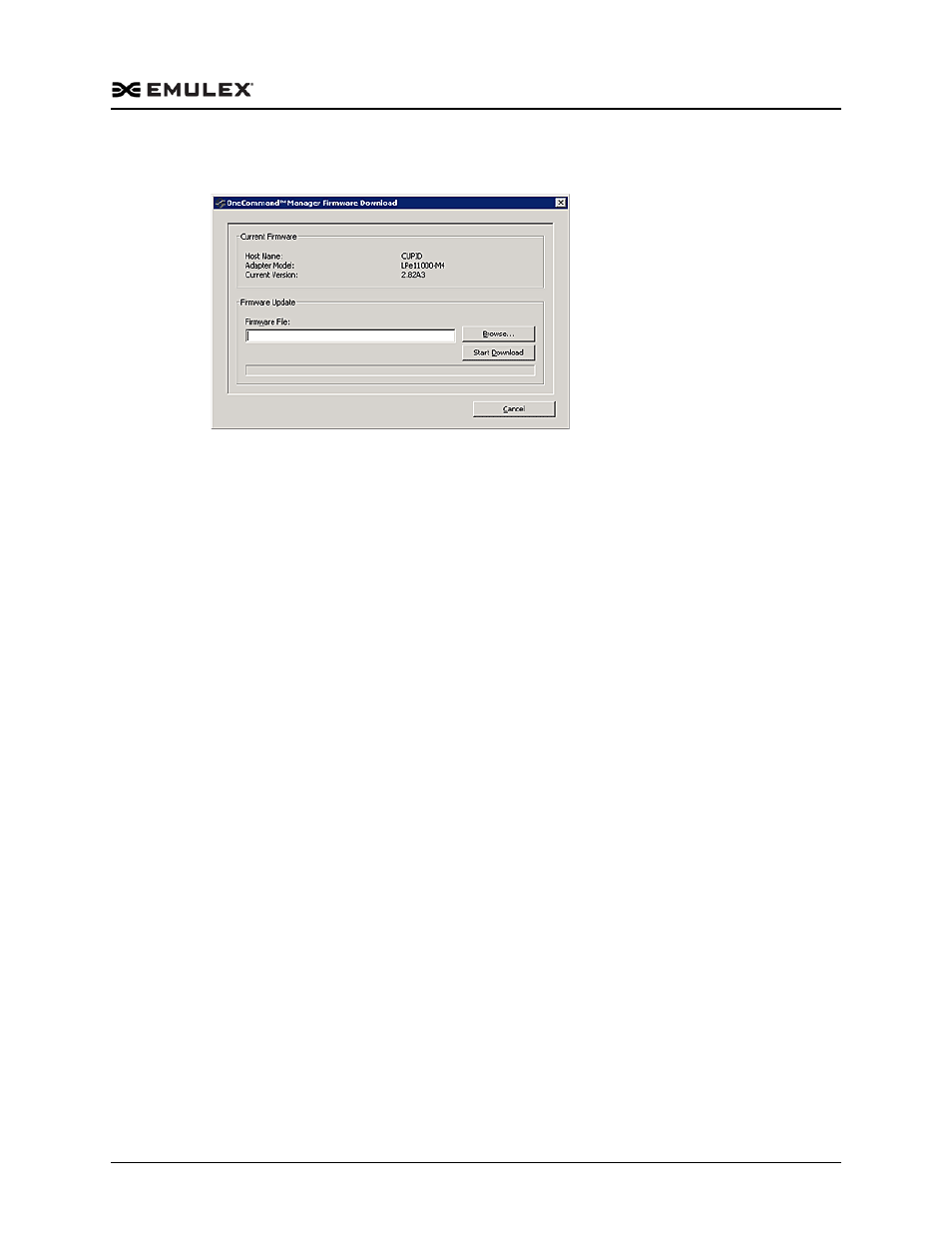

Figure 10-1 Firmware Download Dialog Box
4. Using the Firmware Download dialog box, navigate to the unzipped, extracted
image file you want to download. The firmware image may be specified either by
entering the image file's full pathname in the “Firmware File” field or by clicking
the Browse button.
If you click Browse, the Firmware File Selection dialog box appears. Select the file
you want to use and click OK. The Firmware Download dialog box appears.
5. Click Start Download. A warning dialog box appears.
6. Click Yes. A status bar shows the progress of the download. The adapter in the
discovery-tree is displayed in black text when the update is complete.
Note: The adapter in the discovery-tree is displayed in red text when it is offline.
7. Click Close. The Firmware tab displays the updated firmware information for the
selected adapter.
If you are updating the firmware on a dual-channel FC adapter, repeat steps 1
through 7 to update the firmware on the second port or use the “Updating
Firmware for Multiple Adapters” procedure.
Note: If the state of the FC boot code on the board has changed, this change is
reflected immediately on the Port Information tab.
