Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
8. Configuring iSCSI Boot Support with the iSCSISelect Utility
Booting the System
1598
10. From the Controller Configuration menu, select Network Configuration and press
. The Network Configuration screen appears.

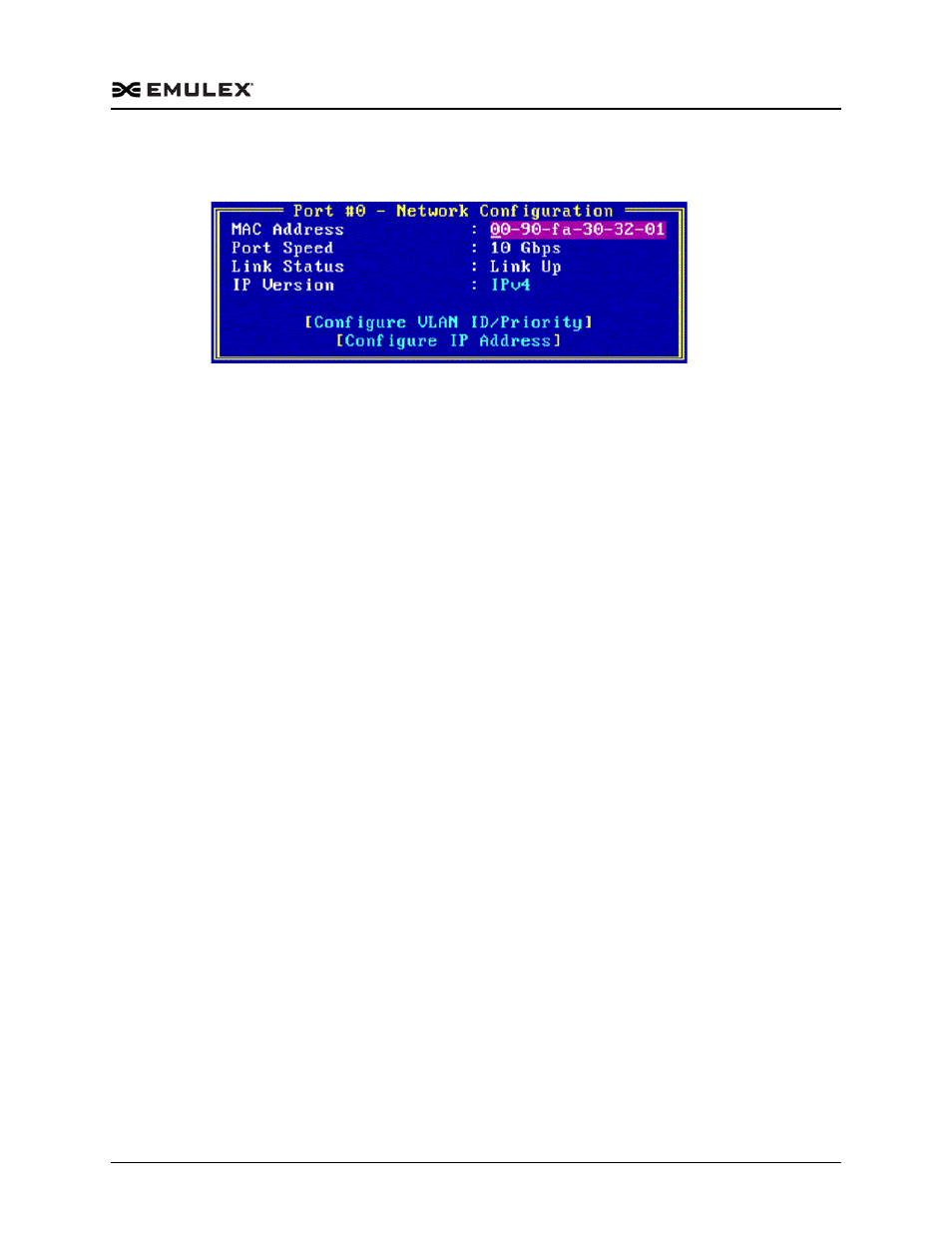

Figure 8-5 Network Configuration Screen
11. Configure a network IP address. From the Network Configuration screen, you can
do the following:

Select the IP version. You can choose IPv4 or IPv6. For more information, see
“Selecting the IP Version” on page 1604.

Set up an IP address. For more information, see “Configuring the IP Address”
on page 1605.
12. If desired, configure a VLAN ID. For more information, see “Configuring VLAN ID
and VLAN Priority” on page 1604.
13. After configuring the network, you can add a SCSI target. From the Controller
Configuration menu, select iSCSI Target Configuration, then select Add a New
iSCSI Target. For more information, see “Adding iSCSI Targets” on page 1610.
14. After you have successfully configured the iSCSI initiator and target, reboot the
system.
Booting the System
After you have successfully set up your basic boot configuration, exit the iSCSISelect
utility and the system automatically reboots. During the next boot up, the iSCSI BIOS
logs into the configured iSCSI boot target and display its target/LUN information in
the BIOS sign-on banner. For example:
Controller#0 Port#0 Base 0xFCE60000 at Bus:01 Dev:00 Fun:02
Controller#0 Port#1 Base 0xFCEA0000 at Bus:01 Dev:00 Fun:03
<<< Press for iSCSISelect(TM) Utility >>>
Initiator iSCSI Name: iqn.2004-05.com.emulex
Initiator IP Address: 172. 40. 1.41
Initiator IP Address: 172. 40. 1.62
Drive #0 NETAPP LUN 0 2048 MB
Drive Geometry 105 3FFF
BIOS Installed Successfully!
