Dell Emulex Family of Adapters - Manual (Page 1726)

Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
Appendix B. Example for Installing and Configuring Linux or Citrix for PXE Boot and UEFI Boot
Linux and Citrix PXE Server Remote Installation Procedure
1726

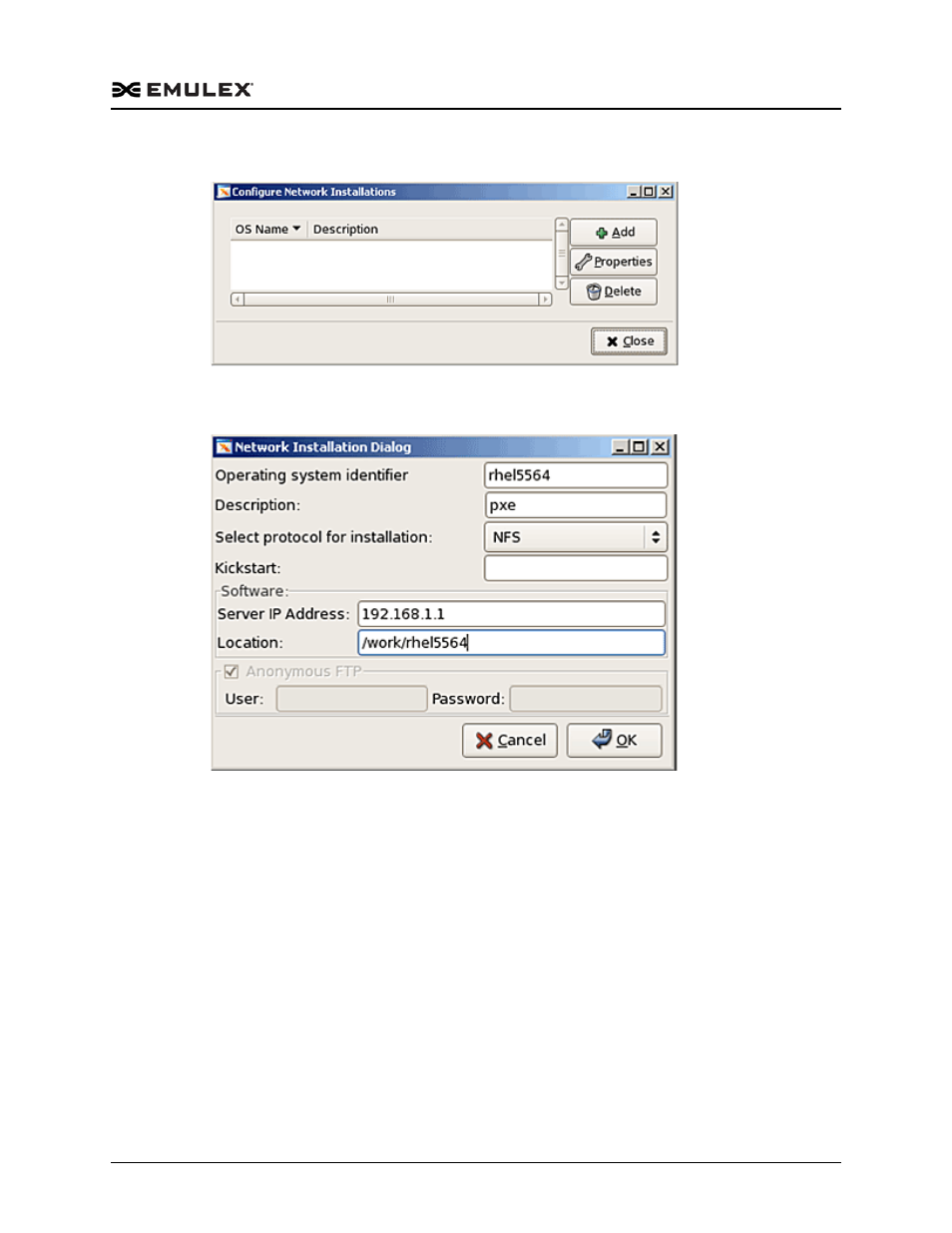

2. The Configure Network Installations window is displayed. Click Add.
Figure B-2 Configure Network Installations Window
3. The Network Installation Dialog window is displayed.
Figure B-3 Network Installation Dialog Window

Enter the operating system identifier and description.

Select pxe as the protocol for installation.

Enter the IP address of the TFTP server (as set up in the DHCP server
configuration) in the server IP address field.

Enter a directory location for the server.
