OneCommand Manager for VMware vCenter Version 10.2 User Manual

P010089-01A Rev. A

6. Managing Adapters and Ports

Viewing and Managing FC/FCoE LUNs

1210

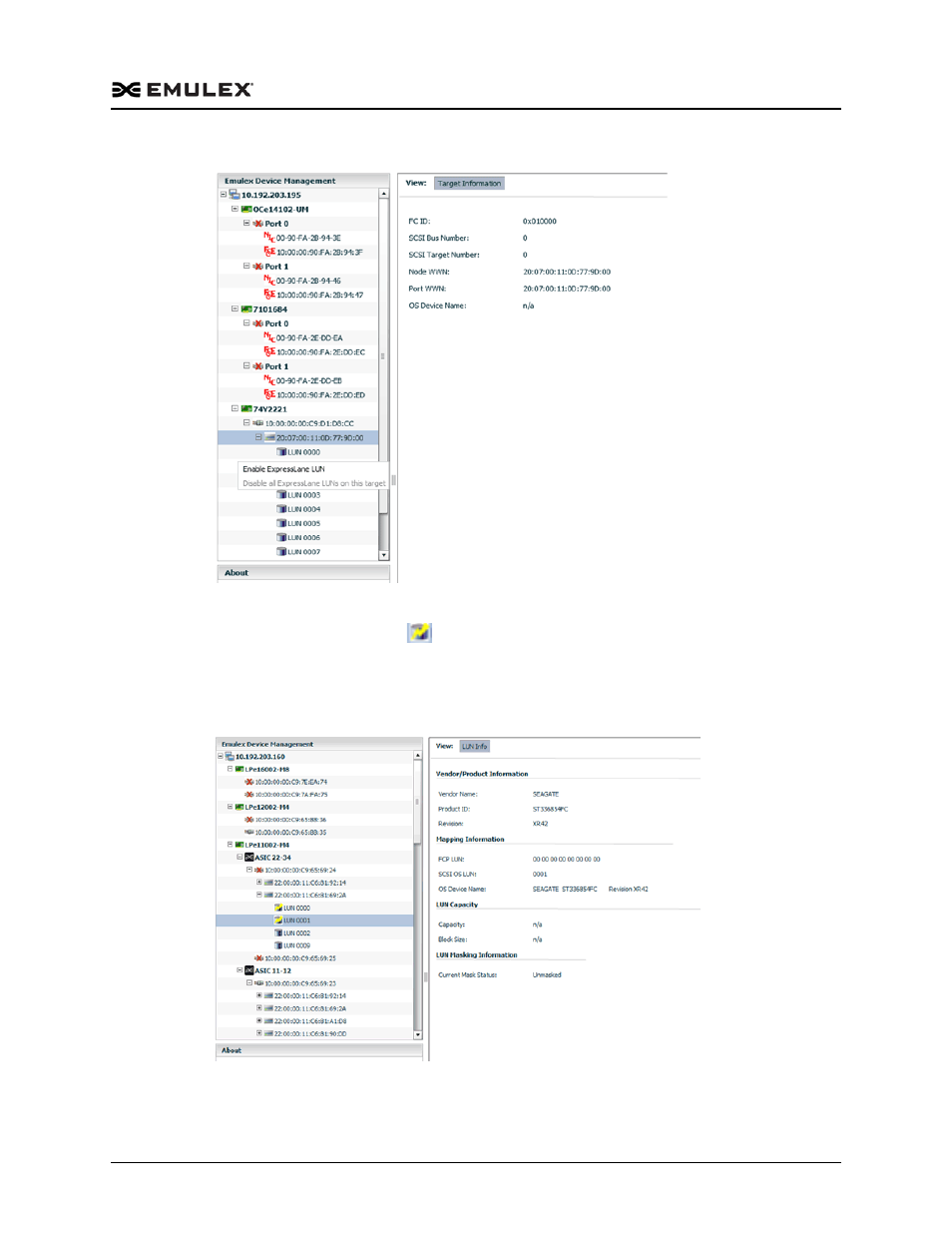

Figure 6-11 Enable ExpressLane LUN Pull Down Menu

The LUN icon changes to

Note: The ExpressLane state of a LUN is enabled at the driver (active) level and

the configured level (persists across reboots).

Figure 6-12 FC/FCoE LUN with ExpressLane Enabled
