13. Diagnostics
LightPulse FC HBA Diagnostics
274
3. Click Start. The following warning appears:

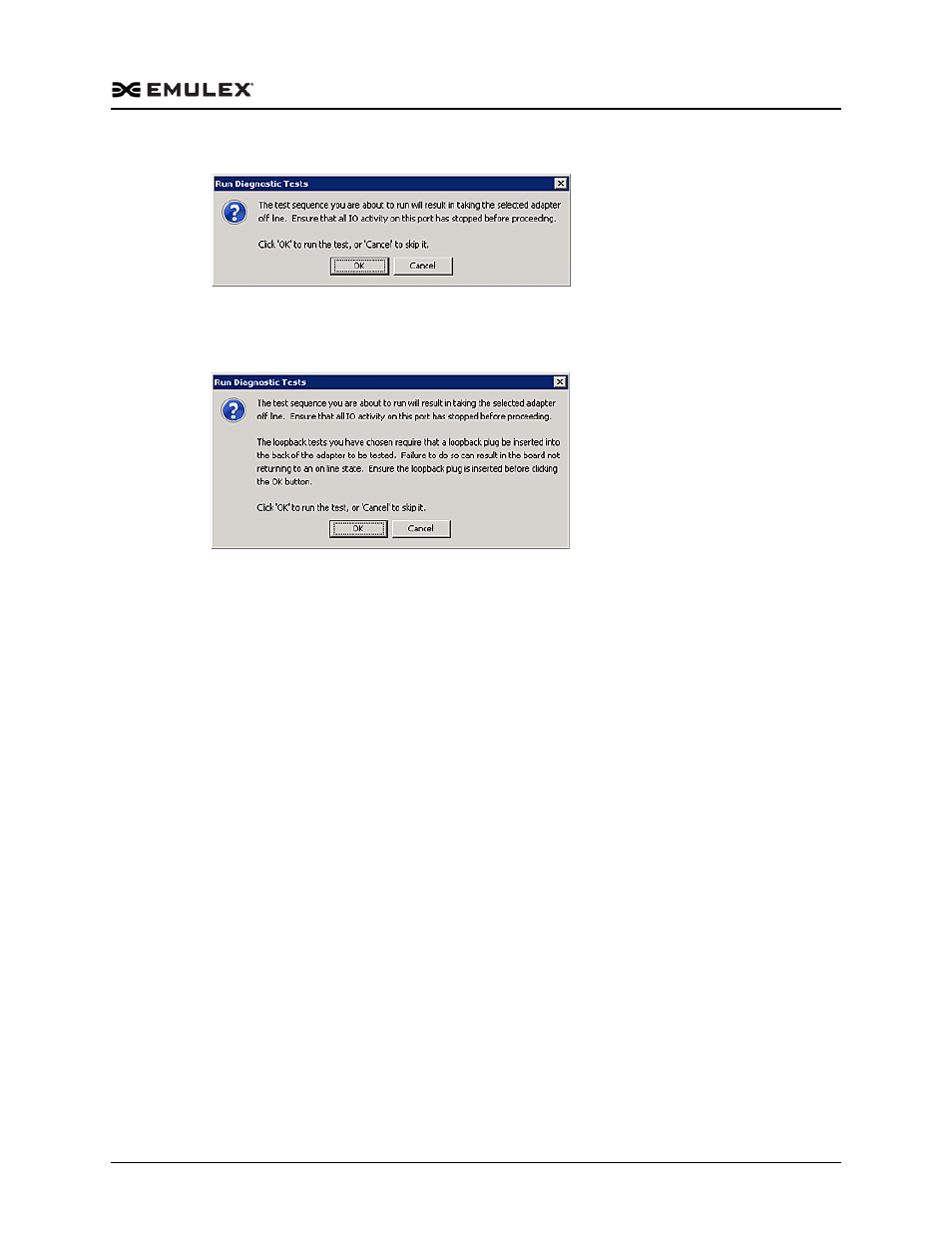

Figure 13-9 Run Diagnostic Tests Warning
4. Click OK. If you choose to run an External Loopback test the following window
appears.
Figure 13-10 Advanced Diagnostic Tests Warning Window for External Loopback
5. Click OK. The progress bar indicates that the test is running.
Periodic test feedback, consisting of the current loopback test/cycle plus the
completion status of each type of test, is displayed in the Test Log section of the
dialog box. Click Clear to erase the contents of the log display or click Save to File
to save the log file. After starting the tests, you can click Stop Tests to stop the tests
before they complete. Depending upon the tests being run, it may take some time
before they stop.
Running End-to-End (ECHO) Tests
Run echo tests using the End-to-End (ECHO) Test section of the Diagnostics tab. The
end-to-end test enables you send an ECHO command/response sequence between an
adapter port and a target port. (Not available in read-only mode.)
Note: Not all remote devices respond to an echo command. You cannot run the ECHO
test and the External Loopback test concurrently. If you select the ECHO Test
the External Loopback test is disabled.
To run end-to-end echo tests:
1. From the discovery-tree, select the adapter port from which to initiate the
End-to-End (ECHO) Test.
2. Select the Diagnostics tab. Click Advanced Diagnostic Tests.
Check Echo Test. Enter the World Wide Port Name (WWPN) for the target.
Click Select From List if you do not know the actual WWPN of the test target. The
Select Echo Test Target dialog box appears. Select the port to test from the tree-view
