Boot for the Fibre Channel Protocol User Manual

P010096-01A Rev. A

4. Emulex BIOS Utility

Configure Boot Devices

1420

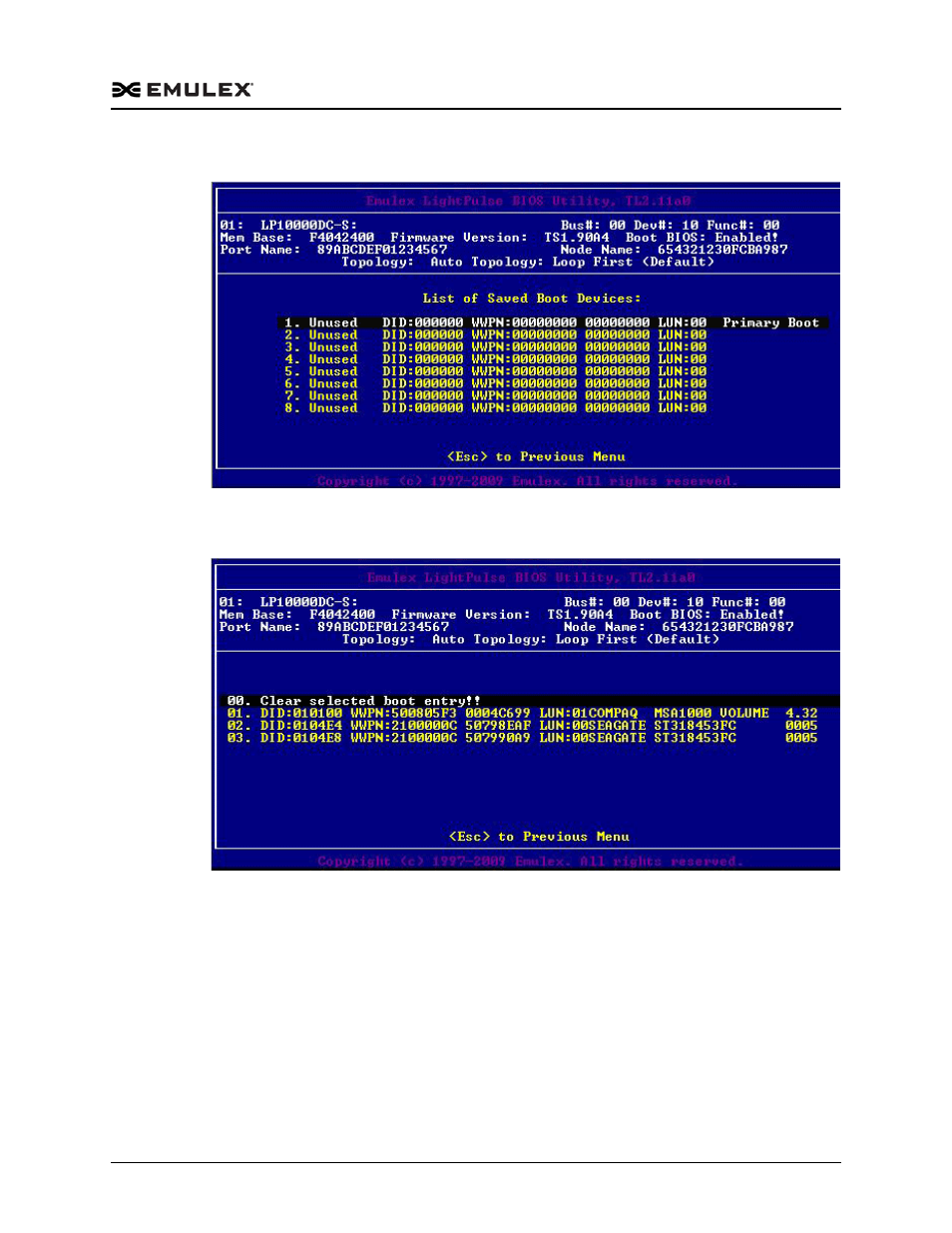

Figure 4-4 List of Saved Boot Devices Screen

2. Select a boot entry. A screen similar to Figure 4-5 is displayed.

Figure 4-5 Device Selection List Example (Array) Screen

Note: To minimize the amount of time needed to locate the boot device, Emulex

recommends that you select the drive with the lowest ALPA as the boot

device when connected to devices on a FC arbitrated loop.

3. Select <00> to clear the selected boot entry, or select a device to configure booting

by WWPN or DID.
