Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
Appendix H. Configuring PXE Boot for NIC on Dell OCe14000-based Systems
Setting Up a PXE Bootable Network
1795
2. Select the partition you want to configure and press . The Configure
Partition screen appears.

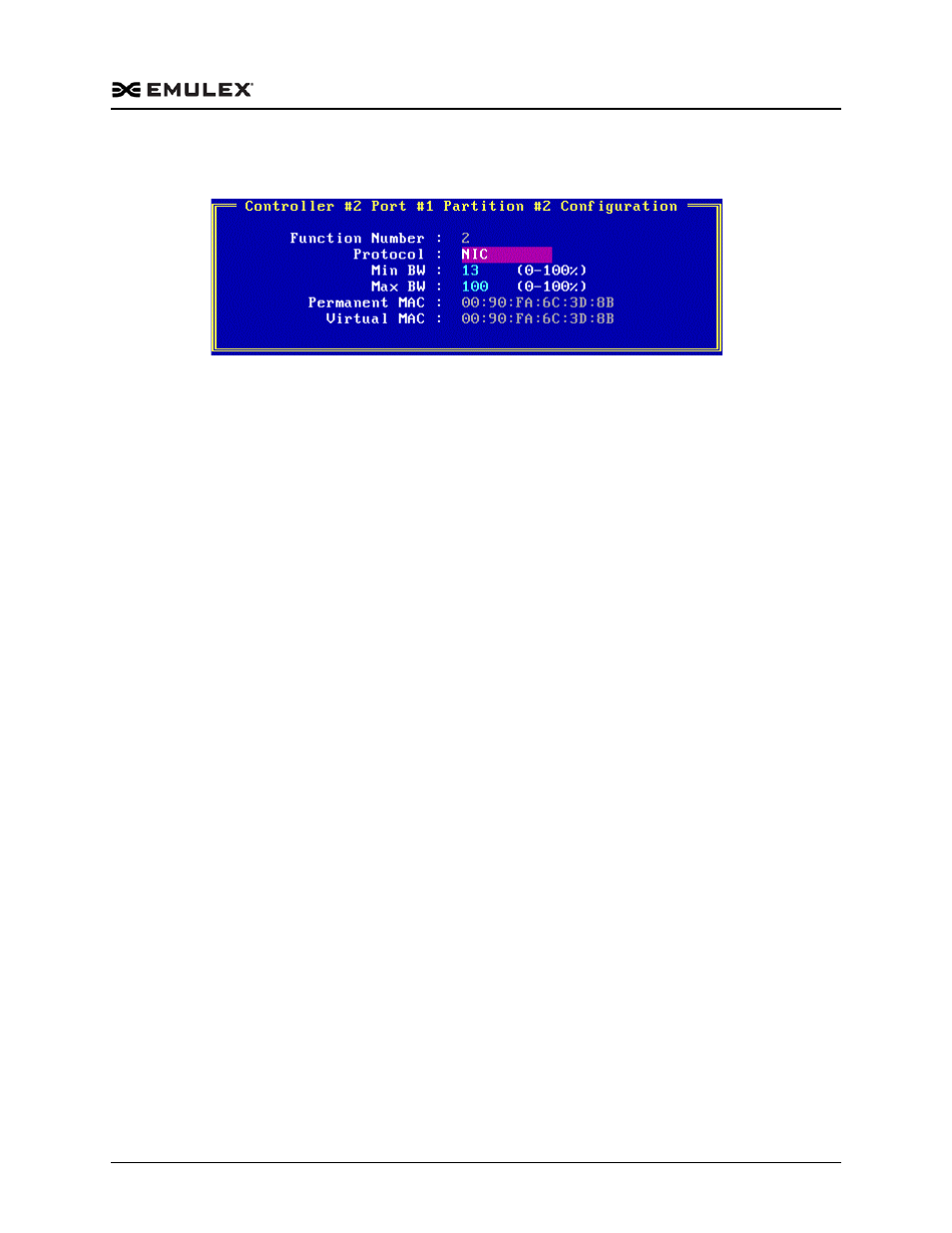

Figure H-6 Configure Partition Screen
3. From the Configure Partition screen, you can perform the following tasks:

View the function number.

Select the protocol for each function, except for PF #0 and PF #1.

Configure the minimum and maximum bandwidth for each channel

View the permanent and virtual MAC addresses.
Selecting the Protocol
This option specifies a list of available protocols that can be configured on the adapter.
Depending on the protocols for which the adapter is licensed, one of the following
selections appears:

NIC

iSCSI

FCoE
Note: The iSCSI and FCoE personalities are enabled on one function per
adapter port and include NIC functionality on the other enabled
functions. There can be only one storage protocol on each port.

None – the “None” selection allows you to disable that particular function (0–7).
The menu only displays the available personalities, including both free and licensed
personalities.
To select the protocol:
1. From the Configure Partition screen, use the left or right arrow keys to select the
desired protocol.

NIC

iSCSI

FCoE

None
2. Press to save.
