OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
FC/FCoE
157
Checkboxes next to the host and adapter entries are used to select or deselect an
entry. Checking an adapter selects or removes that adapter; checking a host
removes or selects all eligible adapters for that host.

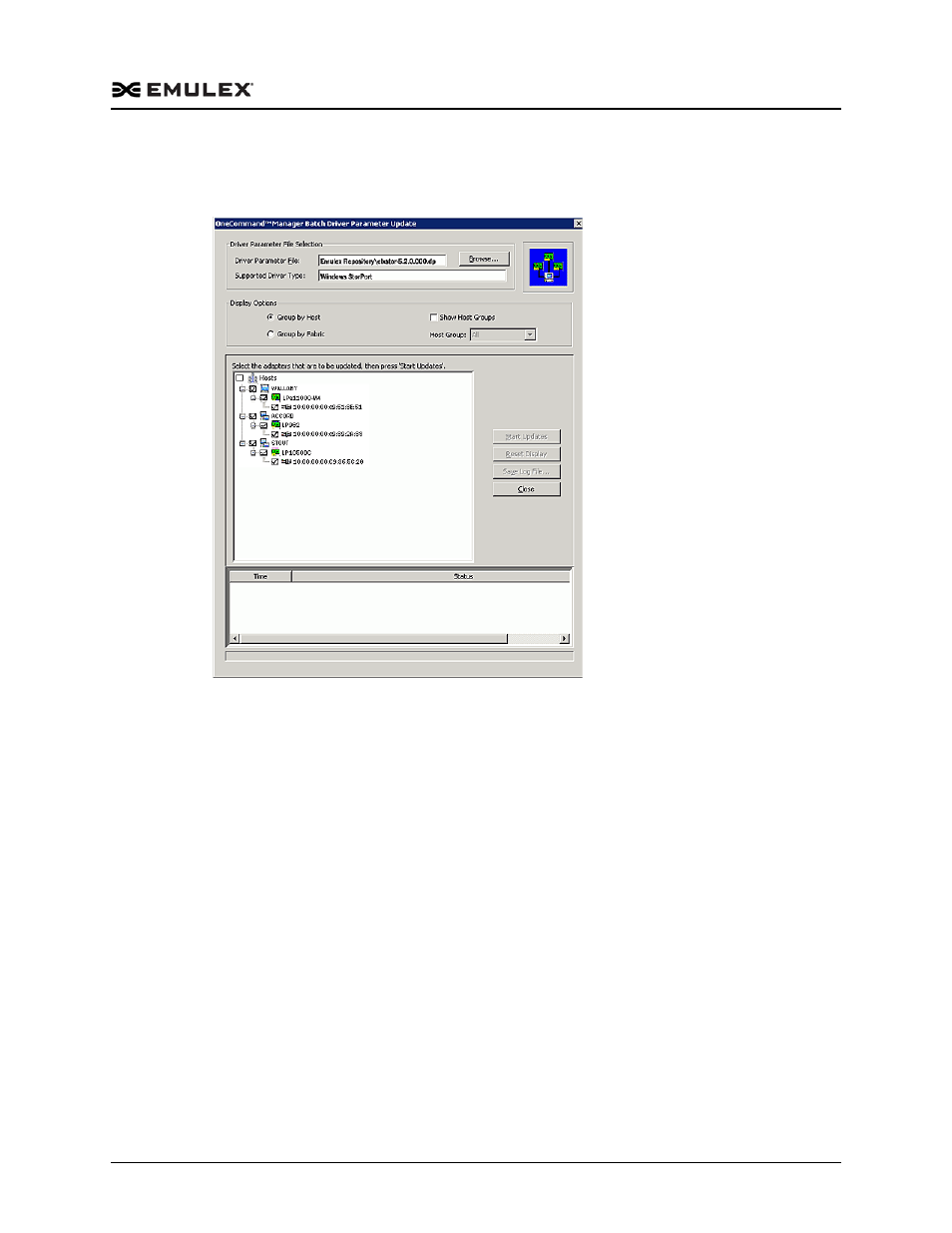

Figure 8-30 Batch Driver Parameters Update Dialog Box
4. Make your selections and click Start Updates. The OneCommand Manager
application Batch Driver Parameter Update dialog box shows the current status of
the update. When the update completes, a final summary shows the number of
adapters that were successfully processed, and the number of adapters for which
one or more parameter updates failed.
5. If you want, click Save Log File to save a report of the update.
Configuring FCoE Initialization Protocol (FIP)
The FIP tab enables you to configure FIP for FCoE ports.
To configure FIP:
1. From the discovery-tree, select the FCoE adapter port whose FIP properties you
want to configure.
2. Select the FIP tab.
